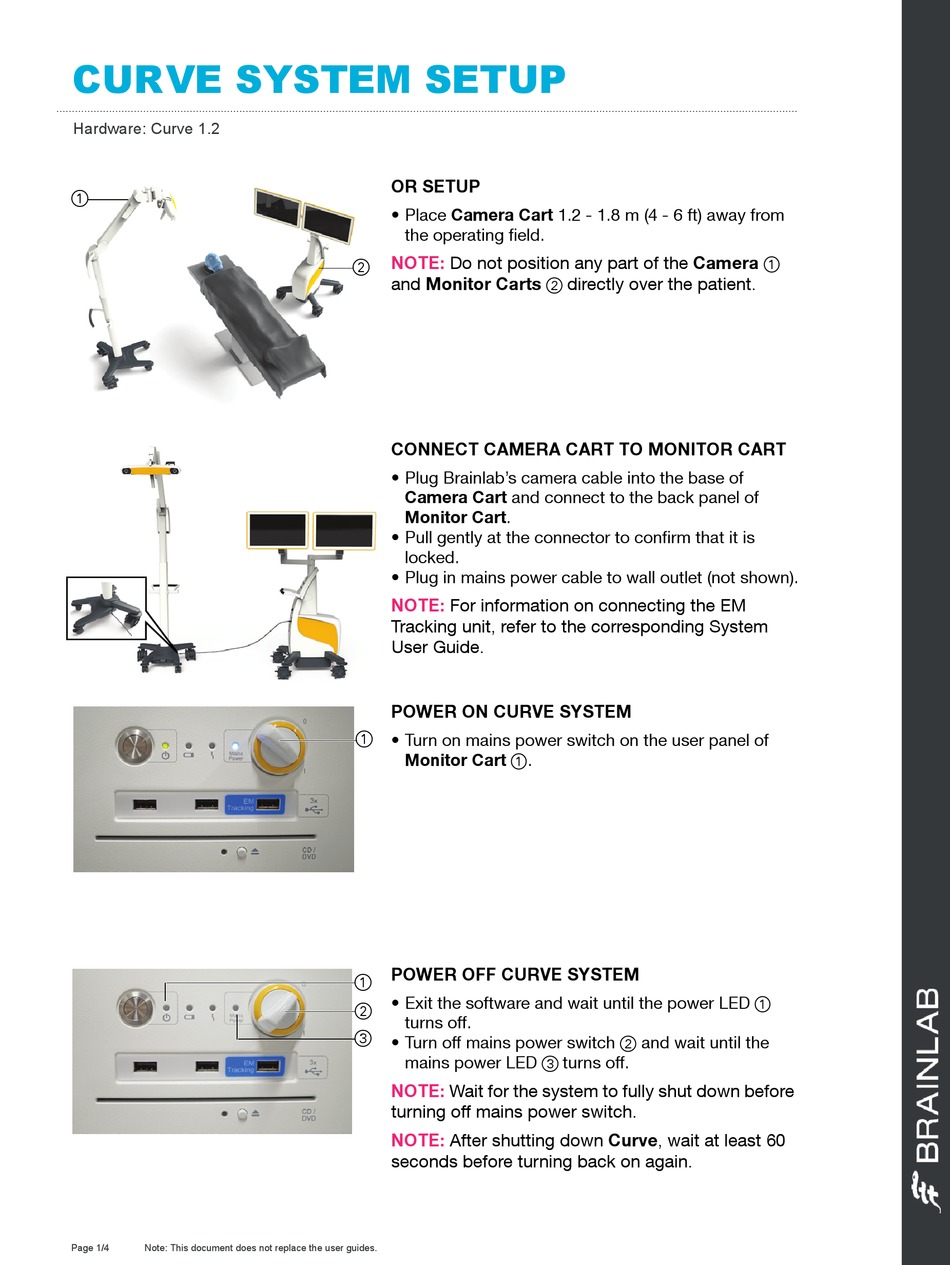

CURVE SYSTEM SETUP
...............................................................................................................................................................................................................................................

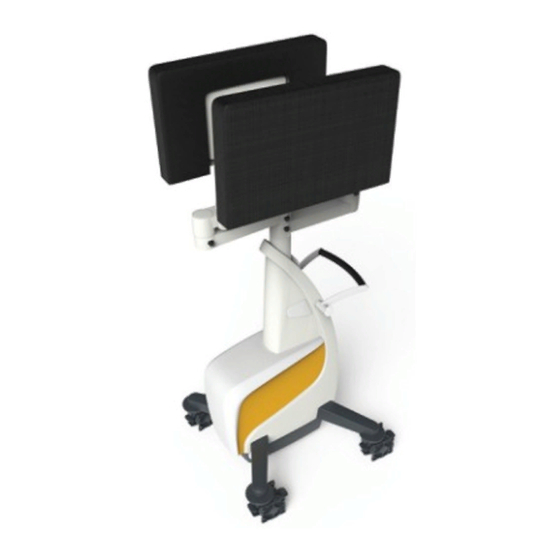

Hardware: Curve 1.2
a
Page 1/4
Note: This document does not replace the user guides.
OR SETUP
• Place Camera Cart 1.2 - 1.8 m (4 - 6 ft) away from
the operating field.
NOTE:
Do not position any part of the Camera a
s
and Monitor Carts s directly over the patient.
CONNECT CAMERA CART TO MONITOR CART
• Plug Brainlab's camera cable into the base of
Camera Cart and connect to the back panel of
Monitor Cart.
• Pull gently at the connector to confirm that it is
locked.
• Plug in mains power cable to wall outlet (not shown).
NOTE:
For information on connecting the EM
Tracking unit, refer to the corresponding System
User Guide.
POWER ON CURVE SYSTEM
a
• Turn on mains power switch on the user panel of
Monitor Cart a.
POWER OFF CURVE SYSTEM
a
• Exit the software and wait until the power LED a
s
turns off.
d
• Turn off mains power switch s and wait until the
mains power LED d turns off.
NOTE:
Wait for the system to fully shut down before
turning off mains power switch.
NOTE:
After shutting down Curve, wait at least 60
seconds before turning back on again.
