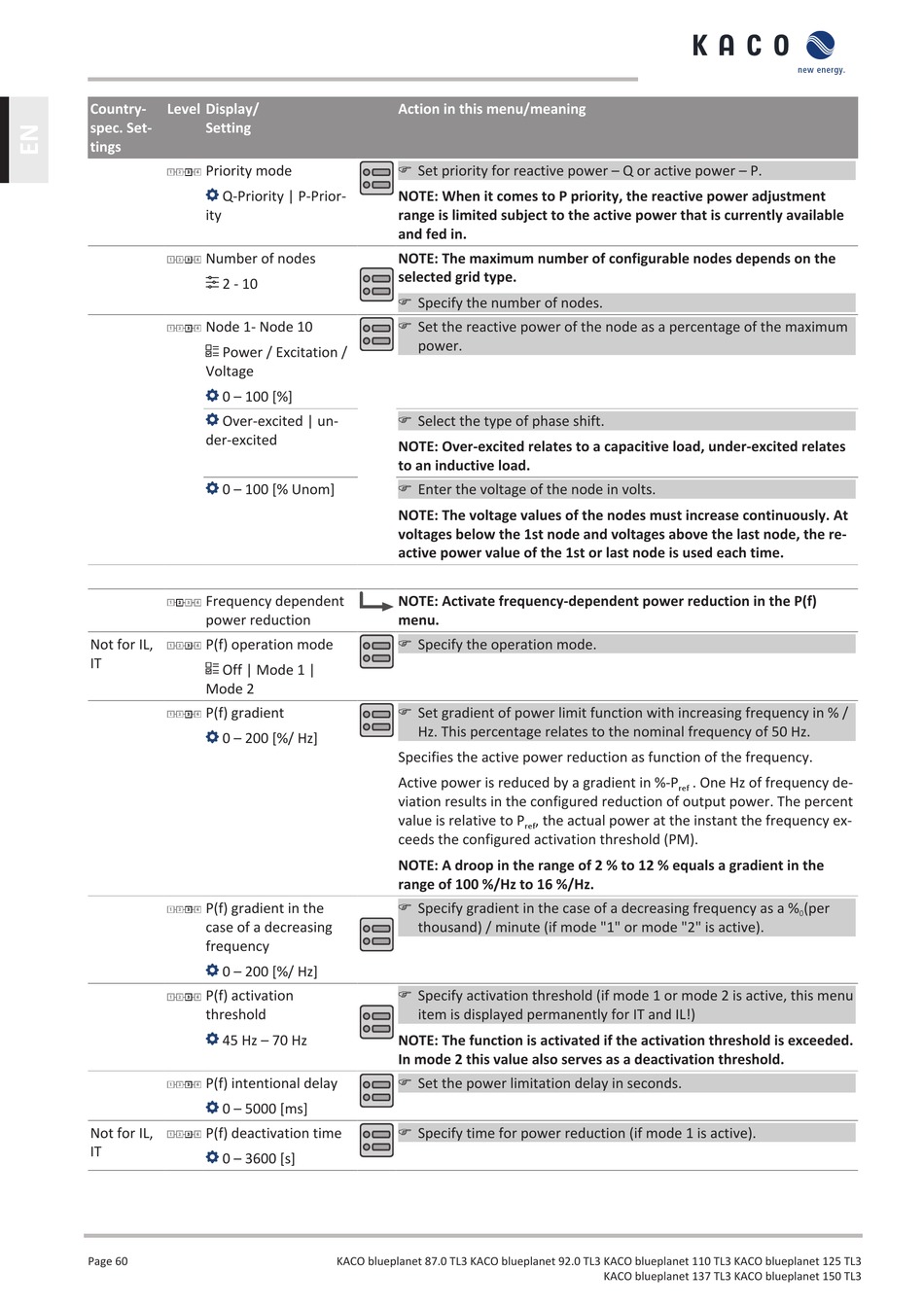

Kaco blueplanet 87.0 TL3 Manual page 60

Country- Level Display/
spec. Set- Setting
tings
Priority mode
1 2 3 4 4
Q-Priority | P-Prior-
ity
Number of nodes
1 2 3 4 4
2 - 10
Node 1- Node 10
4
1 2 3 4
Power / Excitation /
Voltage
0 – 100 [%]
Over-excited | un-
der-excited
0 – 100 [% Unom]
Frequency dependent
1 2 3 4 4
power reduction
Not for IL, P(f) operation mode
1 2 3 4 4
IT
Off | Mode 1 |
Mode 2
P(f) gradient
4
1 2 3 4
0 – 200 [%/ Hz]
P(f) gradient in the
1 2 3 4 4
case of a decreasing
frequency
0 – 200 [%/ Hz]
P(f) activation
1 2 3 4 4
threshold
45 Hz – 70 Hz
P(f) intentional delay
1 2 3 4 4
0 – 5000 [ms]
Not for IL, P(f) deactivation time
1 2 3 4 4
IT
0 – 3600 [s]
Page 60
Action in this menu/meaning
F Set priority for reactive power – Q or active power – P.
NOTE: When it comes to P priority, the reactive power adjustment
range is limited subject to the active power that is currently available
and fed in.
NOTE: The maximum number of configurable nodes depends on the
selected grid type.
F Specify the number of nodes.
F Set the reactive power of the node as a percentage of the maximum
power.
F Select the type of phase shift.
NOTE: Over-excited relates to a capacitive load, under-excited relates
to an inductive load.
F Enter the voltage of the node in volts.
NOTE: The voltage values of the nodes must increase continuously. At
voltages below the 1st node and voltages above the last node, the re-
active power value of the 1st or last node is used each time.
NOTE: Activate frequency-dependent power reduction in the P(f)
menu.
F Specify the operation mode.
F Set gradient of power limit function with increasing frequency in % /
Hz. This percentage relates to the nominal frequency of 50 Hz.
Specifies the active power reduction as function of the frequency.
Active power is reduced by a gradient in %-P
viation results in the configured reduction of output power. The percent
value is relative to P
ceeds the configured activation threshold (PM).
NOTE: A droop in the range of 2 % to 12 % equals a gradient in the
range of 100 %/Hz to 16 %/Hz.
F Specify gradient in the case of a decreasing frequency as a %
thousand) / minute (if mode "1" or mode "2" is active).
F Specify activation threshold (if mode 1 or mode 2 is active, this menu
item is displayed permanently for IT and IL!)
NOTE: The function is activated if the activation threshold is exceeded.
In mode 2 this value also serves as a deactivation threshold.
F Set the power limitation delay in seconds.
F Specify time for power reduction (if mode 1 is active).
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3
. One Hz of frequency de-
ref
, the actual power at the instant the frequency ex-
ref
KACO blueplanet 137 TL3 KACO blueplanet 150 TL3
(per
0
