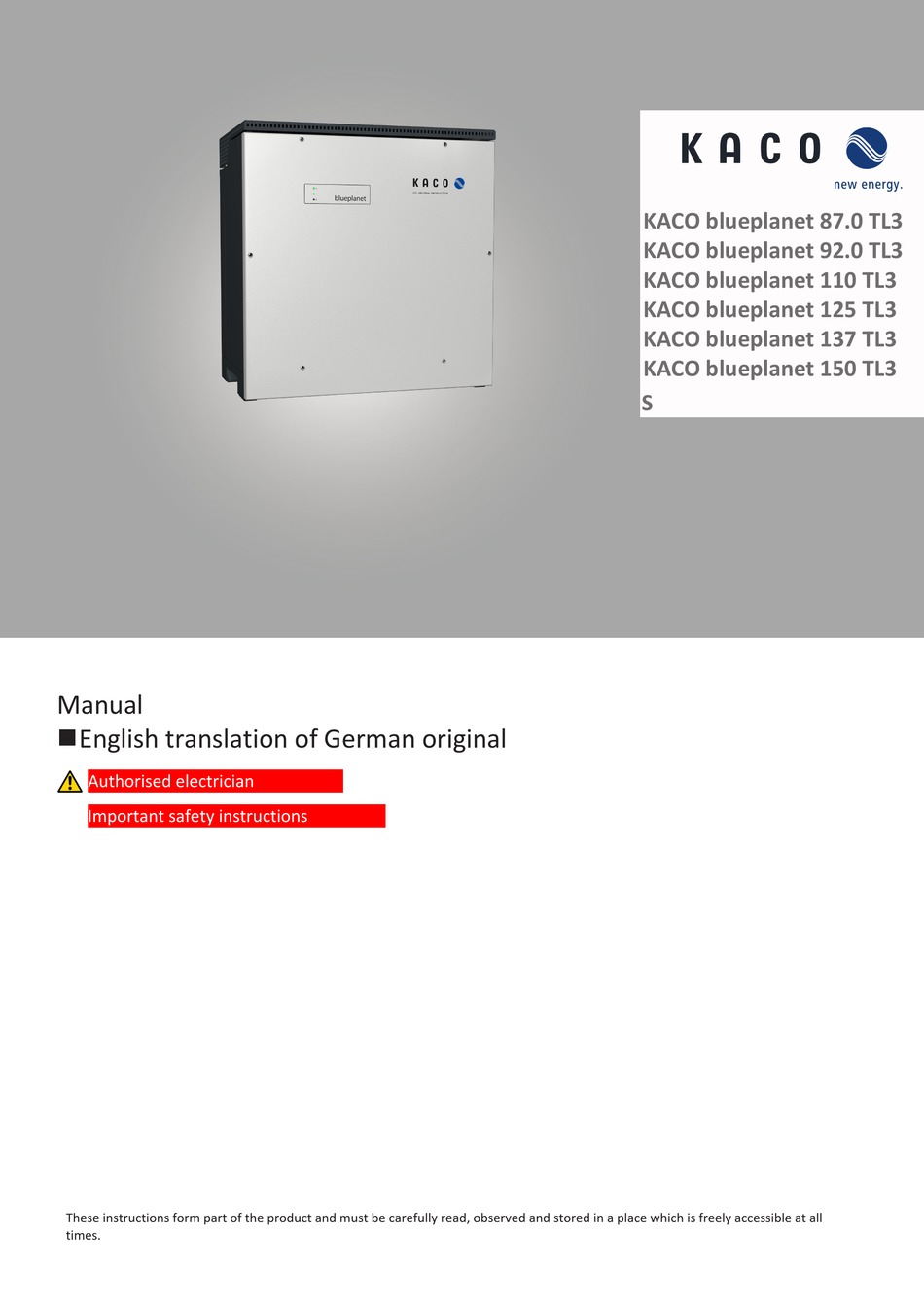

Manual
nEnglish translation of German original
Authorised electrician
Important safety instructions
These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all
times.

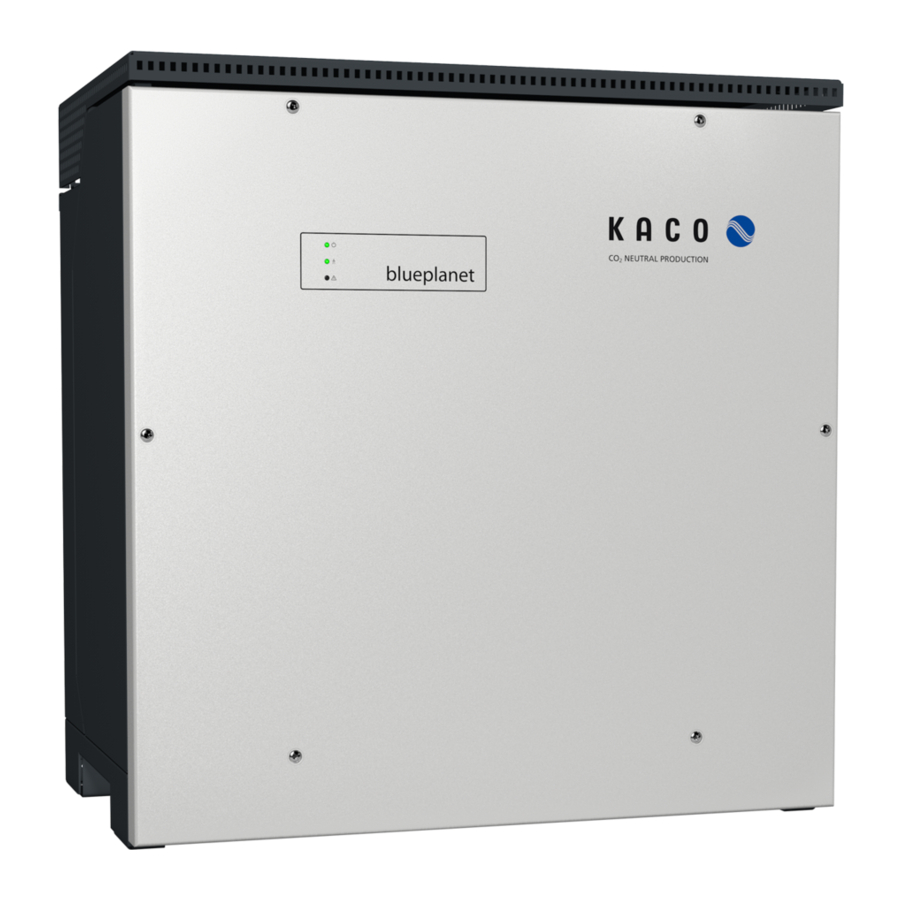

KACO blueplanet 87.0 TL3
KACO blueplanet 92.0 TL3
KACO blueplanet 110 TL3
KACO blueplanet 125 TL3
KACO blueplanet 137 TL3
KACO blueplanet 150 TL3
S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the blueplanet 87.0 TL3 and is the answer not in the manual?

Questions and answers

Related Manuals for Kaco blueplanet 87.0 TL3

Summary of Contents for Kaco blueplanet 87.0 TL3

  • Page 1 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3 Manual nEnglish translation of German original Authorised electrician Important safety instructions These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all...
  • Page 2 Legal provisions The information contained in this document is the property of KACO new energie GmbH. Publication, in whole or in part, requires the written permission of KACO new energy GmbH. KACO warranty For current warranty conditions contact your system integrator.

  • Page 3: Table Of Contents

    Operating Instructions Photovoltaic feed-in inverter Contents General information............ 4 Start-up options ............  34 About this document.......... 4 Configuration and operation .......... 41 Layout of Instructions.......... 4 Initial start-up ............  41 Identification .............  5 Controls..............  41 Warnings on the device.......... 6 User interface ............

  • Page 4: General Information

    1.2.1 Symbols used General hazard Fire and risk of explosion Electrical voltage Risk of burns Page 4 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 5: Identification

    CAN/CSA Std. C22.2 No. 62109-2 Fig. 1: Name plate ž Disposal information ž Certification marking, CE marking. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 5 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 6: Warnings On The Device

    ž Knowledge of applicable standards and directives ž Knowledge and adherence to this document with all safety notices. Page 6 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 7: Safety

    ž When working on the PV generator, it is also necessary to switch off the DC voltage with the external DC isolator switch (e.g. at the string combiner or the KACO DC switchbox) in addition to disconnecting the PV generator from the grid.

  • Page 8: Protection Features

    250V. Page 8 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 9: Description Of The Unit

    The device features two switched Ethernet ports to enable the user to, for example, connect several devices in series if the user prefers a linear topology. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 9...

  • Page 10: System Layout

    Digital inputs You can extend the unit with additional digital inputs by means of an extension module (available from KACO customer service). This can be used to connect a ripple control receiver or a protective shutdown system.
  • Page 11 Grid connection point The clean PV-current is made available at the grid connec- tion point. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 11 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 12: Technical Data

    45 - 65 Hz Reactive power 0 - 100 % Snom cos phi 1 - 0.3 ind/cap Page 12 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 13: General Data

    719 mm x 699 mm x 460 mm Weight 78.2 kg Certifications Overview: see homepage, download area KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 13 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 14: Environmental Data

    RS485 inverter overvoltage protection kit 1001887 PID connection set 1001888 WLAN adapter, Digitus 150N micro 3013222 Page 14 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 15: Transportation And Delivery

    Torx Outer contour Slot Tab. 2: Key and description of tool codes Fig. 7: Form pattern KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 15 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 16: Assembly And Preparation

    ž Must be flame resistant ž Minimum clearances to be observed during installation: [See figure 15] [} Page 18] Page 16 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 17: Unpacking The Unit

    5 Remove the top side section and base from the device. » If the unit is in the correct installation position: Proceed with the installation of the mount. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 17...

  • Page 18: Fastening The Mount

    2 Mark the positions of the drill holes using the slot in the mount. Page 18 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 19: Installing And Securing The Device

    2 Fit the device onto the upper mount by means of the mounting bracket. Fit the device onto the lower mounting bracket in full so that the device sits flush with its rear side on the mount ( [See figure 15] [} Page 18]). KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 19...
  • Page 20 Prior to installation, check the inner area for condensation and if necessary, allow it to dry sufficiently before installation. › Immediately remove any moisture from the housing. Page 20 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 21: Installation

    DC connection point AC overvoltage protection base DC overvoltage protection AC earthing bolt PID connection point KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 21 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 22: Making The Electrical Connection

    (3x) 5 - 10 mm Torque for cable fitting 2.5 Nm Ethernet connection type RJ45 Page 22 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 23: Connecting The Device To The Power Grid

    AL/CU washers. Otherwise, the aluminium may be destroyed by the copper busbars in the presence of electrolytes (e.g. condensate). KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 23...

  • Page 24: Connect Pv Generator To Device

    › Observe limit values in accordance with the technical data. Page 24 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 25 AL/CU washers. Otherwise, the aluminium may be destroyed by the copper busbars in the presence of electrolytes (e.g. condensate). KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 25...

  • Page 26: Inserting The Overvoltage Protection

    3 Remove SPD monitoring jumper for automatic monitoring. SPD monitoring jumper » Proceed with the installation of the device. Page 26 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 27: Establishing Additional Equipotential Bonding

    Depending on the local installation specifications, it may be necessary to earth the device with a second ground connection. To this end, the threaded bolt on the underside of the device can be used. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 27...

  • Page 28: Connecting The Interfaces

    (Start-up via cable connection [See sec- tion 8.4.2} Page 37]) RS485 – standard RS485 – Connection for string combiner Page 28 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 29 Li2YCY (twisted pair) grey for dry and damp indoor spaces, 2 x 2 x 0.5 mm² KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 29 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 30 7 After commissioning: Configure the external Overvoltage protection Powador-protect in the menu entry Properties / Functions Features / Functions. Page 30 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 31: Sealing The Connection Area

    » Put the device into operation. Fig. 34: Closing the housing cover Housing cover Screws KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 31 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 32: Commissioning

    F Attach the supplied safety sticker next to the name plate on the device housing where it is clearly visible. Fig. 36: Safety label DRM 0 for Aus- tralia Page 32 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 33: Network Topologies

    This configuration is shown as an example in segments 1 and M. As can be seen in the figure, a string combiner is assigned to each KACO device. In terms of communication, these are coupled in directly to the device via an RS485 cable (green cable). MODBUS RTU is used as the communication protocol for this purpose.

  • Page 34: Start-Up Options

    » Pressing the Next button will take you to the next installation step. Fig. 39: Menu item:Configuration via web user interface [See sec- tion 9.4.2} Page 45] Page 34 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 35 The Cloud and portal configuration page is not currently supported. This will be enabled in a subsequent version of the firmware. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 35 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 36 ž USB WiFi stick (KACO accessory, type: WLAN adapter Digitus 150N micro article no.: 3013222) Page 36 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 37 ž Ethernet cable (uncrossed patch cable) Establishing a connection to the KACO device 1 The device must be opened in order to connect the Ethernet cable! For safety reasons, KACO therefore recommends establishing a connection via WiFi. 2 The device's communication circuit board has 3 Ethernet ports that can be used: KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3...
  • Page 38 ž A notebook that is logged into the external network. ž Ethernet cable (uncrossed patch cable) Page 38 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 39 Fig. 51: Start-up via Segment Controller Scope of application The network infrastructure already exists. All of the KACO devices in the segment can be reached via Ethernet using a Seg- ment Controller. NOTE: When multiple Segment Controllers are present, keep in mind that the Segment Controllers are not connected to one another via the network during start-up.
  • Page 40 Scope of application The network infrastructure is available in full. All of the KACO devices in the segments can be reached via Ethernet using the Segment Controller assigned to them. All Segment Controllers are monitored by a central Plant Controller.

  • Page 41: Configuration And Operation

    (operating unit) and back end (control unit) is faulty, or interrupted. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 41 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 42: User Interface

    Basic layout - 3rd tab Current measurement values with export function Tab. 4: Description of the areas Page 42 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 43 Enables selection of functions in relation to the parameter selected. Tab. 6: Description of the areas KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 43 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 44: Menu Structure

    If the other device already had protection and the password for the new configura- tion is different, then the new configuration will be rejected. Page 44 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 45 4 Obtain NTP server settings from DHCP. 5 Specify the temperature unit. 6 Confirm the action field. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 45 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 46 1 Select optional nominal grid frequency. Status 2 Activate optional password protection. 3 Confirm the action field. Page 46 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 47 Dynamic grid support through fast fault current is activated in the case 10.0 of voltage events with a voltage change greater than the dead band. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 47 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 48 F Activate active grid influence by application of a frequency. mode active Off | Page 48 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 49 45 – 65 [Hz] / & Max. conn. frequency after grid mon. 45 – 65 [Hz] KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 49 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 50 2 Activate optional password protection. 0 – 120000 [ms] 3 Confirm the action field. Password protection Status Page 50 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 51 Input screens for configuring the interfaces. Network Opportunity to configure the installed network. IP Settings NOTE: Parameterization of network access. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 51 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 52 User-defined 1-4: The device attempts to log on via a user-defined portal that you set up subsequently. Page 52 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 53 Specifies the timeout period until the inverter reverts to fall back power in case of loss of communication. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 53 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 54 2 Activate optional password protection. Status 3 Confirm the action field. Q constant NOTE: Define the Q constant. Page 54 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 55 2 Maximum change in the reactive power %Smax/min in the event of a change to under-excited mode. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 55 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 56 F Enter the minimum cos ϕ factor for quadrants 1 and 4. Page 56 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 57 NOTE: The function is activated if the activation threshold is exceeded. In mode 2 this value also serves as a deactivation threshold. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 57 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 58 Page 58 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 59 NOTE: Up to 4 characteristic curves can be configured independently and one of them can be activated for regulation each time. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 59 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 60 1 Enter the fallback time in seconds. 3-10000000 [s] 2 Activate the action field. Page 60 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 61 F Specify the time period between 2 log data recordings. User logging interval 1 | 5 | 10 | 15 [minutes] KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 61 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 62 2 Specify the start and end time for the update. 3 Confirm the action field. Page 62 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 63: Monitoring The Device

    4 Assign a unique IP address. 5 Assign a subnet mask. 6 Assign a gateway. 7 Assign DNS server. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 63 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 64: Performing A Firmware Update

    The flashing sequence of the status LEDs on the front side of the housing provides information about each of the functions initiated by way of the multi-function buttons. Page 64 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 65 USB port. NOTE: Valid file found. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 65 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 66 Procedure in progress. Device is connec- ted to the grid. NOTE: Device is on the grid! Page 66 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 67 NOTE: Device is disconnected from the grid. NOTE: If a button is not pressed within 15 secs: Procedure aborted. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 67 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 68: Specifications

    Fig. 59: P-Q operating range for bp 137 TL3 (Q Fig. 60: Apparent power subject to the grid voltage bp 137TL3 Page 68 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 69: Power Limitation

    ž The maximum feed-in power S is thus reduced to the set value S Emax KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 69 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 70: Reactive Power Control

    Some grid connection rules insist that the agreed reactive power be started up from every operating point of the plant without a reduction in the current active power. Considering the fact that the blueplanet 87.0 TL3 to 150 TL3 has a semi- circular P-Q operating range, a reduction in the active power is required during operation at maximum active power be- cause an apparent power reserve is not available.

  • Page 71: Frt

    If a reduction in power occurs, the power is brought back up to the pre-fault level within 100ms of the voltage recovery. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 71...
  • Page 72 The result of this is that in an active operation mode, dynamic grid support by way of fast fault current Page 72 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 73: Active Power Regulation

    P(U) control reduces the active power that is fed in as a function of the grid voltage using a prescribed characteristic curve as a basis. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 73...
  • Page 74 P(f) gradient. If the frequency decreases, the power level is increased immedi- ately in line with the set P(f) gradient [See figure 75] [} Page 74]. Page 74 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 75 The function is not active for power changes defined by other grid support function such as power recovery after fault ride through, P(f), P(U). KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 75...

  • Page 76: Advanced Islanding Detection

    Enhanced island detection method The new method by KACO new energy, enhanced island detection, employs a strategy to reliably detect island formation that is based on the characteristic differences between an interconnected grid and an islanded grid, thus ensuring reliable fast detection and prevention of false tripping.

  • Page 77: Maintenance And Troubleshooting

    › Allow the heat sinks at least 10 minutes to cool down before cleaning. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 77 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 78: Replacing The Fan

    » Proceed with the cleaning or removal of the fans. Fastening screw Mounting clips Fans Page 78 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 79: Replacing Overvoltage Protection

    2 Disconnect the DC side using the external DC isolator switch. DANGER! The DC cables are still live KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 79 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 80: Disconnecting Connections

    › Check whether the DC and AC voltages are within the permit- able ted limits (see Technical Data) › Notify KACO Service. Page 80 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 81 The starting voltage may have been set in- correctly. › Adjust starting voltage in the Parameter menu. › No action KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 81 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 82: Fault Messages

    11.9 Troubleshooting The following table lists the possible status and fault messages that the KACO devices (PV and battery) can display by means of the LC display / web interface and the LEDs. No. Grid LED Text datenloggers HMI1 and...
  • Page 83 Notify your author- cannot be fed into. The phase experiencing ized electrician! failure is displayed. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 83 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 84 Max. 4 repetitions of AFI self-test monitoring possible in any given day. Insulation measurement PV generator’s insulation is being measured Page 84 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 85 The device has shut down because of implaus- Notify KACO Ser- ible internal measured values. vice! KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 85 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 86 Disconnect the AC supply voltage and DC supply. Wait 1 minute and switch on again. Page 86 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 87: Decommissioning And Dismantling

    2 Use the lateral openings and lift the device off the mount. » Device removed. Proceed with the packaging process. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 87 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 88: Packaging The Unit

    F Store the device at a dry location, in accordance with the ambient temperature range Environmental data [See sec- tion 4.3} Page 14]. Page 88 KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 89: Disposal

    Packaging: Ensure that the transport packaging is disposed of properly. KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 89 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...

  • Page 90: Service And Warranty

    Service and warranty If you need help solving a technical problem with one of our KACO products, please contact our service hotline. Please have the following information ready so that we can help you quickly and efficiently: ž Device name / serial number ž...

  • Page 91: Appendix

    Neckarsulm, 29.06.2019 KACO new energy GmbH p.p. Matthias Haag Management team for technology / CTO KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3 Page 91 KACO blueplanet 137 TL3 KACO blueplanet 150 TL3...
  • Page 92 Carl-Zeiss-Strasse 1 · 74172 Neckarsulm · Germany · Tel. +49 7132 3818-0 · Fax. +49 7132 3818-703 · info@kaco-newenergy.de · www.kaco-newenergy.de...

This manual is also suitable for:
