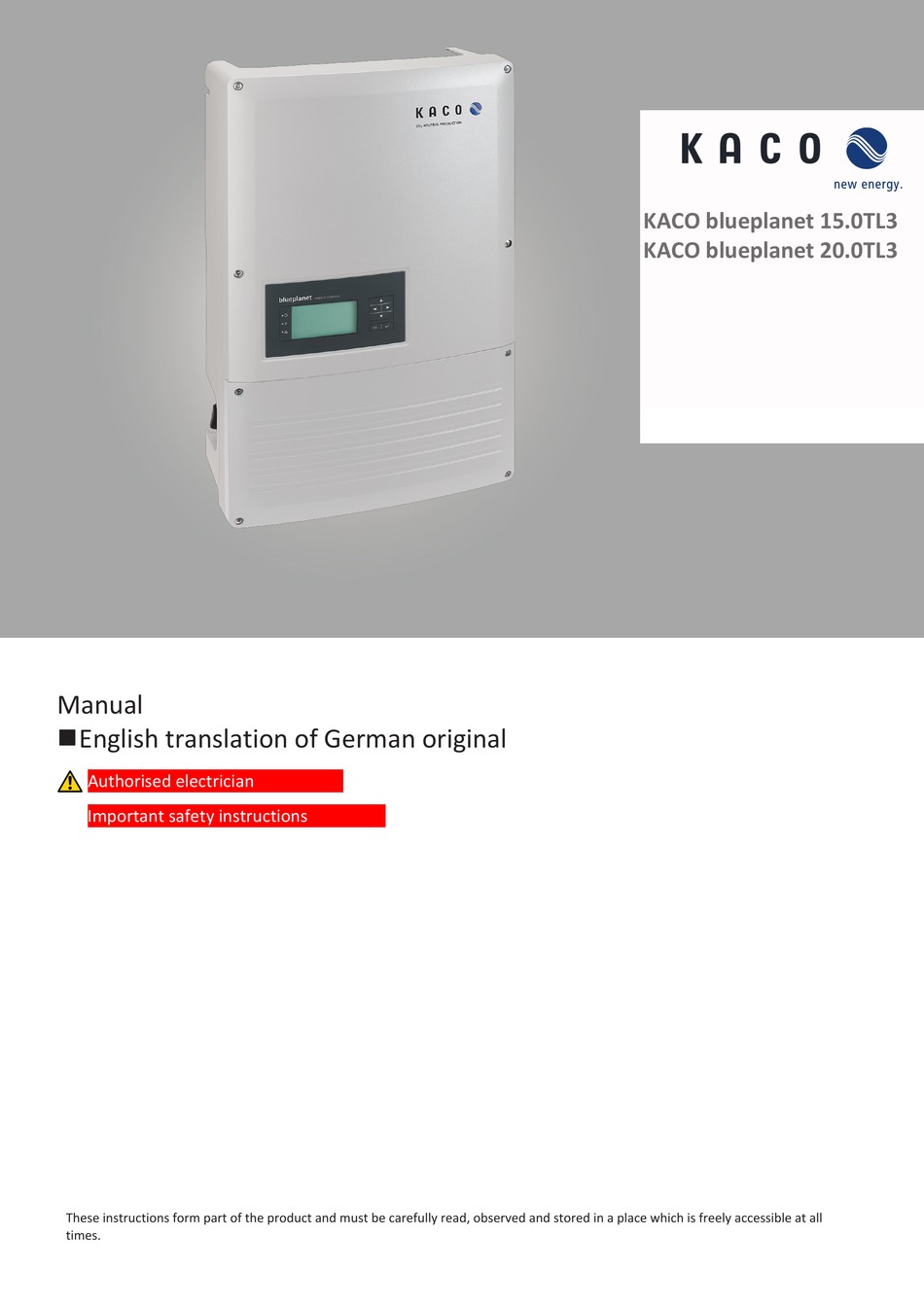

Manual
nEnglish translation of German original
Authorised electrician
Important safety instructions
These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all
times.

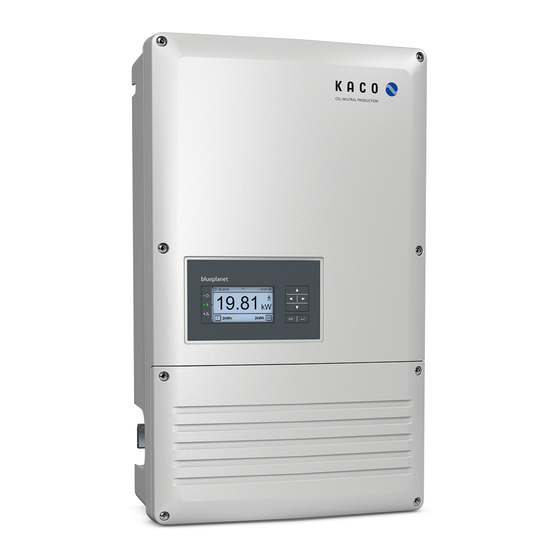

KACO blueplanet 15.0TL3
KACO blueplanet 20.0TL3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the blueplanet 15.0TL3 and is the answer not in the manual?

Questions and answers

Related Manuals for Kaco blueplanet 15.0TL3

Summary of Contents for Kaco blueplanet 15.0TL3

  • Page 1 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Manual nEnglish translation of German original Authorised electrician Important safety instructions These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all...
  • Page 2 Legal provisions The information contained in this document is the property of KACO new energy GmbH. Publication, in whole or in part, requires the written permission of KACO new energy GmbH. KACO warranty For current warranty conditions contact your system integrator.

  • Page 3: Table Of Contents

    Manual Photovoltaic feed-in inverter Contents General information............ 4 Configuration and operation .......... 33 About this document.......... 4 Initial start-up ............  33 More information............ 4 Controls..............  33 Layout of Instructions.......... 5 User interface ............  35 Identification .............  6 Menu structure ............  36 Warnings on the device..........

  • Page 4: General Information

    Storing the documents These instructions and other documents must be stored near the system and be available at all times. ž The current version of the operating Instructions can be downloaded from www.kaco-newenergy.com. English translation of German original This document has been produced in several languages. The German-language version is the original version. All other language versions are translations of the original version.

  • Page 5: Layout Of Instructions

    Information that is important for a specific topic or objective, but that is not safety-relevant. 1.3.4 Symbols for instructions ↻ Prerequisite for use 1 Carry out the next step 2 Additional action sequence ð Interim result of the action » End result KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 5...

  • Page 6: Identification

    Identification KACO blueplanet 20.0 TL3 M2 WM OD IIK0 You will find the name plate with the following data for service and other require- Part number 1001723 Serial number 20.0TL01XXXXXX Year Q4 / 17 KACO new energy ments specific to installation on the right side panel of the product: Carl-Zeiss-Straße 1...

  • Page 7: Safety

    The device is intended for indoor and outdoor applications and may only be used in countries for which it has been ap- proved or for which it has been released by KACO new energy and the grid operator. Country...

  • Page 8: Protection Features

    IEC 60364-6 6.4.3.3 describes two options for this case. The first option is to disconnect devices with an overvoltage conductor or, if this is not practicable, then the test voltage can be reduced to 250V. Page 8 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 9: Description Of The Device

    The energy that is provided by the PV system can be put to use directly by the appliances that are connected in your home. The potential-free contact can switch larger appliances (e.g. air conditioning units) on and off with the Priwatt function activated. This requires an external power supply and an external load relay. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 9...
  • Page 10 Digital inputs You can extend the unit with additional digital inputs by means of an extension module (available from KACO customer service). This can be used to connect a ripple control receiver or a protective shutdown system.

  • Page 11: System Layout

    The reference counter is to be specified and installed by the power supply company. This measures the amount of en- ergy drawn. DC isolator switch Use the DC isolator switch to disconnect the device from the PV generator. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 11...

  • Page 12: Technical Data

    ISCmax of the inverter under all foreseeable conditions. In no condition the design may result in a greater short cir- cuit current than ISCmax of the inverter.Designing the PV generator [See section 7.6.4} Page 24]. Page 12 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 13: General Data

    Installation distance from coast 1001674) 1001673) Ambient temperature -25 °C - +60 °C Power derating from 50 °C 40 °C Protection rating (KACO installation loca- IP65 tion) Humidity range (non-condensing) [%] 0 to 95 % KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 13...

  • Page 14: Transportation And Delivery

    Code (s) Shape of the connector Tightening torque External hexagon Spanner size or number Internal hexagon Torx Outer contour Slot Fig. 7: Form pattern Tab. 2: Key and description of tool codes Page 14 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 15: Assembly And Preparation

    ž Must be accessible for installation and maintenance ž Must be made out of heat-resistant material (up to 90 °C ) ž Must be flame resistant ž Minimum clearances to be observed during installation: [See figure 13] [} Page 17] KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 15...

  • Page 16: Unpacking The Device

    3 Remove installation material and documentation. 4 Reach behind the housing and slide the device to the side and out of the carton. 5 Remove upper and lower protective packaging from housing. Page 16 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 17: Fastening The Mount

    3 Fix the mount to the wall using suitable mounting fixtures from the mounting kit. NOTE: Make sure that the mount is oriented correctly. » Proceed with the installation of the device. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 17...

  • Page 18: Installing And Securing The Device

    1 Nm] [See figure 12] [} Page 17]. NOTE: Alternatively: At this point, the screw described above can be replaced by a special screw as anti-theft pro- tection. » Device is installed. Proceed with the electrical installation. Page 18 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 19 Seal off any plug-in connections and screw fittings using sealing covers. › Prior to installation, check the inner area for condensation and if necessary, allow it to dry sufficiently before installation. › Immediately remove any moisture from the housing. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 19...

  • Page 20: Installation

    The connection for the AC supply is located inside the housing. The DC input source is connected to the housing base via the solar plug connectors. Fig. 16: Connection area DC isolator switch Cable fitting (M40) for AC connection Page 20 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 21: Making The Electrical Connection

    Overvoltage protection for DC plug (integrated) VAL-MS-T1/T2 1000DC-PV-ST - 2801162 [3010608] – SPD I + VAL-MS 1000DC-PV-ST – 2800624 [23700379] – SPD II Base integrated VAL-MS/2+V-BE FM-PU40 – [2908425] – Phoenix Contact KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 21...

  • Page 22: Connecting The Device To The Power Grid

    If the type A is used, the insulation threshold must be set to greater than/equal to (≥) 200kOhm in the “Parameters” menu Menu [See section 9.4.1} Page 36]. For questions regarding the appropriate type, please contact the installer or our KACO new energy cus- tomer service.
  • Page 23 ð In addition, ensure that the PV generator has a total insulation resistance of more than 2.0 MOhm, since the device will not feed in if the insulation resistance is too low. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 23...
  • Page 24 In the expected temperature range of the PV generator, the values for the no-load-voltage and the short circuit current must never exceed the values for U and I in accordance with the technical data. dcmax scmax › Observe limit values in accordance with the technical data. Page 24 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 25 2 Connect the the DC plug connectors to the DC positive and DC negative connect- ors in pairs. » The device is connected to the PV generator. Fig. 24: Connection for DC positive and DC negative KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 25...

  • Page 26: Inserting The Overvoltage Protection

    11, 12 [normally closed contact] 11, 14 [normally open contact] There must be a current of >5mA at all times to act as corrosion protection in order to use the evaluation contact. Page 26 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 27: Creating Equipotential Bonding

    In doing so, disassembly of the circuit board may be neces- sary. All interfaces are located on the communication circuit board (HMI board) inside the housing. Ethernet Optional Optional RS485 Optional Fig. 28: Communication circuit board (HMI board) KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 27...
  • Page 28 1 Plug in an Ethernet cable at one of the two Ethernet ports on the communication circuit board. 2 Check that the connecting cable is fitted securely. 3 Tighten the cable fittings [ W_29 / 4 Nm] » Connect additional signal cables. Page 28 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 29 - Wire A (-) to wire A (-) and wire B (+) to wire B (+) - GND to GND 10 Secure cable ties. 11 Tighten the cable fittings [ W_20 / 1.5 Nm] KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 29...
  • Page 30 The digital input of the device is intended for connection of a Powador-protect. When using devices from other manufacturers or in combination with KACO inverters, interface switches as a minimum must be used for shutting down devices from other manufacturers.

  • Page 31: Sealing The Connection Area

    2 Secure the housing cover by tightening the 4 screws in a diagonally opposite se- quence [ T_30/ 10 Nm]. » The device has been mounted and installed. » Put the device into operation. Fig. 33: Closing the housing cover Screw [M6x25] Screw [M6x55] KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 31...

  • Page 32: Commissioning

    - Réseau de distribution F Attach the provided safety sticker to the outside of the device housing where it is -Panneux photovoltaïques clearly visible. Fig. 34: Safety label UTE C15-712-1 Page 32 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 33: Configuration And Operation

    The device feeds into the grid. *) The waiting period ensures that the generator voltage continuously remains above the power delivery limit of 200 V. For country-specific waiting periods see our website. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 33...
  • Page 34 ↻ You have left the desktop. The device displays the menu. F Use the up button or down button to navigate. Opening a menu item or a setting F Use the right arrow button and the Enter button. Page 34 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 35: User Interface

    In normal operation, the backlighting is switched off. As soon as you press one of the control buttons, the backlighting is activated. If no button is pressed for an adjustable period of time, the backlighting switches off again. You can also activ- ate or disable the backlighting permanently. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 35...

  • Page 36: Menu Structure

    Generator Displays the DC-side voltage, amperage and power. Grid Displays the AC-side voltage, amperage and power. Power control Displays the current value of the external power limitation by the grid operator. Page 36 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 37 » Press any button to return to the previous menu. CSV log data F Open the menu: Press the Right arrow button or Enter button. Decimal separator F Select decimal sign for export of saved operating data. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 37...
  • Page 38 2 Set the length of time without user input after which the backlight- ing of the LCD switches off. 3 Alternatively: Permanently activate or disable the backlighting by selecting "On" or "Off". Page 38 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 39 NOTE: The menu options "Write access" and "Port" are only dis- played with TCP activated. 1 Activate Modbus TCP. Write access F Allow Modbus TCP write access. Port F Set network port. Connection status Indicates the status of the network connection. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 39...
  • Page 40 On/Off Country NOTE: This option influences the country-specific operating settings of the device. Please consult KACO service for further information. 1 Enter the four-digit password using the 4-way button. The password is unit-specific. 2 Confirm the entry with the Enter button.
  • Page 41 If the value f> (slow overfrequency shutdown) is set to a value which is smaller than the value of f (maximum restart frequency) using the max. LC display, then the value of f is automatically set to the value of max. f>. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 41...
  • Page 42 Specify stage 0-3 b.) Specify stage 4-7 c.) Specify stage 8-11 d.) Spe- cify stage 12-15 4 Confirm the entry with the Enter button. Fault ride-through NOTE: The device doesn't support dynamic grid stabilization (Fault Ride-Through). Page 42 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 43 Outg. grad. (per thousand). Deact. grad. F Specify deactivation gradient in (per thousand) /minute (if mode "1" or mode "2" is active. This menu option is displayed permanently for IT and IL!). KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 43...
  • Page 44 Q(U) 10 nodes F Open the menu: Press the Right arrow button or Enter button. NOTE: More detailed information about the procedure can be found Reactive power control [See section 10.1} Page 56] Page 44 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 45 Reset the curve Number of nodes NOTE: The maximum number of configurable nodes depends on the selected grid type. 2 - 10 F Specify the number of nodes for the Q(U) characteristic curve. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 45...
  • Page 46 DC voltage. 1 Activate or disable the constant voltage controller. 2 Set value for constant voltage controller. F Set threshold value (in 1kOhm increments) at which the insulation Iso.resistor monitor reports a fault. Page 46 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 47 U< - U> F Set voltage range for the active control process. Minimum operating voltage 45 – 125.0 [% Unom] & Maximum operating voltage 45 – xxx [% Unom] Password protection Status KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 47...
  • Page 48 F Activate passive grid influence by application of a frequency. ROCOF operation mode passive Off | F Activate active grid influence by application of a frequency. ROCOF operation mode active Off | Page 48 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 49 F Set transient overvoltage protection. Overvoltage protection Transient overvoltage NOTE: Shutdown occurs within a mains cycle. protection 1 Activate optional password protection. 114.8 - 148.0 [% 2 Confirm the action field. Unom] Password protection Status KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 49...
  • Page 50 F Set priority for reactive power – Q or active power – P. Q-Priority | P-Prior- NOTE: When it comes to P priority, the reactive power adjustment range is limited subject to the active power that is currently available and fed in. Page 50 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 51 Deactivation threshold NOTE: If the 10 min mean value of the voltage falls below the de- activation threshold, then the function is disabled. 230V – 276V 1 Specify the deactivation threshold. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 51...

  • Page 52: Monitoring The Device

    F Load a set of parameters from external storage media. Transfer a set of para- meters NOTE With regard to the selection of country settings, KACO new energy attests: › that the relevant certificates are only valid if the corresponding country settings have been selected. ›...
  • Page 53 4 Save the file. NOTE Regardless of the display data selected in the “Choose view” area, an export file always contains all meas- urement data and yield data available for the selected period. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 53...

  • Page 54: Performing A Firmware Update

    Never disconnect the DC and AC power supply for or during a firmware update. › Do not remove the USB stick during the firmware update. Preparing a firmware update 1 Download the firmware update file from the KACO web site www.kaco-newenergy.com and store it on your hard disk.

  • Page 55: Access Via Modbus

    - Operation mode in the menu on the device or on the web interface. 2 If necessary, allow write access. 3 Set up the Port for access. [Default: 502] » Access via Modbus enabled. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 55...

  • Page 56: Specifications

    10.1.3 Reactive power functions The following functions for controlling the reactive power are implemented in the devices listed above: ž cos φ constant ž Q constant Page 56 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 57 (PT-1) with a time constant of Tau=200ms. The specified displacement factor may be configured in the display or via communication, via KACO RS485 protocol and MODBUS/SunSpec. If the applicable grid code requires the cos-φ response to set point by a defined gradient or settling time slower than the configured Tau=200ms, this gradient or settling time must be implemented in the plant control system.
  • Page 58 Power threshold, function is activated if limit value is exceeded. 0 – 100 [% S Lock-out power Power threshold, function is activated if limit value is undershot. 0 – 100 [% S Page 58 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 59 1 – 0.3 Reactive power of the node as a percentage of the maximum power Over-excited | under- Reactive power mode Under-excited relates to inductive load, over-ex- excited cited relates to capacitive load. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 59...

  • Page 60: Active Power Regulation

    Otherwise, the set value will be used. Irrespective of the communication protocol used, the settling time “WMaxLim_Ena” is used in order to transfer the new power value. Otherwise, the internally configured value will be used. Page 60 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 61 100%. The power limit follows the characteristic curve, a straight line between dp2 and dp3. However, because hysteresis is activated, the power limit is not increased when the voltage drops. The function is deactivated as soon as the voltage falls below dp1. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 61...
  • Page 62 With a voltage change, the active power is changed 100 – 1200000 [ms] according to a PT-1 characteristic curve with a settling time of 5 Tau. Note: The settling time is overlaid with the increasing and decreasing gradient. Page 62 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 63 Equation 1 [See figure 46] [} Page 63] defines the maximum limit with ΔP relevant to 2 [See figure 47] [} Page 63], P the current power at the time of activation and P the reference power. In the case of PV inverters from KACO, P defined as P , the current power at the time of activation.
  • Page 64 Nominal power Power reference with underfrequency: Power reference mode Power reference for power adjustment as in equation 6 and equation 7 with underfrequency for overfrequency incidents. Actual power | Nominal power Page 64 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 65 Note 2: This function is stipulated as a requirement by some domestic grid connection directives in order to prevent any negative impact on is- land detection. However, P(f) has no negative impact on KACO's en- hanced island detection. Frequency of the max-...

  • Page 66: Frt

    If a reduction in power occurs, the power is brought back up to the pre-fault level within 100 ms of the voltage returning. Page 66 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 67 For the positive and negative phase sequence voltage, Δu equates to the difference between the pre-fault voltage and the current voltage based on the reference voltage. The pre-fault voltage is calculated as a 1-min mean value. Fig. 55: Formula no. 3 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 67...
  • Page 68 Amplification factor for the negative sequence used in the calculation of quence dip the reactive current using formulae (2) and (4) Can be configured inde- pendently for drops and spikes. Constant k negative se- quence swell k 0 – 10 Page 68 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 69: Other Grid-Supporting Functions That Are Effective In The Case Of Active Power

    The device capacity of a plant can be set to the exact agreed value using the S and P settings. To en- sure that the load on the devices in the plant is uniform, we recommend distributing the performance reduction evenly across all devices. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 69...
  • Page 70 Some grid connection rules insist that the agreed reactive power be supplied from every operating point of the plant without a reduction in the actual active power. Considering the fact that all KACO TL3 inverters have a semi-circular P-Q operating range, a reduction in the active power is, however, required during operation at maximum active power be- cause an apparent power reserve is not available.

  • Page 71: Advanced Islanding Detection

    Enhanced island detection method The enhanced island detection of KACO new energy, employs a strategy to reliably detect island formation that is based on the characteristic differences between an interconnected grid and an islanded grid, thus ensuring reliable fast detec- tion and prevention of false tripping.
  • Page 72 In the event of active stage 1, the device switches to zero current mode, and re- starts the infeed after a few 100ms. At stage 2, the device has shut down and the set reconnection conditions apply. Page 72 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 73: Maintenance And Troubleshooting

    WARNING! Do not use compressed air or high-pressure cleaners! 1 Use a vacuum cleaner or a soft brush to remove dust from the fan cover and from the top of the device on a regular basis. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 73...

  • Page 74: Replacing The Fan

    The device is equipped with an axial fan. This is located in the upper section of the side panel of the housing. Replace the fan in the following circumstances: ž Heavy soiling ž A fault Page 74 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 75: Shutting Down For Maintenance / Troubleshooting

    › Comply with all safety regulations and current technical connection specifications of the responsible power supply company. NOTE: Shutdown sequence 1 Switch off the grid voltage by turning off the external circuit breakers. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 75...

  • Page 76: Overvoltage Protection

    Overvoltage module ↻ Ensure there is no AC/DC voltage present. Status indicator ↻ NOTE: Modules can be ordered from the KACO customer service team. Base 1 Unlock faulty DC modules via the upper locking latches using a screwdriver. 2 Remove faulty modules from the base.

  • Page 77: Faults

    Severe injuries or death may occur if the cables and/or terminals/busbars in the device are touched. › If a fault occurs, notify an appropriately authorized and qualified electrician or KACO new energy GmbH Service. ›...
  • Page 78 (after the start-up period is complete), the device’s hardware is probably damaged. › Contact KACO Service to test the hardware. The device is displaying Faults in the grid. The device continues to operate as normal without losses to...

  • Page 79: Fault Messages

    B = Operator’s responsibility ; E = The indicated work may only be carried out by an authorised electrician. ; K = The indic- ated work may only be carried out by a service employee of KACO new energy GmbH! 11.8...
  • Page 80 Measure the insula- high, the integrated tion resistance of the system. AC/DC-sensitive re- sidual current device has re- gistered an unduly high leakage current to the PE. Page 80 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 81 Internal communication er- Notify your authorized electrician! Check the A communication data cable. error has occurred in the internal data transmission. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 81...
  • Page 82 Grid failure undervoltage L3 Notify your authorized electrician! The voltage of a grid phase is too low; the grid cannot be fed into. The phase experiencing failure is displayed. Page 82 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 83 PowerCon- trol limit. The in- verter limits the power. Frequency-dependent P(f)/frequency-de- power reduction pendent power re- duction: When cer- tain country settings are activated, the frequency-depend- ent power reduc- tion is activated. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 83...
  • Page 84 In case of repeated occurrence: Notify your Overvoltage has volt. L2 authorized electrician! been detected on a conductor. An in- ternal protective mechanism has dis- connected the device to protect it against damage. Page 84 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 85 In case of repeated occurrence: Notify your A current that has rent L2 authorized electrician! been found on a conductor is too high. An internal protective mechan- ism has disconnec- ted the device to protect it against damage. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 85...
  • Page 86 Temperature plausibility er- Notify KACO Service! The device has shut down because of implausible internal measured values. Plausibility fault efficiency Notify KACO Service! The device has shut down because of implausible internal measured values. Page 86 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...
  • Page 87 Plausibility fault DC link Notify KACO Service! The device has shut down because of implausible internal measured values. Plausibility fault AFI module Notify KACO Service! The device has shut down because of implausible internal measured values. Plausibility fault relay Switch off the device entirely (switch off AC + The device has shut DC for min.

  • Page 88: Decommissioning And Dismantling

    6 Detach from the DC cables from the DC plug connectors and furnish with protective caps. 7 Open the cable fittings [ W_46 / W_29 / W_20]. 8 Pull the cables out of the device. Page 88 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 89: Disassembling The Device

    Prior to installation, check the inner area for condensation and if necessary, allow it to dry sufficiently before installation. ↻ Device packaged. F Store the device at a dry location, in accordance with the ambient temperature range Environmental data [See sec- tion 4.3} Page 13]. KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3 Page 89...

  • Page 90: Disposal

    Unit: Do not dispose of faulty devices or accessories together with household waste. Ensure that the old devices and any accessories are disposed of in a proper manner. Packaging: Ensure that the transport packaging is disposed of properly. Page 90 KACO blueplanet 15.0TL3 KACO blueplanet 20.0TL3...

  • Page 91: Service And Warranty

    Service and warranty If you need help solving a technical problem with one of our KACO products, please contact our service hotline. Please have the following information ready so that we can help you quickly and efficiently: ž Device name / serial number ž...

  • Page 92: Appendix

    Unauthorised modifications to the supplied devices and/or any use of the devices that is contrary to their intended use render this Declaration of Conformity null and void. This declaration of conformity is issued under the sole responsibility of KACO new energy GmbH. Page 92...
  • Page 93 Carl-Zeiss-Strasse 1 · 74172 Neckarsulm · Germany · Tel. +49 7132 3818-0 · Fax. +49 7132 3818-703 · info@kaco-newenergy.de · www.kaco-newenergy.de...
