Valcom V-AW12A Installation Manual page 9

Wall Mount Installation - V-AW12A / V-AW16A

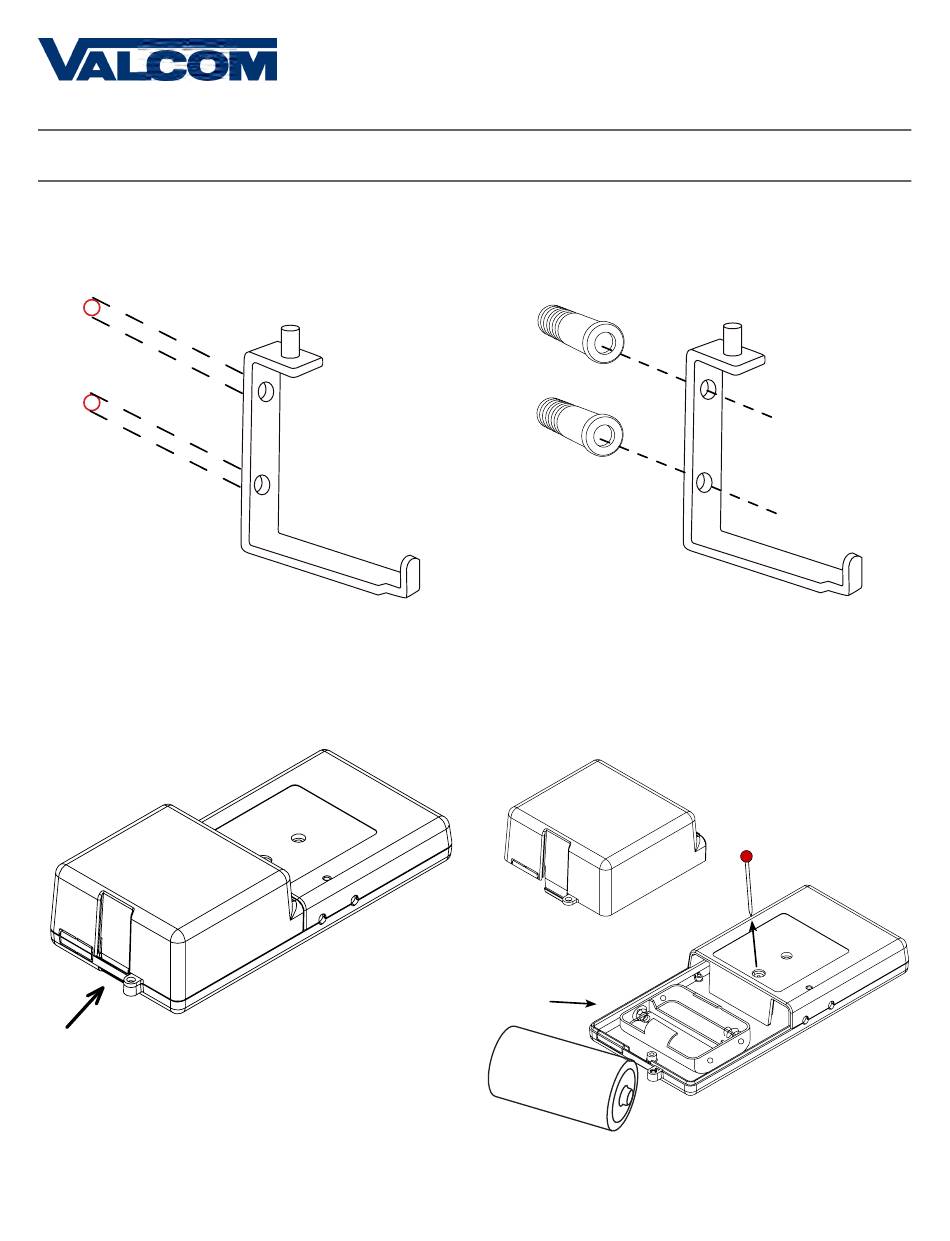

1) Use the mounting bracket, a pencil, and a level to
trace two holes on the wall, then use the 1/4 inch
drill to drill holes at the locations of the two marks.
3) On the clock movement, press the battery cover
locking tab and pull the cover away from the clock
to access the battery pack.
Later models of this clock use the same movements as the B-Model
version of the same type. For instructions on how to set up the
B-model movement, refer to the B-model section of this manual for
the same type of clock.
1 2
3 4
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
2) Place the two wall anchors into the holes, then
screw the two #10 self-tapping screws through the
bracket and into the wall anchors.
4) First remove the gearbox pin, then insert the
batteries into the clock. If the clock is within range
of a powered transmitter, the hands should begin to
move within a minute.
