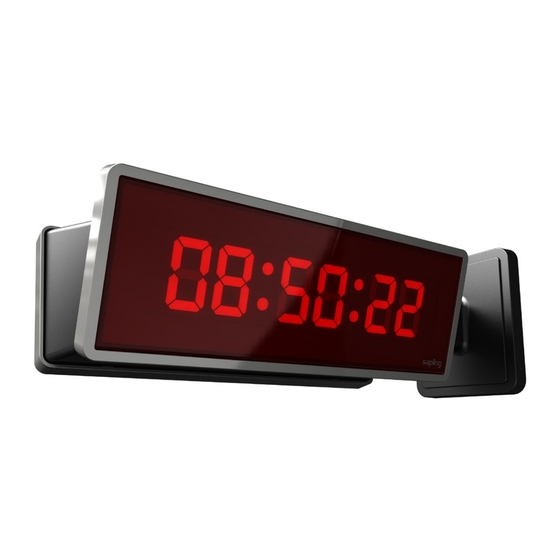

  • Page 1 Installation and Programming Manual V1.03 V-D11025A / V-D11040A Digital Clocks Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com...
  • Page 2: Table Of Contents

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com V-D11025A/V-D11040A Digital Clocks Table of Contents Table of Contents—2 Flush Mount Installation—3 Flush Mount Installation—4 Surface (Wall) Mount Installation—5 Metal Double Mount Installation—6 Plastic Surface (Wall) Mount Installation—7 Plastic Surface (Wall) Mount Installation—8...
  • Page 3: Flush Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Flush Mount Installation 1. Mount the flush mount box into the wall. 2. Connect the ground wire into the flush mount box using the tooth lockwasher and the machine screw nut (included in the kit).
  • Page 4: Flush Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Flush Mount Installation Flush Mount Picture 2.5” Figure 1 Front View: Side View Flush Mount Angled View: D3 = .28” D4 = 3.5” H = 4.65” H = 4.65”...
  • Page 5: Surface (Wall) Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Surface (Wall) Mount Installation 1. Mount the wall mount box into the double gang box using four machine screws (#6-32) included in the kit. 2. Connect the ground wire into the flush mount box using the tooth lockwasher and machine screw nut (included in the kit).
  • Page 6: Metal Double Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Metal Double Mount Installation 1. Screw hanger/mounting rod (included in the kit) into the crossbar (also included in the kit). 2. Insert wires through hanger/mounting rod. 3. Install crossbar using two (2) #6-32 screws into double gang box.
  • Page 7: Plastic Surface (Wall) Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Surface (Wall) Mount Installation...
  • Page 8: Plastic Surface (Wall) Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Surface (Wall) Mount Installation Mount Housing to Wall and/or Gang Box - To mount the housing to the wall, drive two (2) plastic anchors into the wall (not supplied in kit) and take two pan head screws (also not supplied in kit) and drive them into the plastic inserts leaving an 1/8th inch gap between the head of the screw and the wall.
  • Page 9: Plastic Double Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation...
  • Page 10: Plastic Double Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation *For metal mounting bracket: Use a wall anchor that can support 50 lbs or more with a maximum screw size of 10/1.5”...
  • Page 11: Plastic Double Mount

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation Snap and screw base to metal mounting bracket - Snap the base to the metal mounting bracket by first making contact with the lip in the upper side of the base and the metal mounting bracket. When the base has been snapped onto the bracket, take the two (2) 6-32 x 1/2”...
  • Page 12: Wiring And Jumper

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wiring Information Wiring and Jumper Settings / 220 VAC POWER / 220 VAC POWER...
  • Page 13: V-D11025A/V-D11040A Slave

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wiring Information V-D11025A/V-D11040A Slave Mode V-CCU - + -...
  • Page 14: Minute

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Interfacing with Other Systems 59 Minute Correction Description: 110 VAC/24 VAC 60 Hz is used to run the clock normally. Applying an eight (8) second reset signal from 57 minutes and 54 seconds will cause an hourly correction.
  • Page 15: Rauland

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Interfacing with Other Systems National Time/Rauland Description: 110 VAC/24 VAC 60 Hz is used to run the clock normally. Applying a 25 second reset signal when minutes equal 00 and seconds equal 00 will cause an hourly correction.
  • Page 16: Midnight Reset Or Once A Day

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Interfacing with Other Systems Rauland Digital Description: Applying a half second pulse for every minute to the Dig. Line will bring the clock to the correct time. The clock will jump to the correct time at the end of the correction pulse.
  • Page 17: Setting The Time On The Digital

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Programming Setting the Time on the Digital Clock 1. To set the time, press the top button to change the hour and/or the bottom button the set the minute.
  • Page 18 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Option 4 - Set 12/24 Hour Mode: Use the bottom button to scroll between “12 or 24”. Option 5 - Daylight Savings Time: Press the bottom button to scroll between “d”, “1”, or “2”.
  • Page 19 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Option 9 - Set the Clock Number: Use the bottom button to scroll between “001-999”. This two-step function allows the user to program the address (clock number and zone number) for the display for numeric messaging.
  • Page 20 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Option 14 - Set the Loss of Communication Alert: Use the bottom button to scroll between “01-10”. This option allows the user to set when the colons will flash after the clock loses data to indicate loss of communication.
  • Page 21 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Option 24 - Once a Day Pulse Output - Set Duration: Use the bottom button to scroll between “01-99”. This option allows the user to set the duration of the relay closure (in...
  • Page 22 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Option 34 - Once a Day Pulse Input - Set Duration: Use the bottom button to scroll between “01-59”. This option allows the user to set the second(s) they want the clock to go Option 40 - Activating Diagnostic Mode: Use the bottom button to scroll between “E”...
  • Page 23: Relay Output

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Relay Output Selections “d” = Disables the relay output selection mode. “1” = 58th minute (1) - The hourly correction for 55 seconds every hour from XX:58:05 to XX:59:00. The daily correction (5 a.m. & 5 p.m.) is ten correction cycles sent to the relay (each for 95 seconds) beginning at 5:05:00, 5:07:00, 5:09:00, 5:11:00, 5:13:00, 5:15:00, 5:17:00, 5:19:00, 5:21:00, and 5:23:00.
  • Page 24: Frequently Asked

    What happens to the V-D11025A or V-D11040A system if its input is lost? Since the V-D11025A or V-D11040A digital clock is able to act as a master clock, if the communication input is lost to the V-D11025A or V-D11040A, the clock will continue to run on its own. The V-D11025A or V-D11040A will also continue sending communication to any clocks down the line that it is connected to.
  • Page 25: Troubleshooting

    Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Support Troubleshooting The clock is not running. What do I do? a) Measure the input voltage to the clock. The voltage should measure 85-135 volts in the 110 volt model or 10-28 volts in the 2.5”/24 volt model and 16-28 volt in the 4.0”/24 volt model.
