Valcom V-AW12A Installation Manual page 15

Wall Mount Installation - V-AW12B / V-AW16B

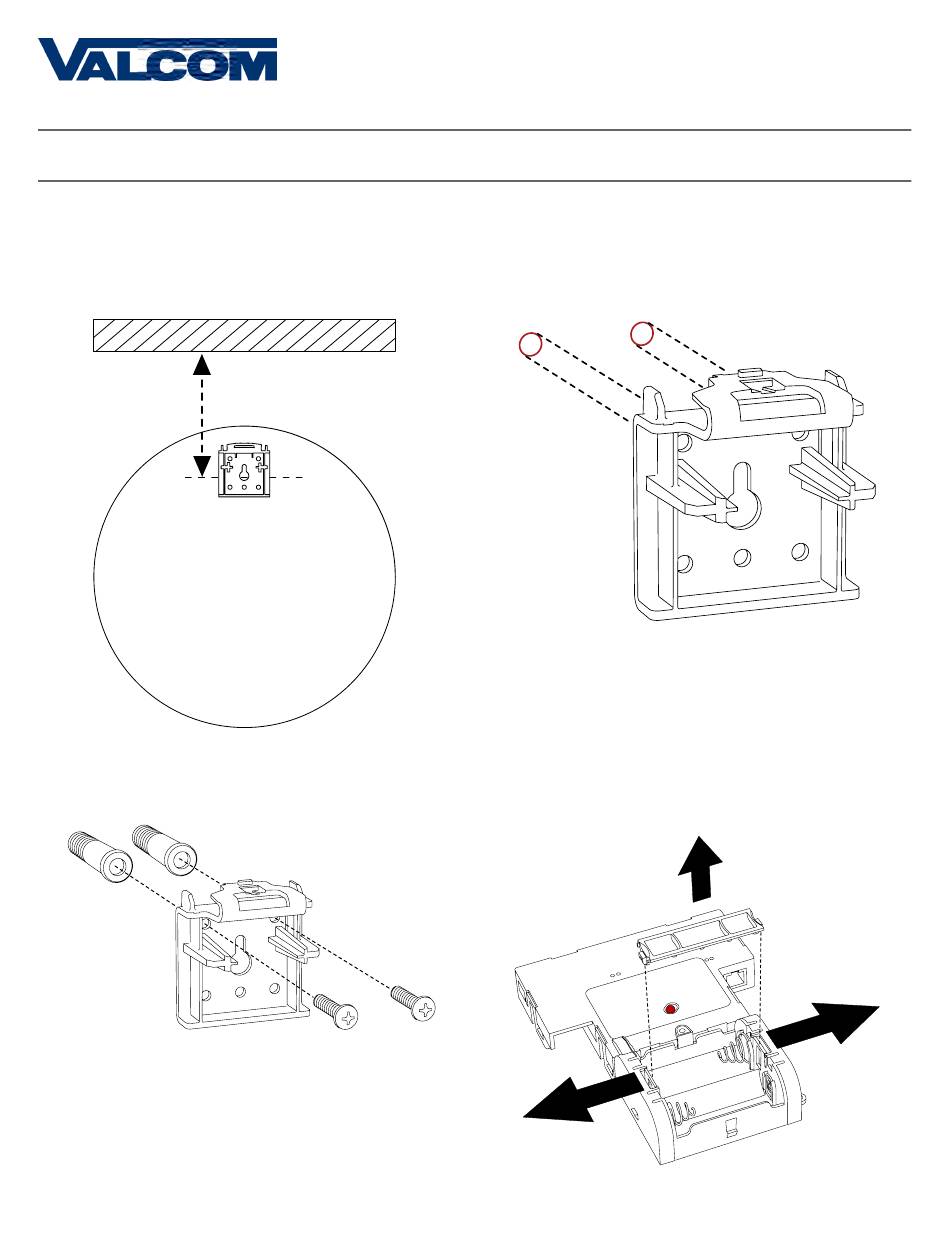

1) Place the mounting piece on the wall. Leave at
least 4 inches between the top of the gang box and
ceiling. Confirm that the bottom of the mounting
piece is level with the floor.
3) Insert the wall anchors into the two holes, then
place the two self tapping screws through the
mounting piece and into the wall anchors.
1 2
4" Minimum
3 4
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
2) Use a pencil to mark the positions of the top two
holes, then use the 1/4 inch drill bit to drill holes at
the locations of the two marks.
4) Remove the back cover from the battery pack
by pulling the two latches away to either side and
sliding the cover out.
