Valcom V-AW12A Installation Manual page 32

Flag Mount Installation - V-AW12LP / V-AW16LP
12

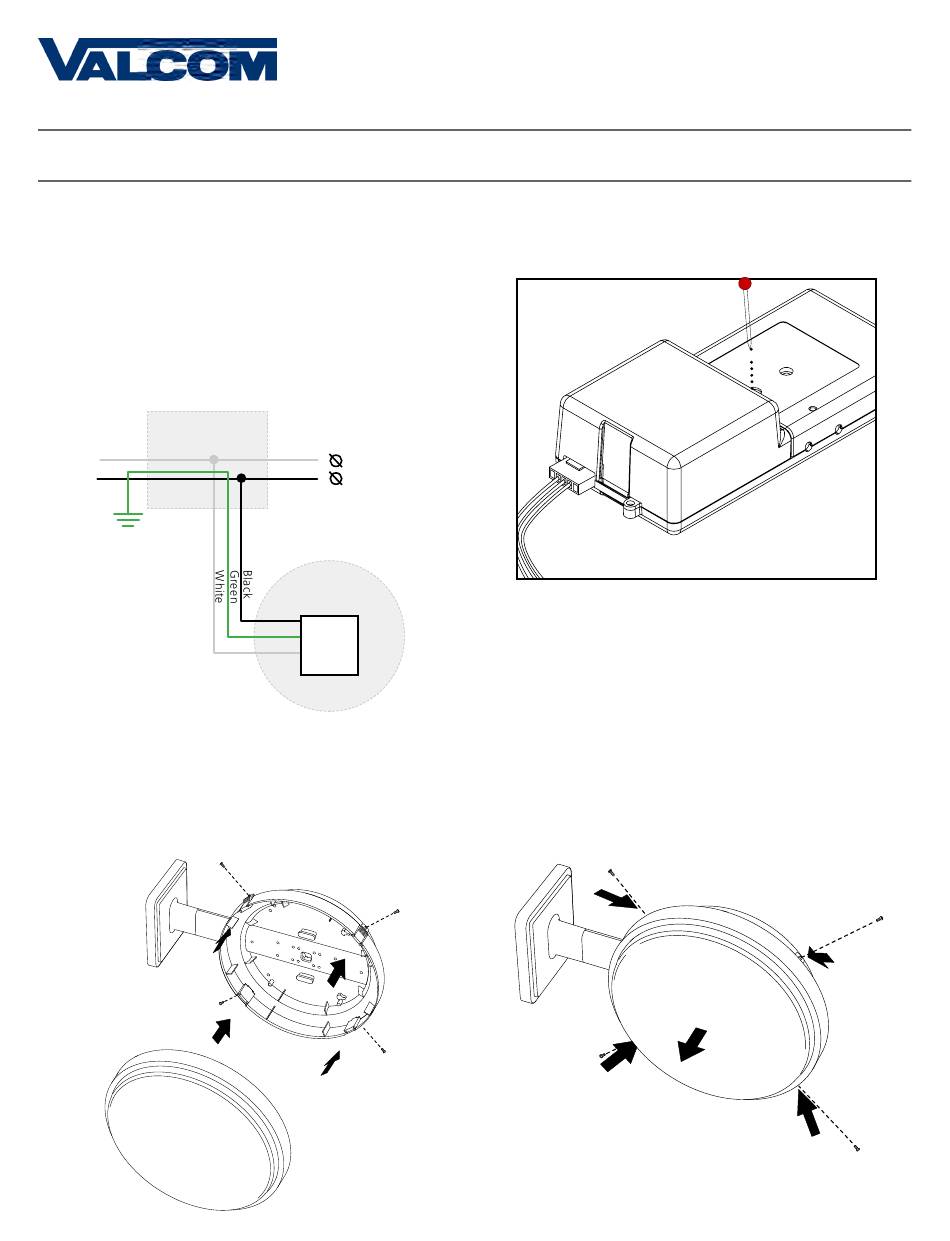

12) Attach the power wires from your kit to the
wires you threaded through the pole.
• Attach the Hot wire to the connector's black wire.
• Attach the Common wire to the connector's
white wire.
• Attach the Ground wire to the connector's
green wire.
Consult the diagram on the left for additional help.
Gang
Box
Ground
14
14) Slide the clock onto the adapter in the rotation
that you wish it to be viewed. You should hear a
snapping noise as the four clips on the adapter
secure the clock in place. Insert the adapter tab
screws to complete the installation.
Common
Power
CLOCK 1
Black
Green
White
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
13
13) First remove the gearbox pin, then attach
the power connector to the port on the movement.
2
Later models of this clock use the same movements as the B-Model
version of the same type. For instructions on how to set up the
B-model movement, refer to the B-model section of this manual for
the same type of clock.
15
15) If you feel the need to detach the clock from the
housing after the installation has been completed,
remove the outer adapter screws, press down on
the latches, and gently pull on the rim of the clock
until the clock detaches.
