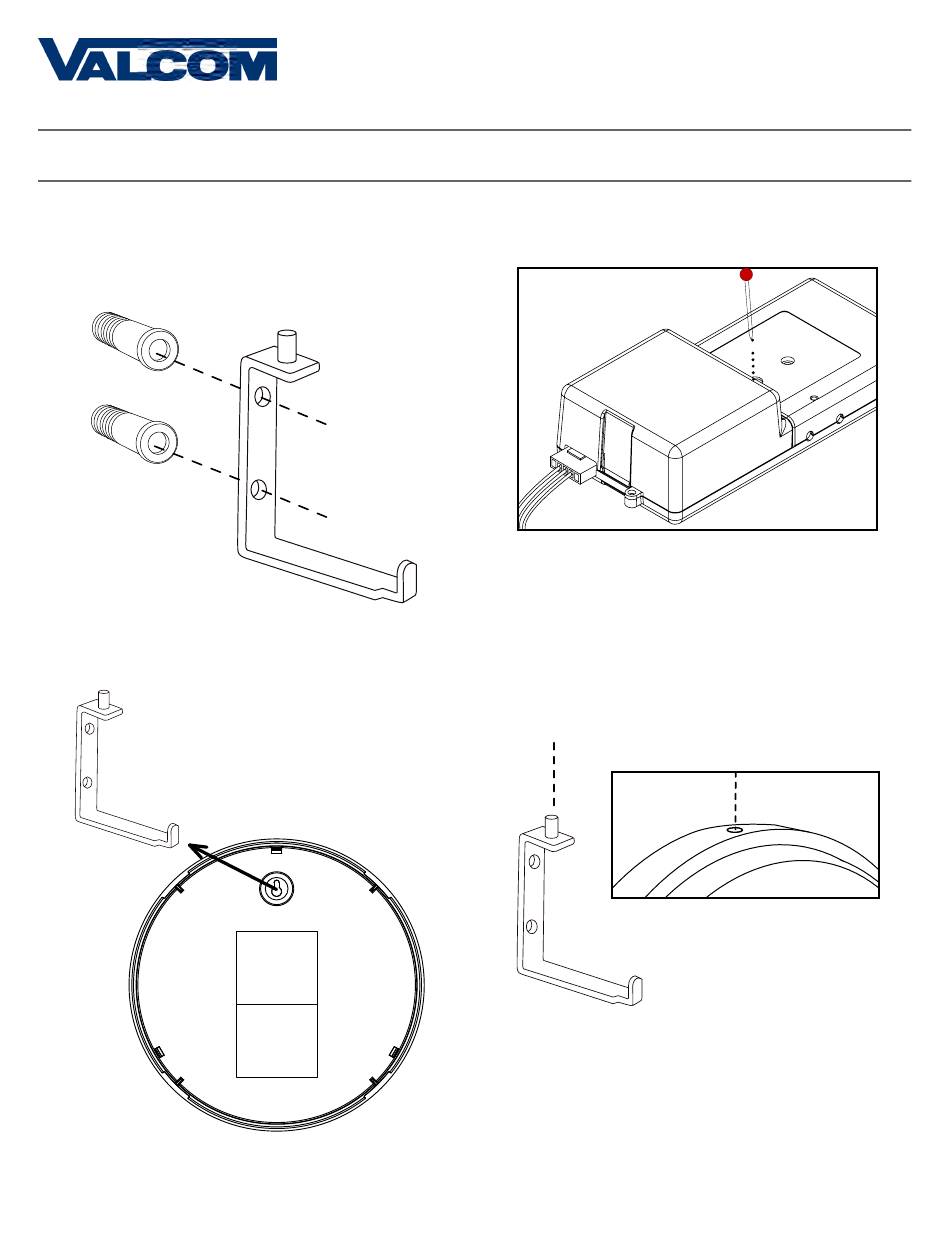

Wall Mount Installation - V-AW12LP / V-AW16LP
5) Place the two wall anchors into the holes, then
screw the two #10 self-tapping screws through the
bracket and into the wall anchors.
7) Slide the long, protruding part of the mounting
bracket into the clock case keyhole.
5 6
7 8
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
6) First remove the gearbox pin, then attach the
power connector to the port on the movement.
2
Later models of this clock use the same movements as the B-Model
version of the same type. For instructions on how to set up the
B-model movement, refer to the B-model section of this manual for
the same type of clock.
8) Align the peg on the top portion of the
mounting bracket with the hole on top of the
clock case. Slide the peg through the hole. Use the
bracket securing nut to secure the peg in place.
