Valcom V-AW12A Installation Manual page 18

Wall Mount Installation - V-AW12BLP / V-AW16BLP

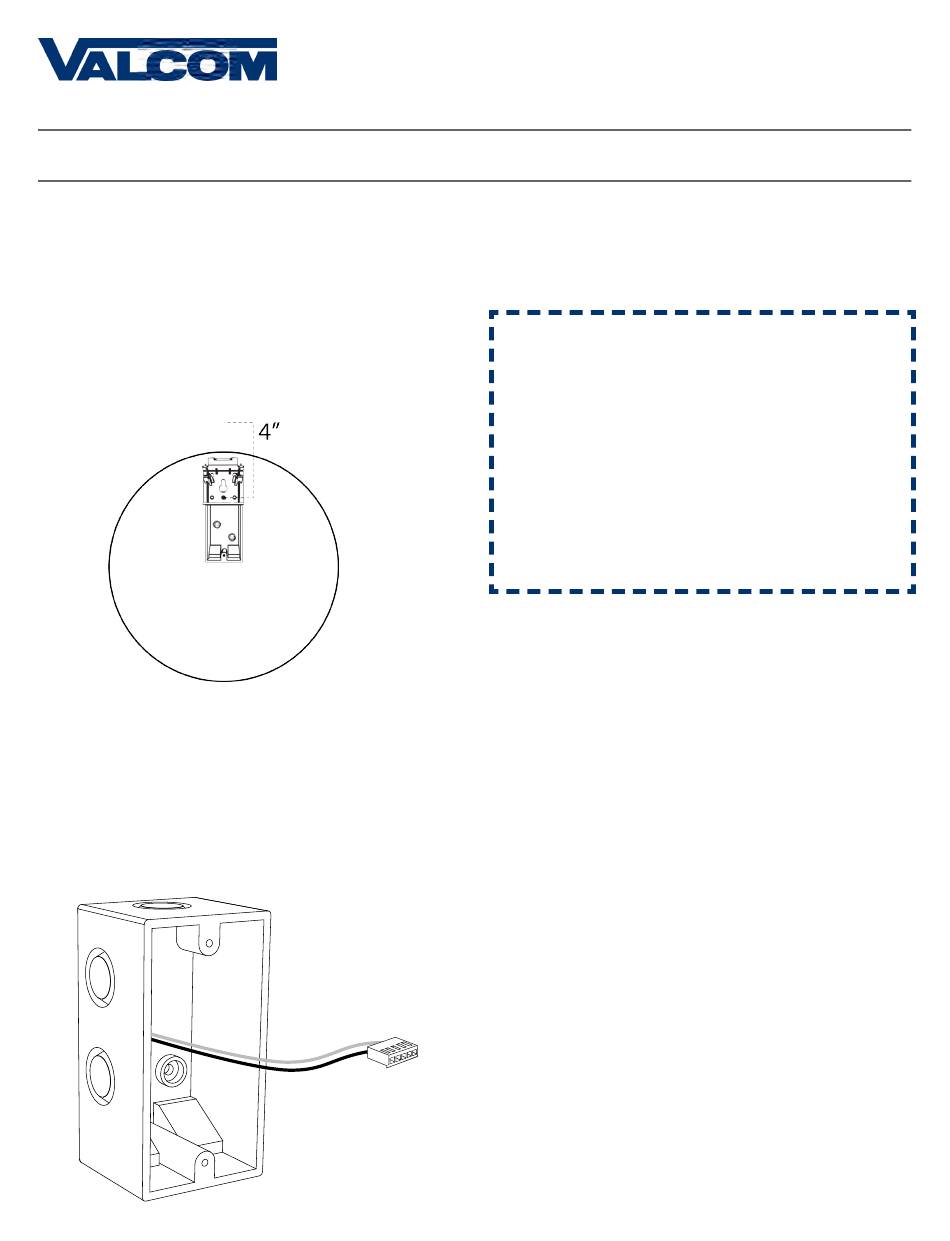

1) If you are installing a new gang box in the wall,
leave at least 4 inches between the top of the gang
box and ceiling. Confirm that the bottom of the
gang box is level with the floor.
If you are using an existing gang box, the top of the
gang box must be a minimum of four inches away
from the ceiling.
Ceiling
3) Attach the power wires from your kit to the
power wires in the gang box.
• Attach the Hot wire to the connector's black wire.
• Attach the Common wire to the connector's
white wire.
• Attach the Ground wire to the connector's
green wire.
1 2
Minimum
3 4
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
2) Run power wiring to the gang box.
For 24V power use the ORANGE and YELLOW wires
For 110V power use the BLACK and WHITE wires
CHECK YOUR WIRING
The voltage between the white and black wires
should measure 105-126 volts AC in the 115
volt model, or 21.5-26.5 volts DC in the 24
volt model.
If you are using the 24 volt model, make sure
that the wiring leading to the clock is from an
ISOLATED power supply.
4) If you do not wish to attach the mounting piece
to the gang box, proceed to step 5A. Otherwise, go
to step 6.
P. 540-563-2000
F. 540-362-9800
www.valcom.com
