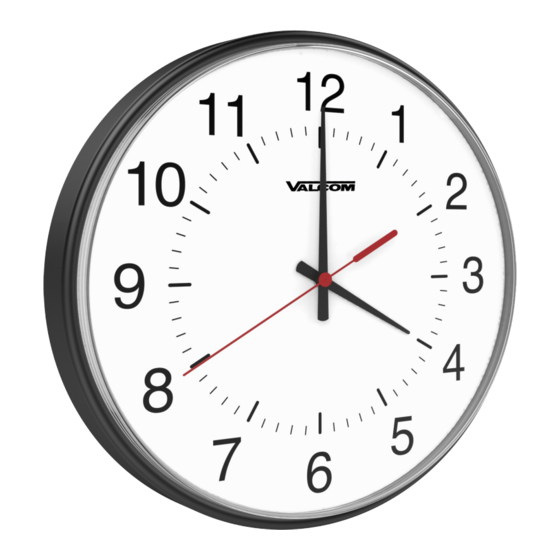

Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com V-A2412/V-D2416 Wired Clock Table of Contents Table of Contents—2 Wall Mount Installation —3 Metal Double Mount Installation —4 Plastic Double Mount Installation —5 Plastic Double Mount Installation—6 Plastic Double Mount Installation—7...
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wall Mount Installation 12” Clock 16” Clock 1. IMPORTANT: If using a low voltage system (24 volt) make sure that the transformer is an isolated transformer. 2. Connect the wiring as shown on the wiring diagram.
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Metal Double Mount Installation 1. Screw the mounting bracket to the double gang box using four (4) inner holes on the mounting bracket, or mount the mounting bracket directly to the wall or ceiling using the four (4) outer holes. (As shown in above drawing) 2.
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation *For metal mounting bracket: Use anchor that can support 50 lbs with a maximum screw size of 10/1.5” Install metal mounting bracket - First, remove the metal mounting bracket from the inside of the double mount base by unscrewing the two (2) 6-32 x 1/2”...
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation Plug and secure wiring to clock - Loosen and slip excess wiring through provided wire clamp (comes attached to each clock adaptor) and tighten the clamp.
24 VDC IN 2 W ire Digital Output to Clocks - + - - + - White *V-C6124P and the V-CCU are ordered as Black a V-VCU V-A2412 or V-A2416 V-D2425 or V-D2440 110V (EU 240V) White Black V-A2412 or V-A2416...
Page 9
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wiring Information Sync-Wire Communication System Connection 10 Amp Contact Rating...
What happens if clocks are connected to power but the master clock has not been connected? When power is applied, the clocks will run, but will not show the correct time. When the master clock is installed and connected, the V-A2412 or V-A2416 clocks will receive a correction signal from the master clock and will reset themselves to show the correct time.
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Support Troubleshooting The clock is not running. What do I do? a) Make sure the pin is removed. b) Measure the voltage between the (black) power wire and the (white) neutral wire. For 24 volt models, the voltage should measure 14 - 28 VAC, unless the 2 wire digital communication system is being implemented.
To enter the diagnostic testing, press the diagnostic switch located on the right hand side of the movement, or use a master clock to send the diagnostic tests to the V-A2412 or V-A2416 clocks. (Please refer to your specific master clock’s installation manual for complete details and instructions.)
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Diagnostic Testing Diagnostic #2 - Comprehensive Test Purpose: To test the gearbox and electrical components. The second hand will display the protocol that was detected, the minute hand will display the software version number, and the hour hand will display how much time has passed since the clock last received communication signal.
LED changes to solid green, the test was completed successfully. At the end of Diagnostic #3 the hands will all be set to 12:00:00. The V-A2412 or V-A2416 clocks will not resume normal operation until the power has been recycled.
Page 15
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Compliances FCC Part 15b Industry Canada FCC Statement: Information to the user (for U.S. only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
