Diagnostic Test #1 - Signal Information
The purpose of Diagnostic #1 is to determine how
long it has been since the clock last received a
synchronization signal.

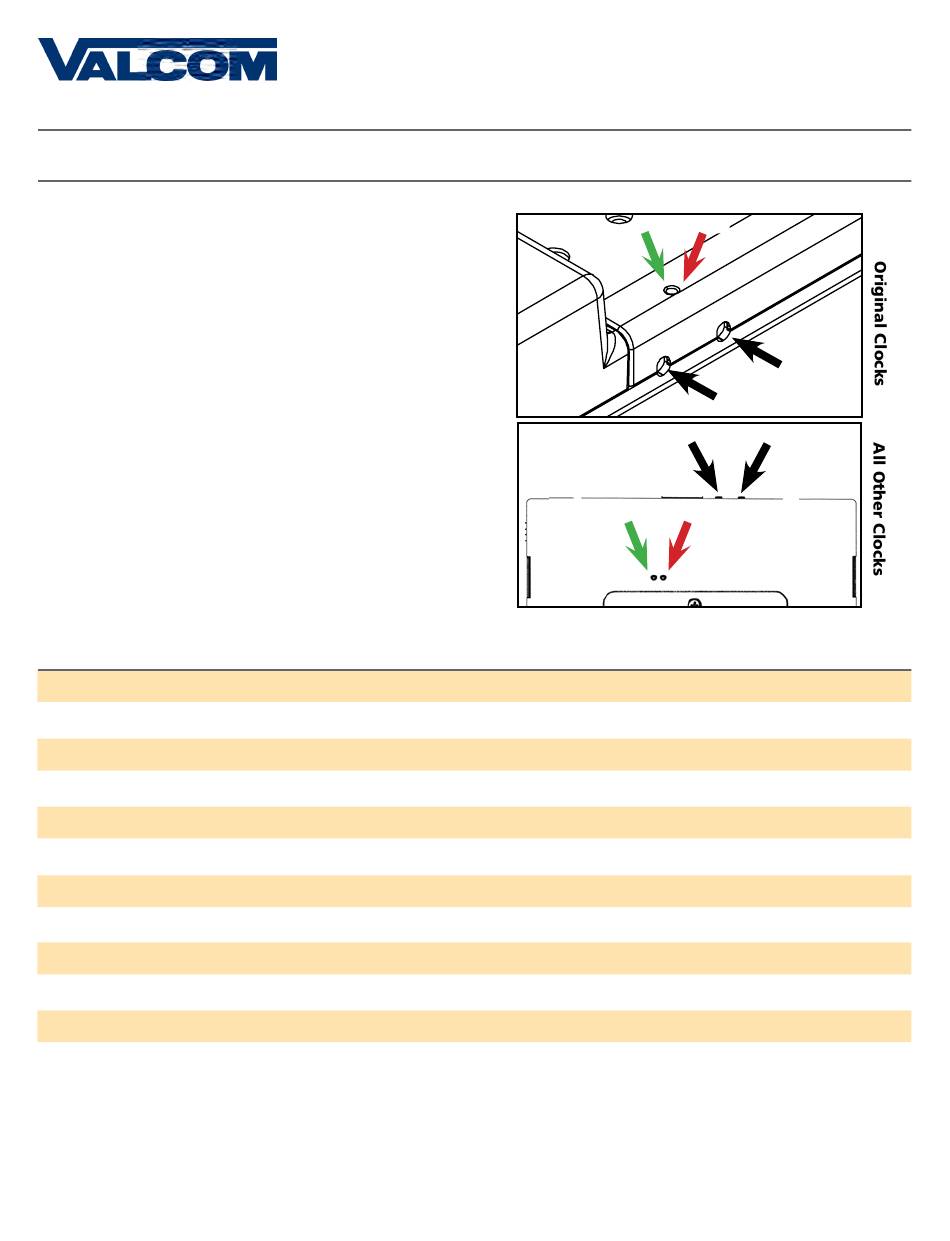

Diagnostic #1 may be enabled by pressing the
diagnostic button once. If the wireless clock is
performing this diagnostic, then a green LED on the
movement will flash once every three seconds. It
will continue to flash once every three seconds until
the diagnostic is complete.
While in diagnostic mode, the hour and minute
hands will continue to run normally. After three
minutes, the Diagnostic will end and the clock will
continue normal operation.
During the diagnostic, the second hand will display
how long it has been since the clock received a
synchronization signal.
Hour Hand Position
12
1
2
3
4
5
6
7
8
9
10
11
The second hand will remain on this number for 3 minutes, and then the clock will revert to displaying the
accurate time.
