Valcom V-AW12A Installation Manual page 61

Double Mount Installation - V-AW12B / V-AW16B

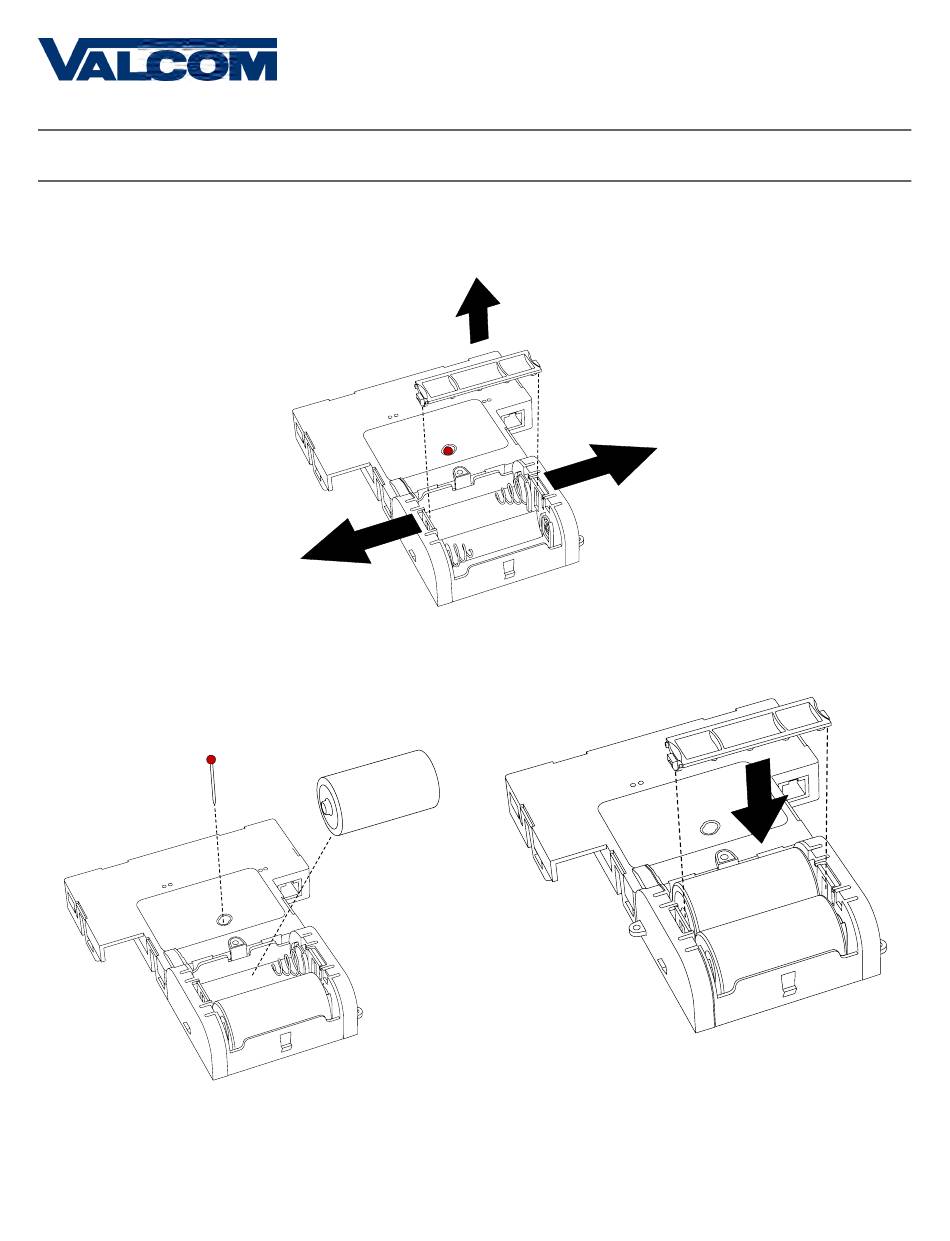

7) Remove the back covers from the battery pack by pulling the two latches away to either side and sliding
the cover out.
8) First remove the gearbox pins, then insert the
batteries into the clock. If the clock is within range
of a powered transmitter, the hands should begin to
move within a minute.
8
1
2
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
9) Place the cover back onto the battery pack. You
should hear a snapping noise as the latches engage.
P. 540-563-2000
F. 540-362-9800
www.valcom.com
7
9
61
