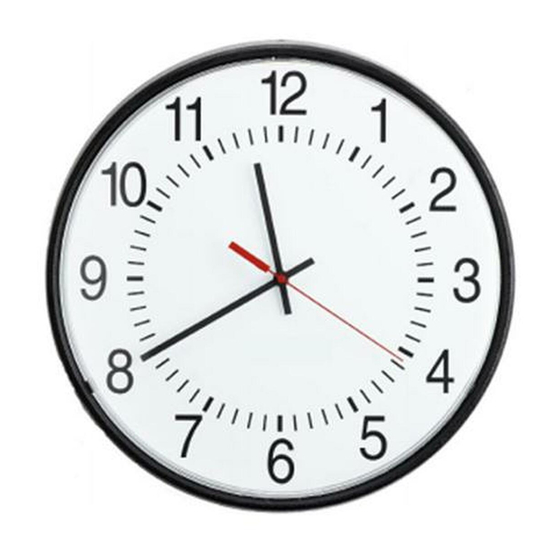

- Page 1 Installation Manual V1.03 V-AW12A / V-AW16A Wireless Clock Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com...
-
Page 2: Table Of Contents
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com SAL-2 Series Wireless Clock Table of Contents Table of Contents—2 Wall Mount Installation —3 Metal Double Mount Installation —4 Plastic Double Mount Installation —5 Plastic Double Mount Installation—6 Plastic Double Mount Installation—7... -
Page 3: Wiring
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wall Mount Installation 24 Volt/110 volt options shown in diagrams 12” Clock 16” Clock 1. Connect the wiring as shown on the wiring diagram (110V or 24V ONLY). -
Page 4: Metal Double Mount
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Metal Double Mount Installation 1. Screw the mounting bracket to the double gang box using four (4) inner holes on mounting bracket, or mount the mounting bracket directly to the wall or ceiling using the four (4) outer holes. -
Page 5: Plastic Double Mount
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation... -
Page 6: Plastic Double Mount
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation *For metal mounting bracket: Use anchor that can support 50 lbs with a maximum screw size of 10/1.5” Install metal mounting bracket - First, remove the metal mounting bracket from the inside of the double mount base by unscrewing the two (2) 6-32 x 1/2”... -
Page 7: Plastic Double Mount
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Plastic Double Mount Installation Plug and secure wiring to clock - Loosen and slip excess wiring through provided wire clamp (comes attached to each clock adaptor) and tighten the clamp. -
Page 8: Wiring Information
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wiring Information The V-AW12A and V-AW16A wireless clocks can be powered by 2 “D” cell bat- teries, 24 volts AC, 110 volts AC, or 220 volts AC. -
Page 9: Operational
IMPORTANT: If a clock is being added to an existing system, it must be in normal mode. Installation Options There are three ways to operate V-AW12A and V-AW16A Wireless Clocks. The user can choose any of the combinations listed below, or any combination of the three. -
Page 10: Overview -
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Option #1 There is a main high powered transceiver in the building and high powered transceivers or repeaters as needed to cover the entire premise. In this option, the system does not depend on the clock for transmission. - Page 11 (40) second location, and after ten (10) minutes, the clock will resume normal operation. IMPORTANT: We highly recommend installing the main transceiver before the installation of the V-AW12A and V-AW16A clocks. The transceiver should be located in a central location, preferably in a hallway, so that there are a minimum number of walls between the transceiver and the clocks.
- Page 12 We highly recommend installing the main transceiver before the installation of the V-AW12A and V-AW16A clocks. The transceiver should be located in a central location preferably in a hallway so that there are a minimum number of walls between the transceiver and the clock. After the installation of the transceiver, begin installing the clocks nearest to the transceiver;...
-
Page 13: Frequently Asked
Will the clock cause interference with any of my other wireless devices? No, the V-AW12A and V-AW16A wireless clock works on 915 - 928 MHz frequency-hopping technology. The clock switches frequencies automatically when the receiver and transceiver is open, thus interference is avoided. -
Page 14: Troubleshooting
Then go to the clock that isn’t working and press the Transmit/Receive switch twice. The second hand will go to 4 notifying the user it is looking for the signal. This should get the signal to the clock. If the clock does not correct, call Valcom technical support. What happens if the clock shows the wrong time? Move the clock to Diagnostic #1 in order to find the last time that it received the signal. -
Page 15: Diagnostic Testing
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Diagnostic Testing Overview - Diagnostic The number of times that the switch is pressed will determine the diagnostic mode. After determining the diagnostic mode, the LED between the two (2) switches will start flashing a green light. - Page 16 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Diagnostic Testing Diagnostic #2 This diagnostic will determine the quality of the time signal. In order to enter Diagnostic #2 mode, push the Diagnostic Switch twice which is indicated by the green LED flashing twice with a three (3) second break.
- Page 17 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Diagnostic Testing Diagnostic #4 This diagnostic will test the battery level of the clock. In order to enter Diagnostic #4 mode, push the Diagnostic Switch four (4) times which is indicated by the LED flashing four times every three seconds.
-
Page 18: Fcc Wants You To
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com FCC Wants You to Know This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
