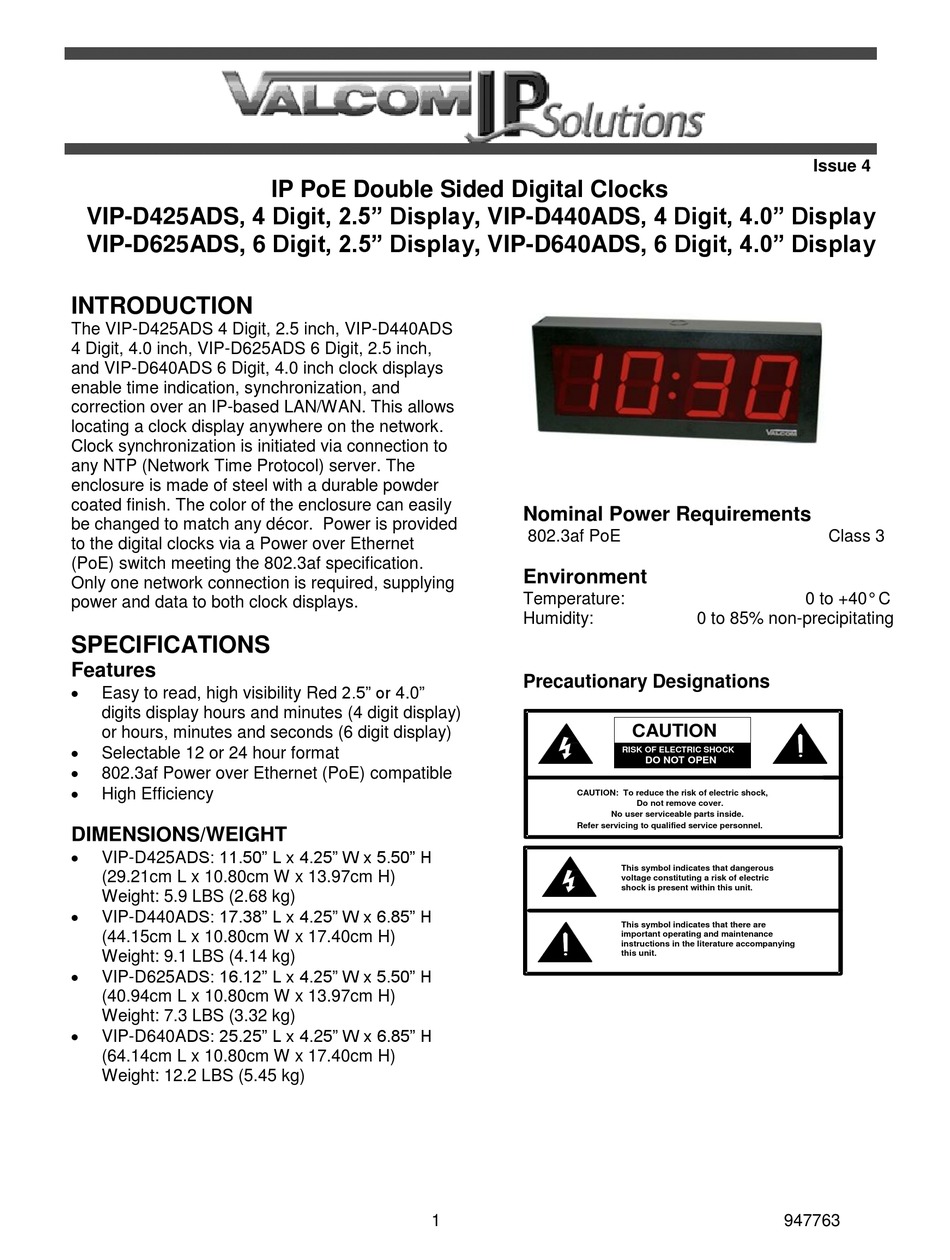

Valcom VIP-D425ADS Quick Start Manual

VIP-D425ADS, 4 Digit, 2.5" Display, VIP-D440ADS, 4 Digit, 4.0" Display
VIP-D625ADS, 6 Digit, 2.5" Display, VIP-D640ADS, 6 Digit, 4.0" Display

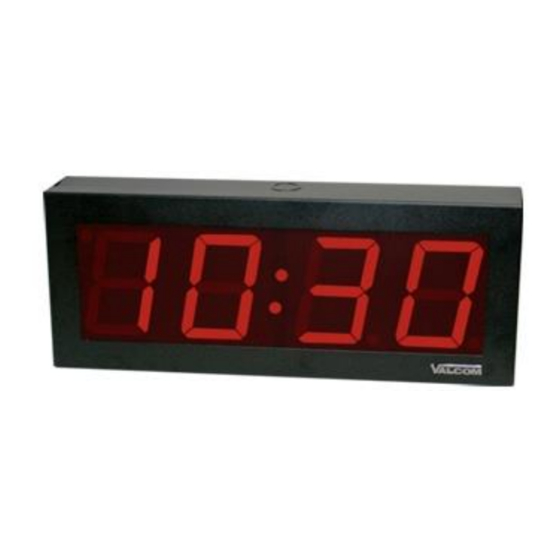

INTRODUCTION
The VIP-D425ADS 4 Digit, 2.5 inch, VIP-D440ADS
4 Digit, 4.0 inch, VIP-D625ADS 6 Digit, 2.5 inch,
and VIP-D640ADS 6 Digit, 4.0 inch clock displays
enable time indication, synchronization, and
correction over an IP-based LAN/WAN. This allows
locating a clock display anywhere on the network.
Clock synchronization is initiated via connection to
any NTP (Network Time Protocol) server. The
enclosure is made of steel with a durable powder
coated finish. The color of the enclosure can easily
be changed to match any décor. Power is provided
to the digital clocks via a Power over Ethernet
(PoE) switch meeting the 802.3af specification.
Only one network connection is required, supplying
power and data to both clock displays.
SPECIFICATIONS
Features

Easy to read, high visibility Red 2.5" or 4.0"
digits display hours and minutes (4 digit display)
or hours, minutes and seconds (6 digit display)

Selectable 12 or 24 hour format

802.3af Power over Ethernet (PoE) compatible

High Efficiency
DIMENSIONS/WEIGHT

VIP-D425ADS: 11.50" L x 4.25" W x 5.50" H
(29.21cm L x 10.80cm W x 13.97cm H)
Weight: 5.9 LBS (2.68 kg)

VIP-D440ADS: 17.38" L x 4.25" W x 6.85" H
(44.15cm L x 10.80cm W x 17.40cm H)
Weight: 9.1 LBS (4.14 kg)

VIP-D625ADS: 16.12" L x 4.25" W x 5.50" H
(40.94cm L x 10.80cm W x 13.97cm H)
Weight: 7.3 LBS (3.32 kg)

VIP-D640ADS: 25.25" L x 4.25" W x 6.85" H
(64.14cm L x 10.80cm W x 17.40cm H)
Weight: 12.2 LBS (5.45 kg)
IP PoE Double Sided Digital Clocks
1
Nominal Power Requirements
802.3af PoE
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.
Issue 4
Class 3
0 to +40° C
947763
