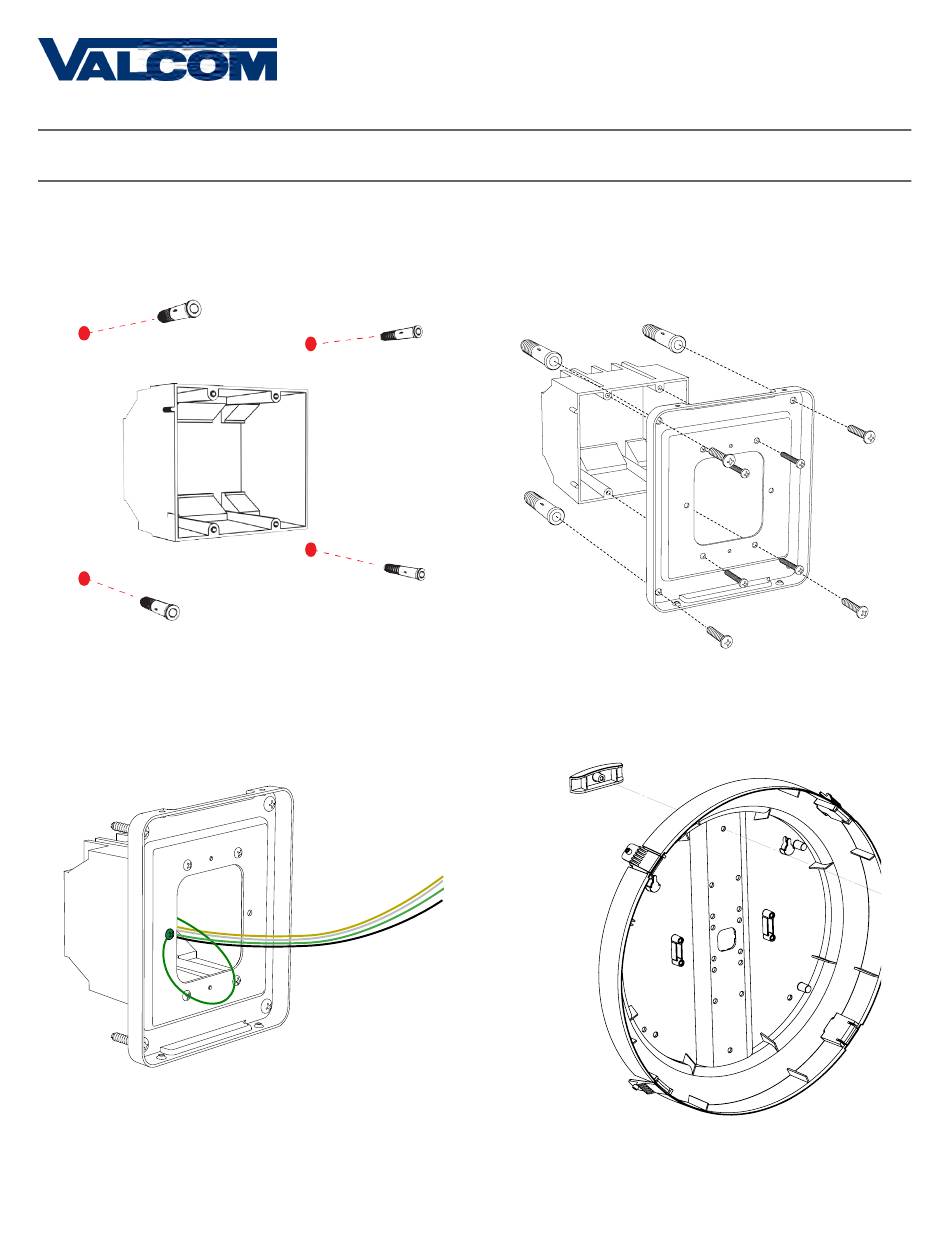

Flag Mount Installation - V-AW12LP / V-AW16LP

5) Remove the mounting plate and drill the four

holes that were just traced. Insert the four wall

anchors into the holes.

7) Thread any wiring through the mounting plate,

and attach a grounding wire to the mounting plate

using one of the larger centered holes and the

#10-32x3/8 screw.

5 6

7 8

Valcom, Inc.

5614 Hollins Road

Roanoke, VA 24019

USA

6) Reattach the mounting plate, this time using all

four long, silver #8 screws, then insert the four

#6-32x1 screws through the mounting plate and

into the anchors.

8) Use a screwdriver to remove one of the end caps.

The end cap and screw that was used to secure it

will not be needed again during this installation.

P. 540-563-2000

F. 540-362-9800

www.valcom.com
