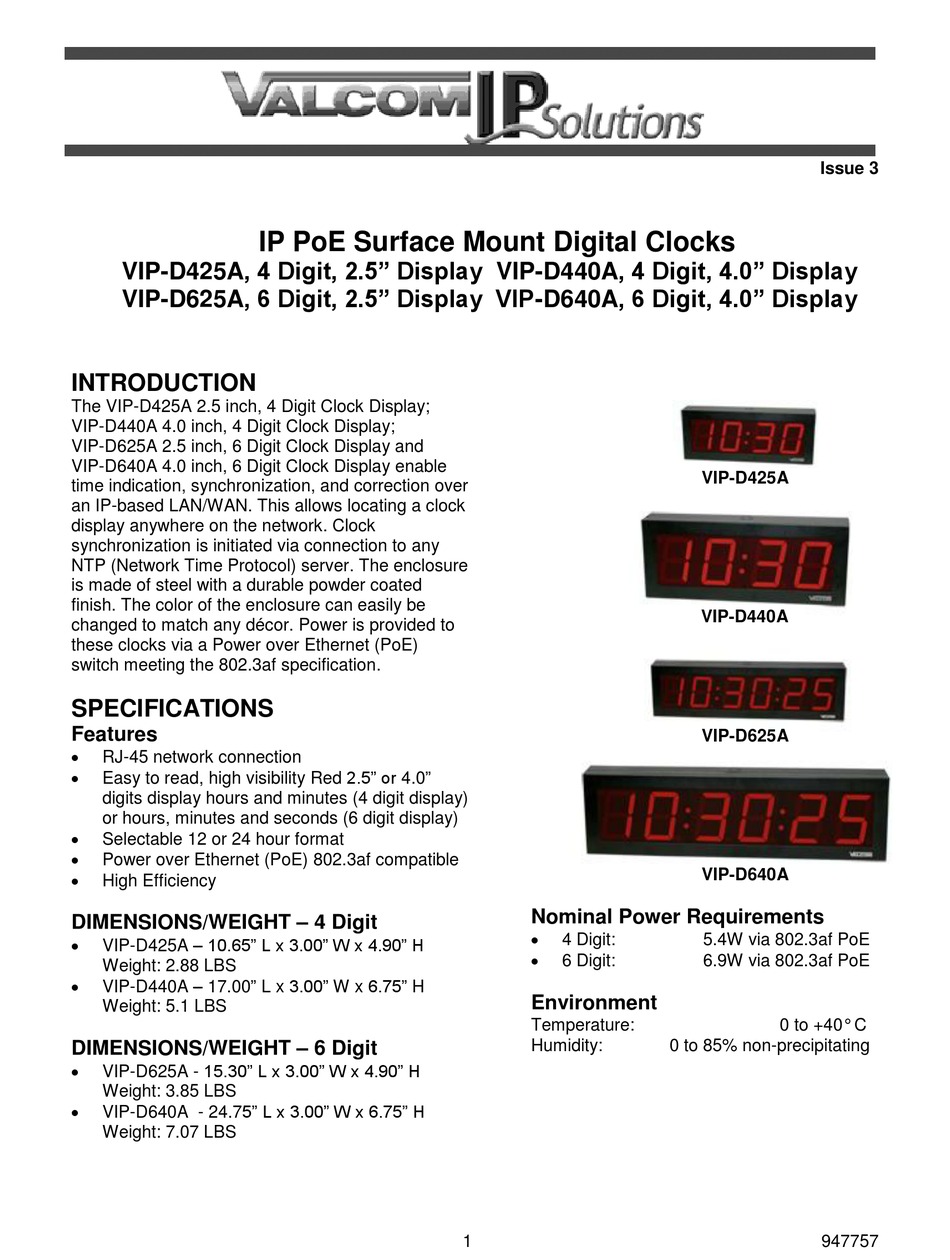

Valcom VIP-D425A Quick Start Manual

VIP-D425A, 4 Digit, 2.5" Display VIP-D440A, 4 Digit, 4.0" Display
VIP-D625A, 6 Digit, 2.5" Display VIP-D640A, 6 Digit, 4.0" Display
INTRODUCTION
The VIP-D425A 2.5 inch, 4 Digit Clock Display;
VIP-D440A 4.0 inch, 4 Digit Clock Display;

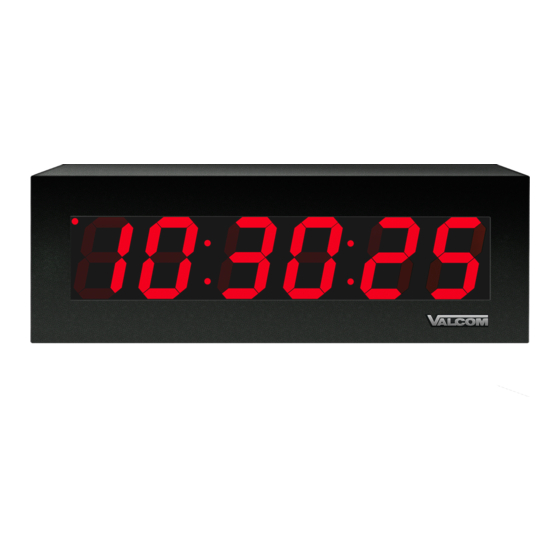

VIP-D625A 2.5 inch, 6 Digit Clock Display and
VIP-D640A 4.0 inch, 6 Digit Clock Display enable
time indication, synchronization, and correction over
an IP-based LAN/WAN. This allows locating a clock
display anywhere on the network. Clock
synchronization is initiated via connection to any
NTP (Network Time Protocol) server. The enclosure
is made of steel with a durable powder coated
finish. The color of the enclosure can easily be
changed to match any décor. Power is provided to
these clocks via a Power over Ethernet (PoE)
switch meeting the 802.3af specification.
SPECIFICATIONS
Features

RJ-45 network connection

Easy to read, high visibility Red 2.5" or 4.0"
digits display hours and minutes (4 digit display)
or hours, minutes and seconds (6 digit display)

Selectable 12 or 24 hour format

Power over Ethernet (PoE) 802.3af compatible

High Efficiency
DIMENSIONS/WEIGHT – 4 Digit

VIP-D425A – 10.65" L x 3.00" W x 4.90" H
Weight: 2.88 LBS

VIP-D440A – 17.00" L x 3.00" W x 6.75" H
Weight: 5.1 LBS
DIMENSIONS/WEIGHT – 6 Digit

VIP-D625A - 15.30" L x 3.00" W x 4.90" H
Weight: 3.85 LBS

VIP-D640A - 24.75" L x 3.00" W x 6.75" H
Weight: 7.07 LBS
IP PoE Surface Mount Digital Clocks
Nominal Power Requirements

4 Digit:

6 Digit:
Environment
Temperature:
Humidity:
1
Issue 3
VIP-D425A
VIP-D440A
VIP-D625A
VIP-D640A
5.4W via 802.3af PoE
6.9W via 802.3af PoE
0 to +40° C
0 to 85% non-precipitating
947757
