Valcom V-AW12A Installation Manual page 19

5A

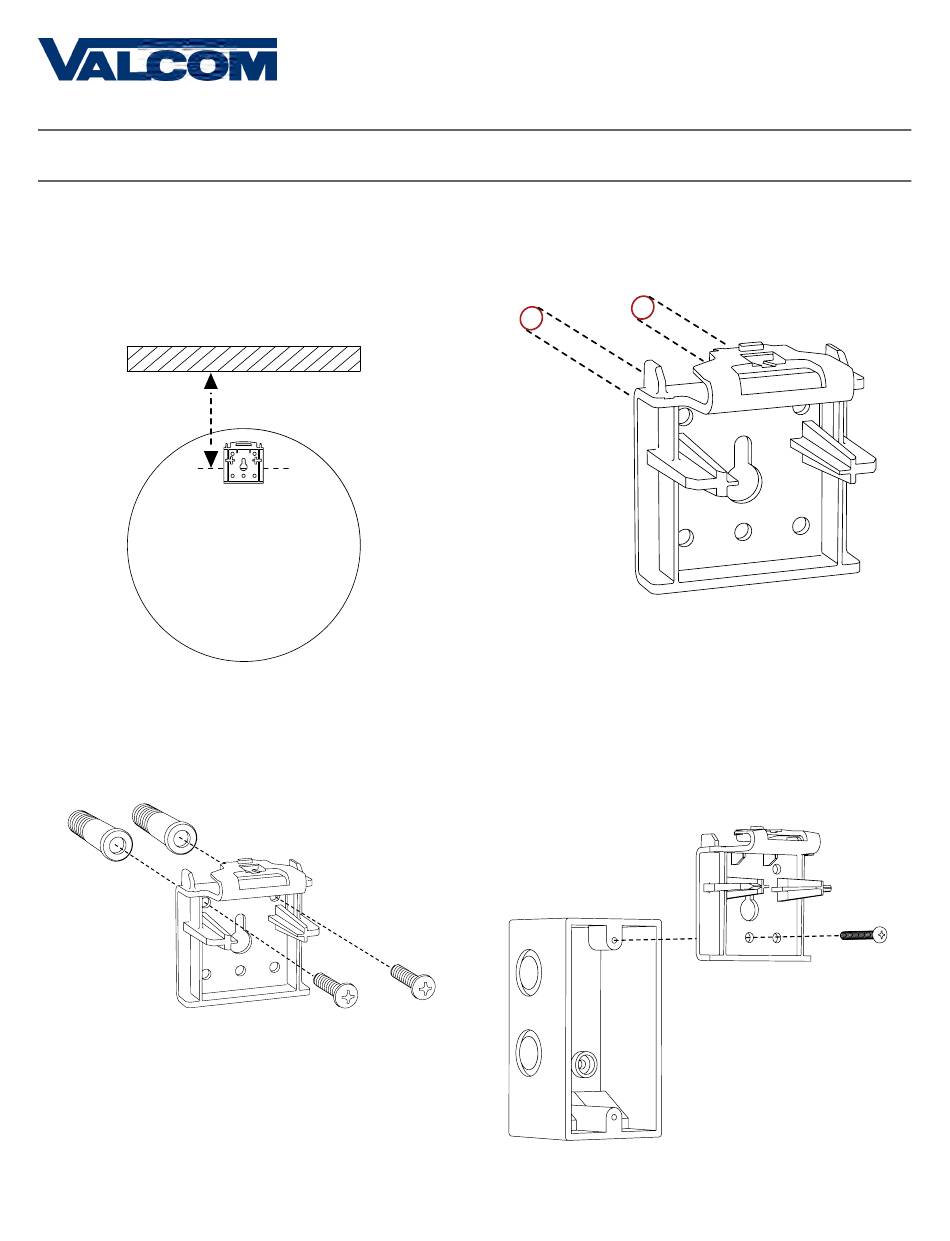

Wall Mount Installation - V-AW12BLP / V-AW16BLP
5A) If you do not wish to attach the mounting piece
to a gang box, place the mounting piece on the
wall. Leave at least 4 inches between the middle of
the mounting piece and ceiling. Confirm that the
bottom of the mounting piece is level with the floor.
5C
5C) Insert the wall anchors into the two holes,
then place the two self tapping screws through the
mounting piece and into the wall anchors. Skip step
6 and go directly to step 7.
4" Minimum
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
5B
5B) Use a pencil to mark the positions of the top
two holes, then use the 1/4 inch drill bit to drill
holes at the locations of the two marks.
6) Place the mounting piece on the wall above the
gang box so that the bottom centered hole on the
piece overlaps the top hole on the gang box. Insert
a #6-32x1 screw through the bottom centered hole
and into the top hole of the gang box.
