Valcom V-AW12A Installation Manual page 45

Flag Mount Installation - V-AW12BLP / V-AW16BLP
12

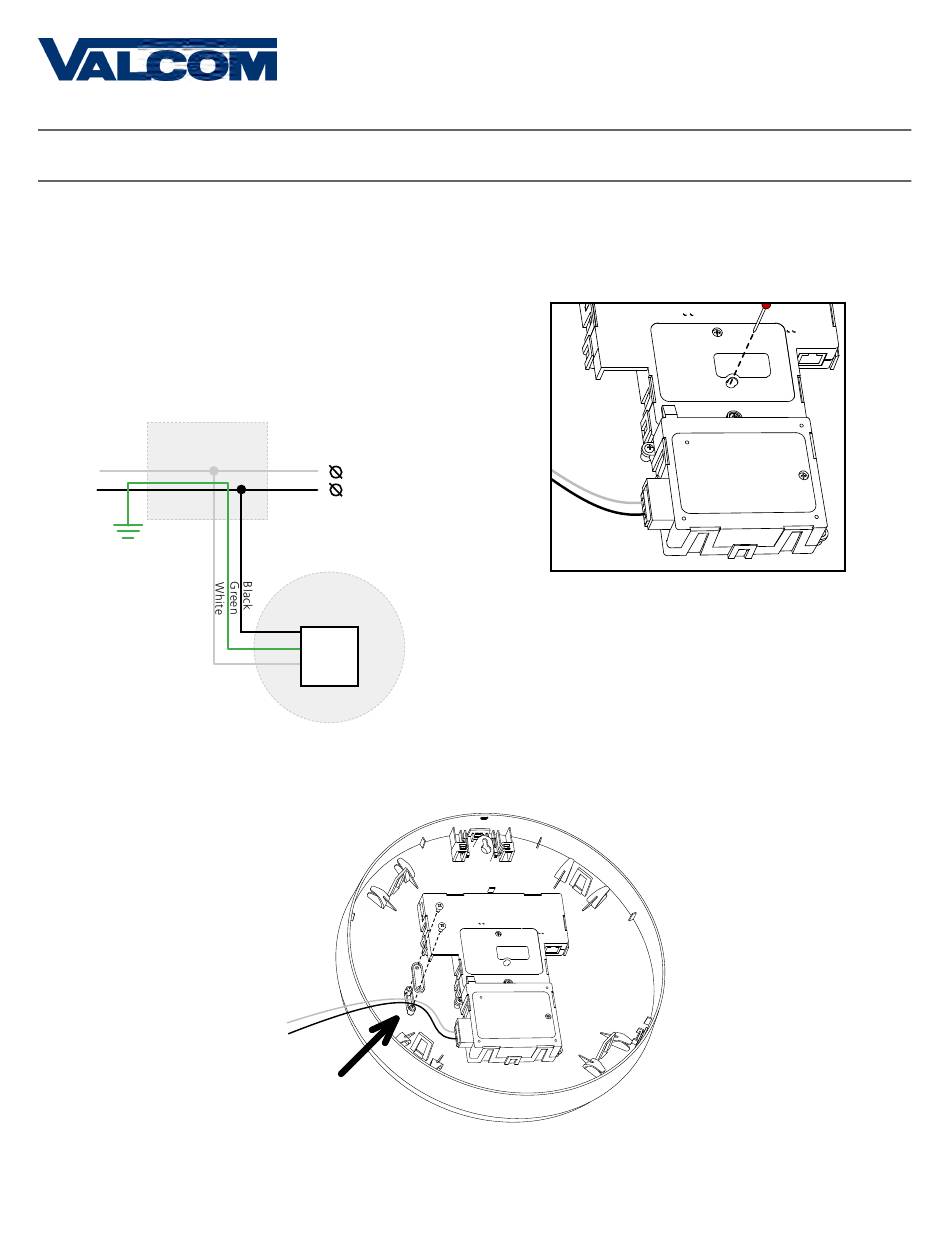

12) Attach the power wires from your kit to the
wires you threaded through the pole.
• Attach the Hot wire to the connector's black wire.
• Attach the Common wire to the connector's
white wire.
• Attach the Ground wire to the connector's
green wire.
Consult the diagram on the left for additional help.
Gang
Box
Ground
14) Lay any excess wiring across the strain relief base, then attach the strain relief to the clock with the two
#6-19x7/16 screws. The strain relief should be tight enough to prevent the wire from sliding.
Common
Power
CLOCK 1
Black
Green
White
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
13
13) First remove the gearbox pin, then attach a
power connector to the port on the side of
the movement.
2
14
P. 540-563-2000
F. 540-362-9800
www.valcom.com
1
45
