Valcom V-AW12A Installation Manual page 66

Double Mount Installation - V-AW12BLP / V-AW16BLP

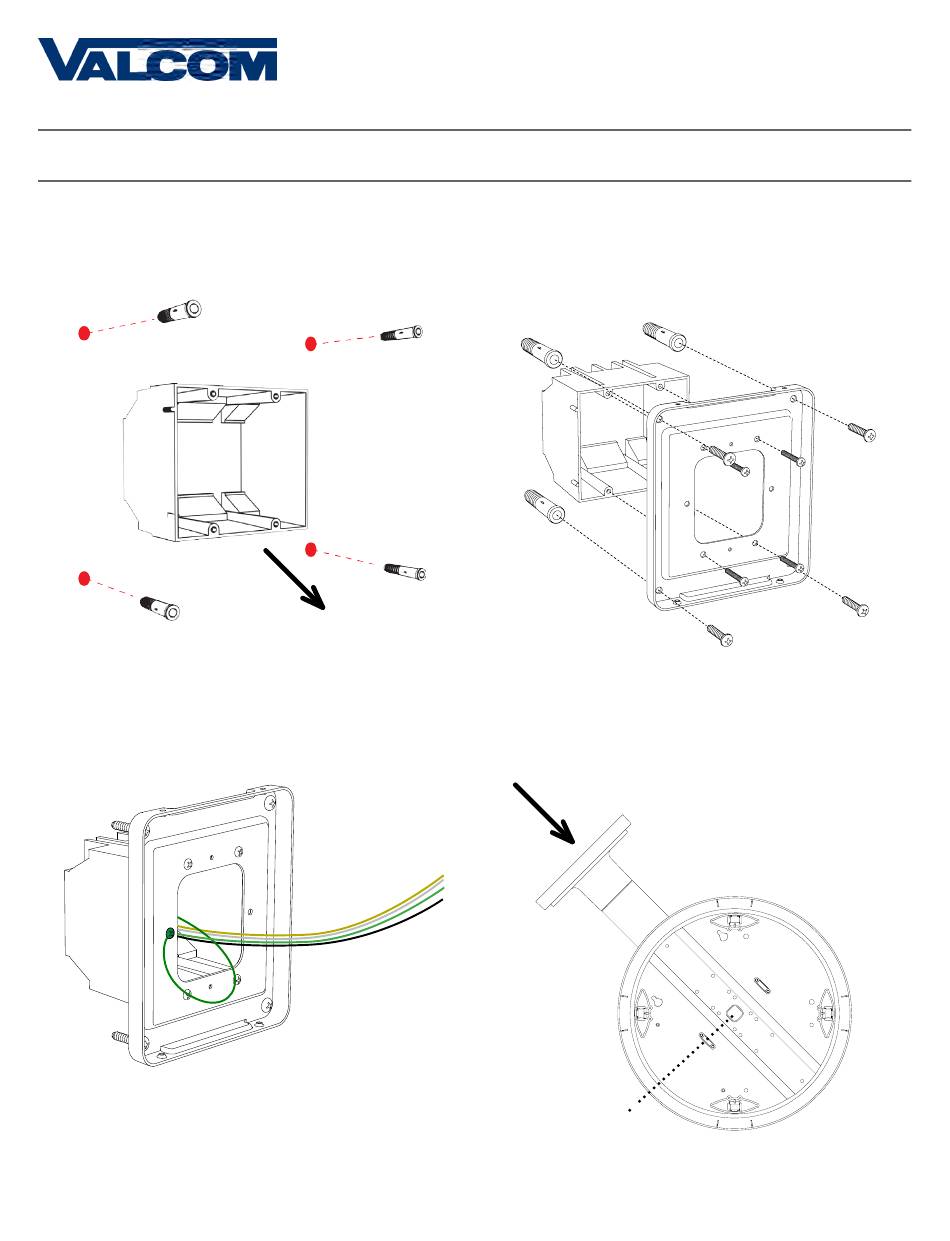

5) Remove the mounting plate and drill the four
holes that were just traced. Insert the four wall
anchors into the holes.
7) Thread any wiring through the mounting plate,
and attach a grounding wire to the mounting plate
using one of the larger centered holes and the
#10-32x3/8 screw.
5 6
7 8
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
6) Reattach the mounting plate, this time using all
four long, silver #6-32x1 screws, then insert the
four #8 screws through the mounting plate and into
the anchors.
8) Thread at least fifteen inches (38.1cm) of wiring
from the gang box through the bottom of the pole
until each wire exits through the hole in
the adapter.
Adapter hole
