Wall Mount Installation - V-AW12A / V-AW16A
INSTALL, POWER, AND SET YOUR MASTER CLOCK OR REPEATER BEFORE POWERING THE SECONDARY
WIRELESS CLOCKS
A Valcom Master Clock and any Repeaters must be installed, powered, and set up BEFORE you attempt to set up a wireless clock system. If
the Master Clock and Repeaters are not properly installed and powered, the secondary clocks will not synchronize.

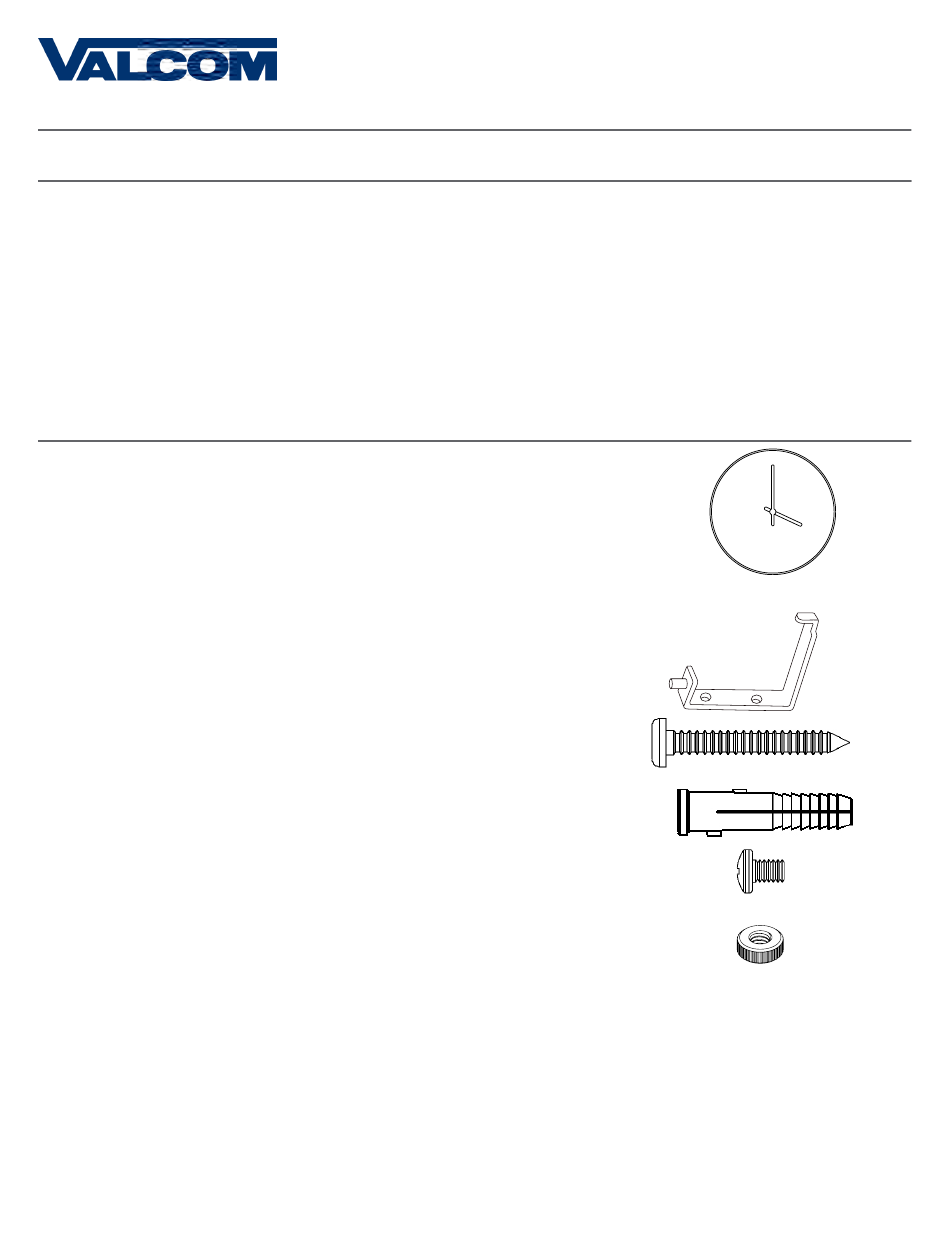

Included in Package
Description
V-AW12A/V-AW16A round
Standard ABS analog clock
Included in Wiring Kit (A-WK-12-1)
Mounting Bracket
#10x1.5 Self-tapping screw
Wall anchor
#4x5/16 Screw
Bracket Securing Nut
PLEASE NOTE: A user will also have to provide two D-Cell batteries, a Phillips-head screwdriver, a small slot-head screwdriver, a drill with a 1/4 inch drill bit,
a pencil, a single gang box, any equipment needed to install the gang box, and any additional wiring needed to extend the power or ground cables.
If any of the items listed in the wiring kit are missing, you may contact Valcom and order a
replacement kit.
VERY IMPORTANT:
Quantity
1
1
2
2
1
1
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
P. 540-563-2000
F. 540-362-9800
