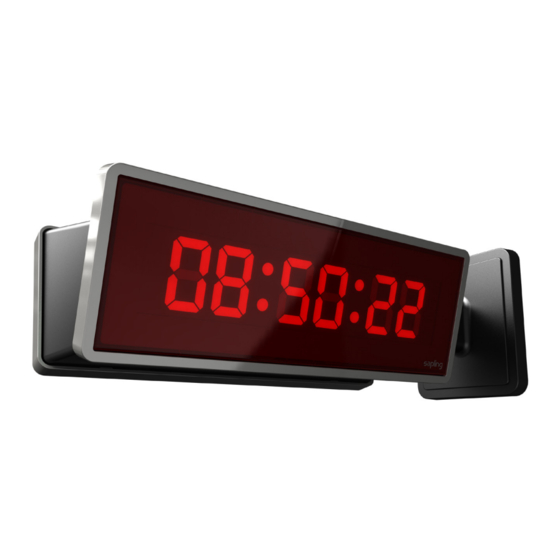

- Page 1 Installation Manual V1.03 V-D2425 and V-D2440 Digital Clock Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com...
-
Page 2: Table Of Contents
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com V-D2425 and V-D2440 Wired Clock Table of Contents Table of Contents—2 Installation Instructions Flush Mount 3 Flush Mount Installation—3 Wall Mount Surface (Wall) Mount Installation—4 Double Mount Metal Double Mount Installation—5... -
Page 3: Installation Instructions
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Flush Mount Installation 1. Mount the flush mount box into the wall. 2. Connect the ground wire into the flush mount box using the tooth lockwasher and the machine screw nut (included in the kit). -
Page 4: Flush Mount
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Flush Mount Installation Flush Mount Picture 2.5” Figure 1 Front View: Side View Flush Mount Angled View: D3 = .28” D4 = 3.5” H = 4.65”... -
Page 5: Surface (Wall) Mount Installation
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Surface (Wall) Mount Installation 1. Mount the wall mount box into the double gang box using four machine screws (#6-32) included in the kit. 2. Connect the ground wire into the flush mount box using the tooth lockwasher and machine screw nut (included in the kit). -
Page 6: Metal Double Mount Installation
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Metal Double Mount Installation 1. Screw hanger/mounting rod (included in the kit) into the crossbar (also included in the kit). 2. Insert wires through hanger/mounting rod. -
Page 7: Plastic Surface (Wall) Mount Installation-6
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Plastic Surface (Wall) Mount Installation... - Page 8 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Plastic Surface (Wall) Mount Installation Mount Housing to Wall and/or Gang Box - To mount the housing to the wall, drive two (2) plastic anchors into the wall (not supplied in kit) and take two pan head screws (also not supplied in kit) and drive them into the plastic inserts leaving an 1/8th inch gap between the head of the screw and the wall.
- Page 9 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Plastic Double Mount Installation...
- Page 10 Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Plastic Double Mount Installation *For metal mounting bracket: Use a wall anchor that can support 50 lbs or more with a maximum screw size of 10/1.5”...
-
Page 11: Plastic Double Mount Installation
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Installation Instructions Plastic Double Mount Installation Snap and screw base to metal mounting bracket - Snap the base to the metal mounting bracket by first making contact with the lip in the upper side of the base and the metal mounting bracket. -
Page 12: Wiring Information
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Wiring Information Wiring and Jumper Settings Jumper Number JP1 - 12/24 Hour Mode 12 Hour Mode 24 Hour Mode JP2 - Brightness Brightest Bright JP3 - Loss of Communication Alert... -
Page 13: Wire Digital Communication Wiring Information
24 VDC IN 2 W ire Digital Output to Clocks - + - - + - White *V-C6124P and the V-CCU are ordered as Black a V-VCU V-A2412 or V-A2416 V-D2425 or V-D2440 110V (EU 240V) White Black V-A2412 or V-A2416... -
Page 14: Troubleshooting
Valcom, Inc. 540-563-2000 P. 5614 Hollins Road 540-362-9800 F. Roanoke, VA 24019 www.valcom.com Support Troubleshooting The clock is not running. What do I do? a) Measure the input voltage to the clock. The voltage should measure 85-135 volts in the 110 volt model or 10-28 volts in the 2.5”/24 volt model and 16-28 volt in the 4.0”/24 volt model. -
Page 15: Frequently Asked Questions
Frequently Asked Questions Can the digital clock be used as an independent clock? No, the V-D2425 and V-D2440 digital clock requires a communication input and must be used with either a master clock or a V-D11025A or V-D11040A digital clock. - Page 16 CE Declaration of Conformity We, The Sapling Company certify and declare under our sole responsibility that the SBD 1000, V-D2425 and V-D2440 conform with the essential requirements of the EMC Directive 2004/108.EC and LVD 2006/95/EC, based on the following standards applied:...
