Flag Mount Installation - V-AW12B / V-AW16B

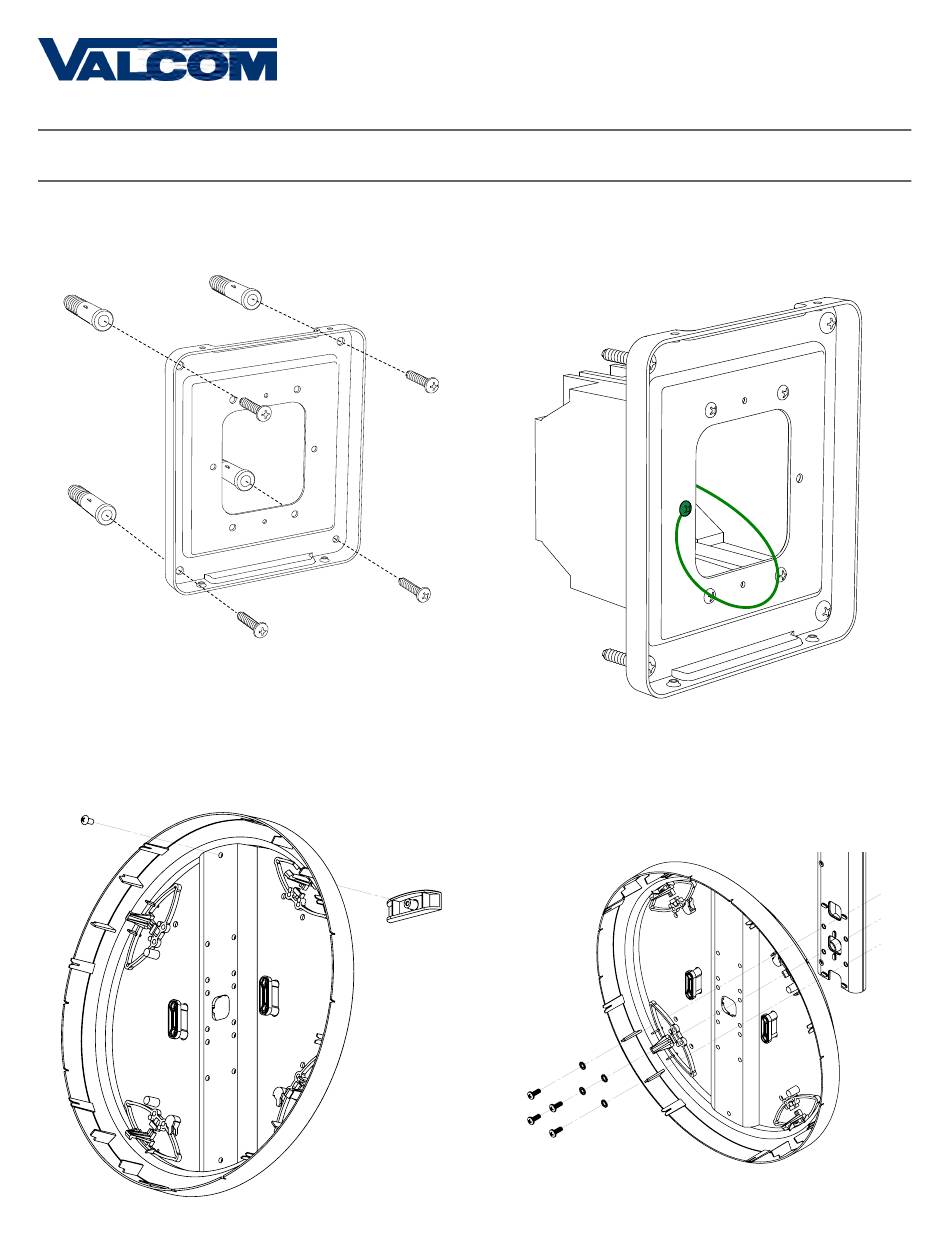

5) Insert the #8 screws through the mounting plate
and into the anchors.
6) Use a screwdriver to remove one of the end caps.
The end cap and screw that was used to secure it
will not be needed again during this installation.
5 5B
6 7
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
5B) If you are installing the clock atop an gang box,
use the green screw to attach a grounding wire to
the mounting plate.
7) Insert the four #8-32x7/16 screws through the
internal-tooth washers, then through the adapter,
and finally into the pole. Use a screwdriver to
tighten the screws so that the adapter does
not move.
