Wall Mount Installation - V-AW12LP / V-AW16LP

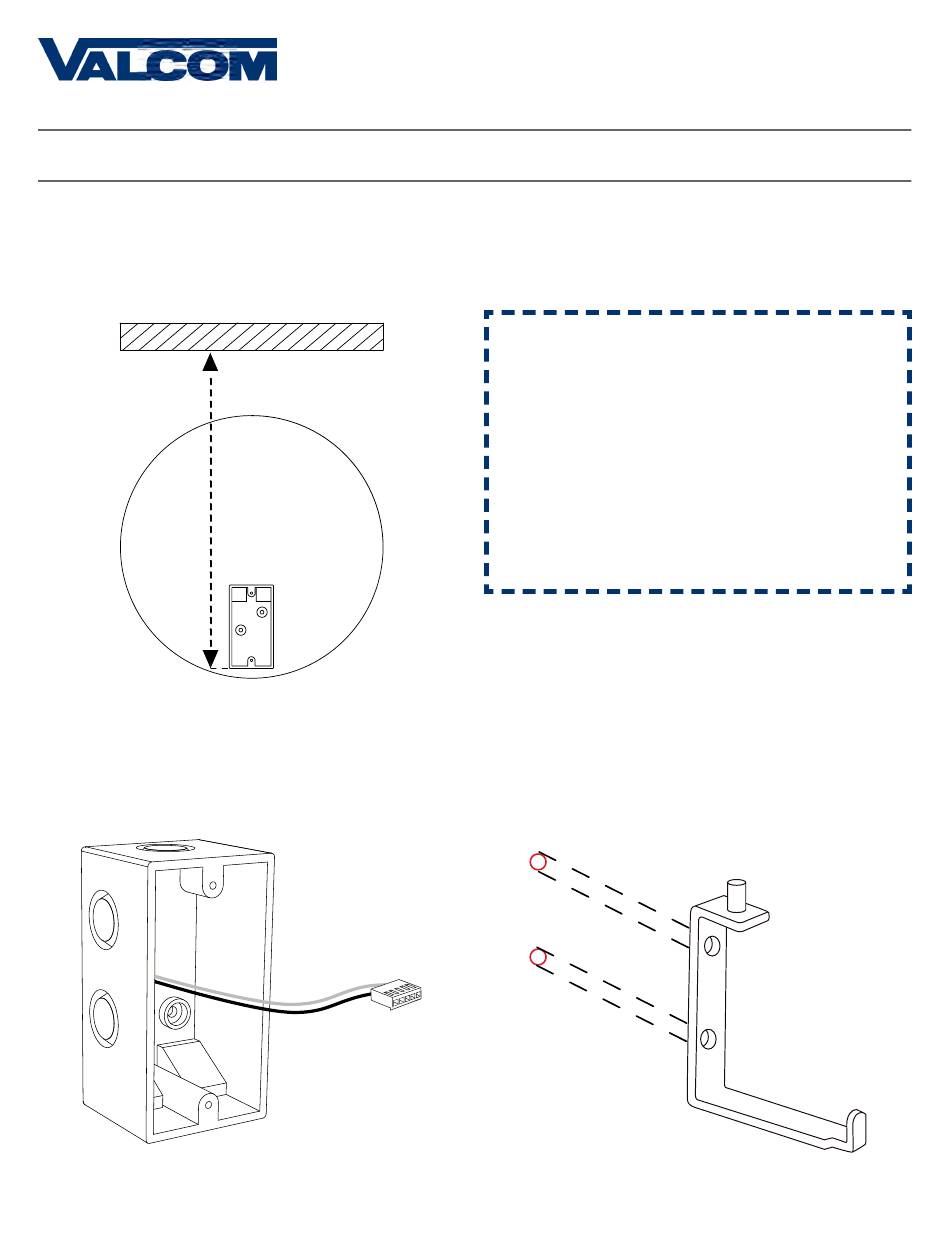

1) Install the single gang box in the wall. Leave at
least 17 inches between the bottom of the gang
box and ceiling. Confirm that the bottom of the
gang box is level with the floor.
3) Attach the communication, power,
and grounding wires from your kit to the
communication and power wires in the gang box.
See the Wiring Guide included later in this manual
for additional details.
1 2
17" Minimum
43.2 cm
3 4
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
2) Run power wiring to the gang box.
For 24V power use the ORANGE and YELLOW wires
For 110V power use the BLACK and WHITE wires
CHECK YOUR WIRING
The voltage between the white and black wires
should measure 105-126 volts AC in the 115
volt model, or 21.5-26.5 volts DC in the 24
volt model.
If you are using the 24 volt model, make sure
that the wiring leading to the clock is from an
ISOLATED power supply.
4) Position the top of the mounting bracket so that it
is between 1 and 9 inches above the top of the gang
box. Use the mounting bracket, a pencil, and a level
to trace two holes on the wall, then use the 1/4 inch
drill to drill holes at the locations of the two marks.
P. 540-563-2000
F. 540-362-9800
www.valcom.com
