Flag Mount Installation - V-AW12A / V-AW16A
Included in Adapter Kit (V-SMR12A) or (V-SMR16A)

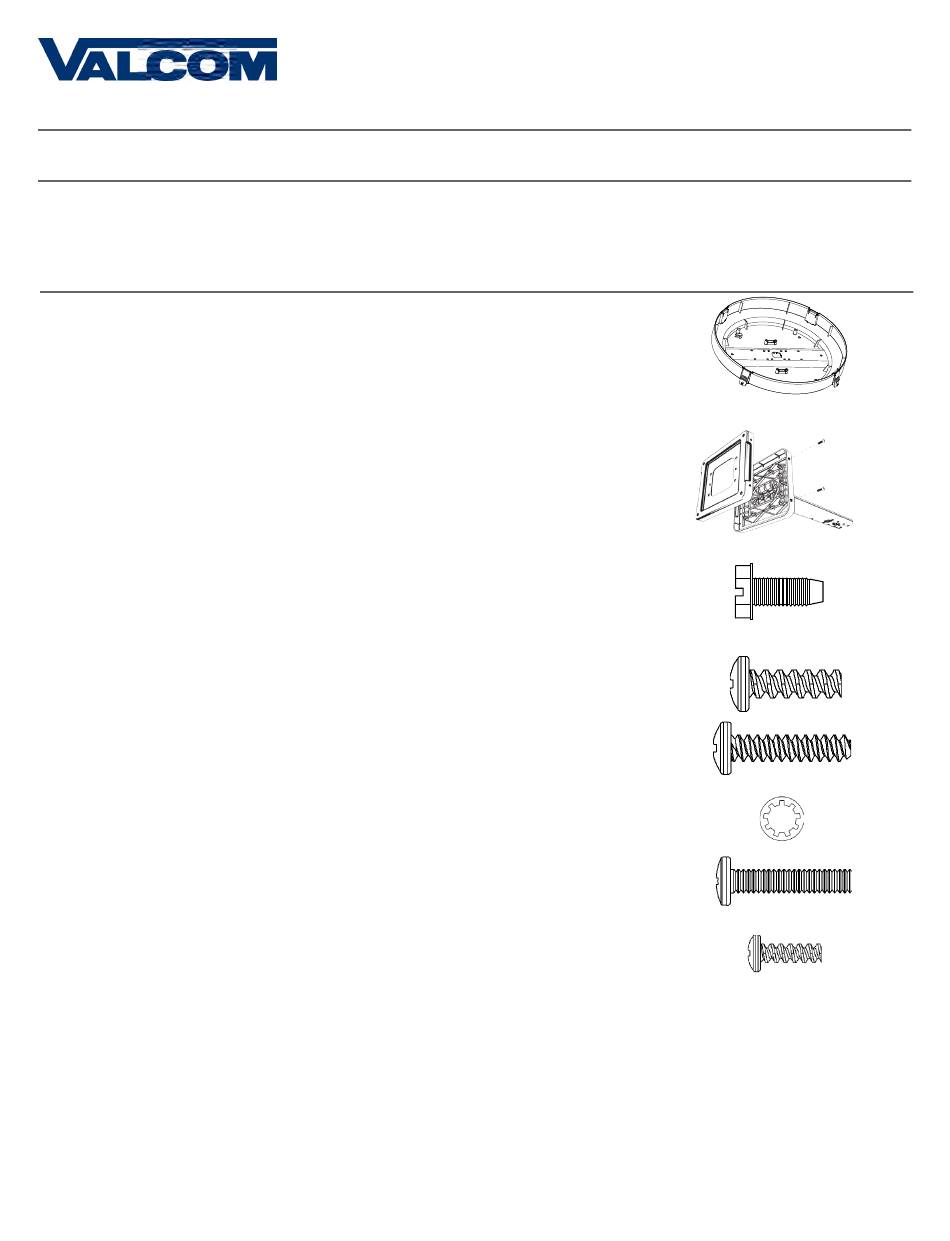

Description
Round Clock Adapter
Included in Pole Kit (V-DMKIT)
Dual-mount pole, including
mounting plate
#10-32x3/8 green screw
#8-32x7/16 screw
M3.5-1.0x10 screw (black)
Internal-tooth washer
#6-32x1 screw
Adapter tab screws
PLEASE NOTE: A user will also have to provide a Phillips-head screwdriver, a small slot-head screwdriver, a drill with a 1/4 inch drill bit, a pencil, a double
gang box, four wall anchors that can support 50 lbs and a maximum screw size of 10x1.5", four #8 screws for the wall anchors, four #6-32x1 screws for
attaching the mounting plate to the gang box, any equipment needed to install the gang box, and any additional wiring needed to extend the power or
ground cables.
If any of the items listed in the kits are missing, you may contact Valcom and order a replacement kit.
Quantity
1
1
1
8
4
8
4
4
