Double Mount Installation - V-AW12LP / V-AW16LP
INSTALL, POWER, AND SET YOUR MASTER CLOCK OR REPEATER BEFORE POWERING THE SECONDARY
WIRELESS CLOCKS
A Valcom Master Clock and any Repeaters must be installed, powered, and set up BEFORE you attempt to set up a wireless clock system. If
the Master Clock and Repeaters are not properly installed and powered, the secondary clocks will not synchronize.

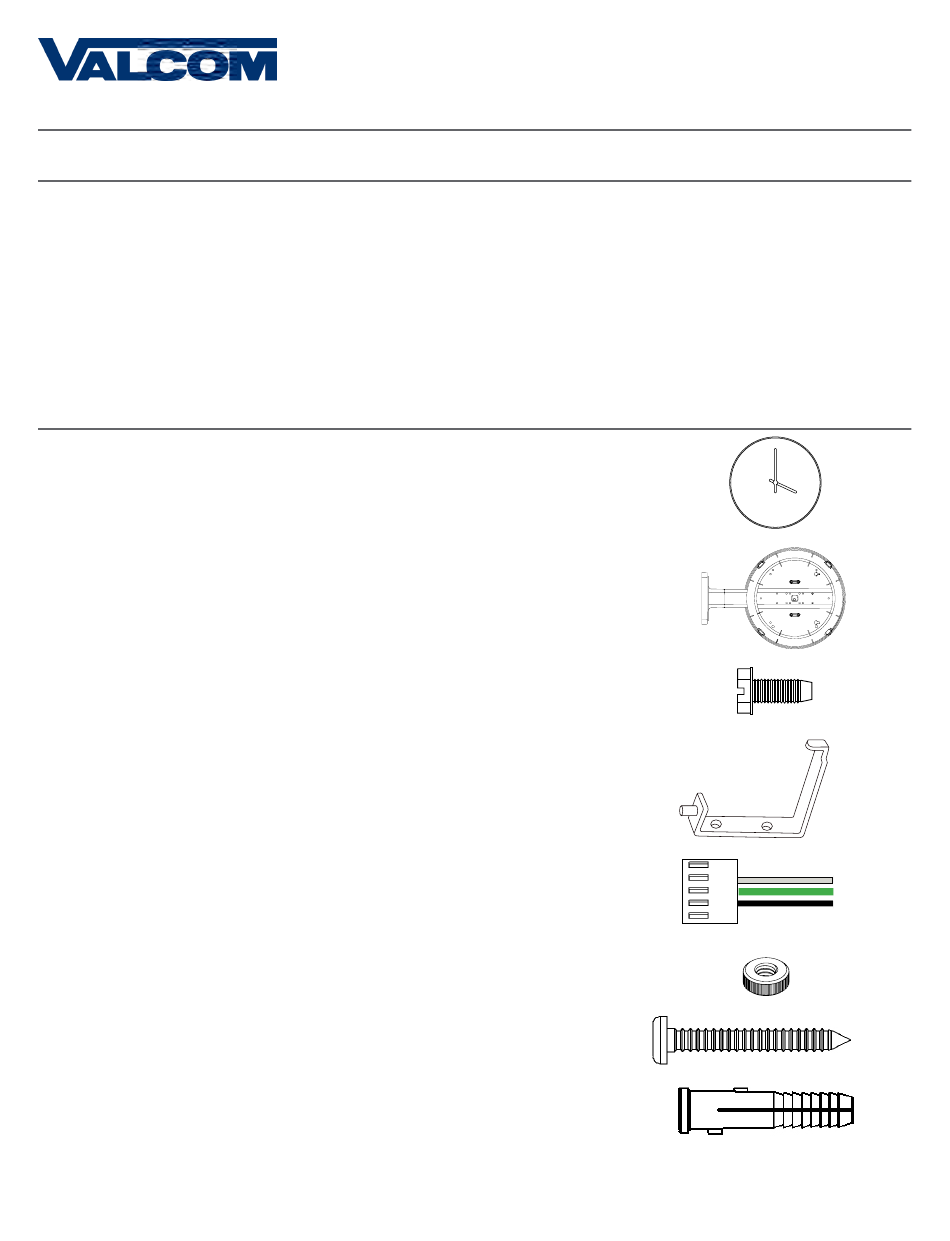

Included in Package
Description
V-AW12LP/V-AW16LP round
analog clock
Included in Double Mount Kit
Dual-mount pole, including
mounting plate and adapters
#10-32x3/8 green screw
Included in Wiring Kit (A-WK-12-1V)
Mounting Bracket
Power/grounding wires
and connector
Bracket securing nut
#10x1.5 Self-tapping screw
Wall anchor
PLEASE NOTE: A user will also have to provide a Phillips-head screwdriver, a small slot-head screwdriver, a drill with a 1/4 inch drill bit, a pencil, a double
gang box, four wall anchors that can support 50 lbs and a maximum screw size of 10x1.5", four #8 screws for the wall anchors, four #6-32x1 screws for
attaching the mounting plate to the gang box, any equipment needed to install the gang box, and any additional wiring needed to extend the power or
ground cables.
VERY IMPORTANT:
Quantity
2
1
1
1 (not used)
1
1 (not used)
2
2
