Wall Mount Installation - V-AW12B / V-AW16B

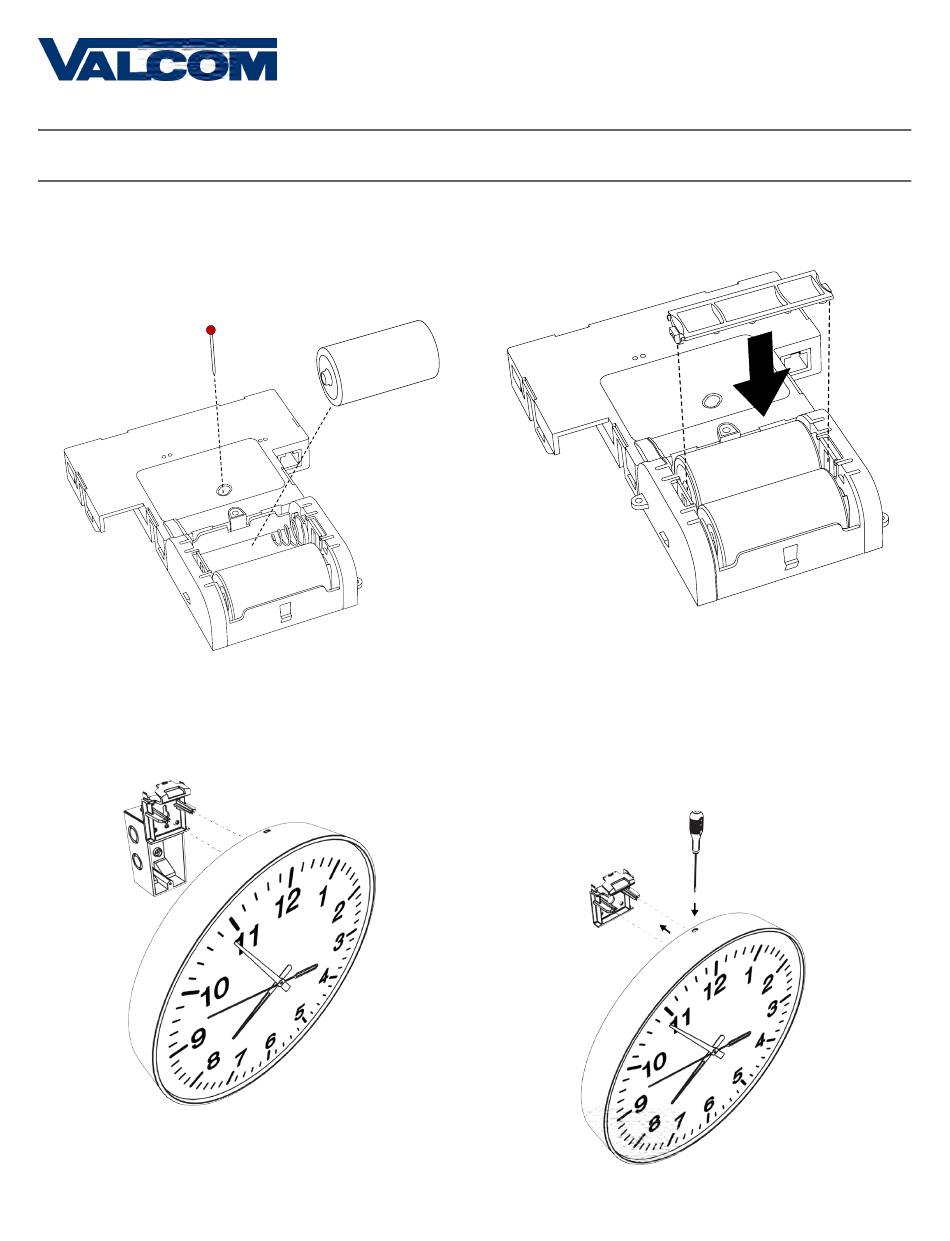

5) First remove the gearbox pin, then insert the
batteries into the clock. If the clock is within range
of a powered transmitter, the hands should begin to
move within a minute.
1
7) Attach the clock to the mounting piece by sliding
the clock back onto it. You should hear a snapping
noise as the latch engages.
5
2
7
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA
6) Place the cover back onto the battery pack. You
should hear a snapping noise as the latches engage.
8) If you need to take the clock off the wall after
the installation has been completed, use a flat-blade
screwdriver or eyeglasses screwdriver to lower the
mounting piece latch, then slide the clock off the
mounting piece.
