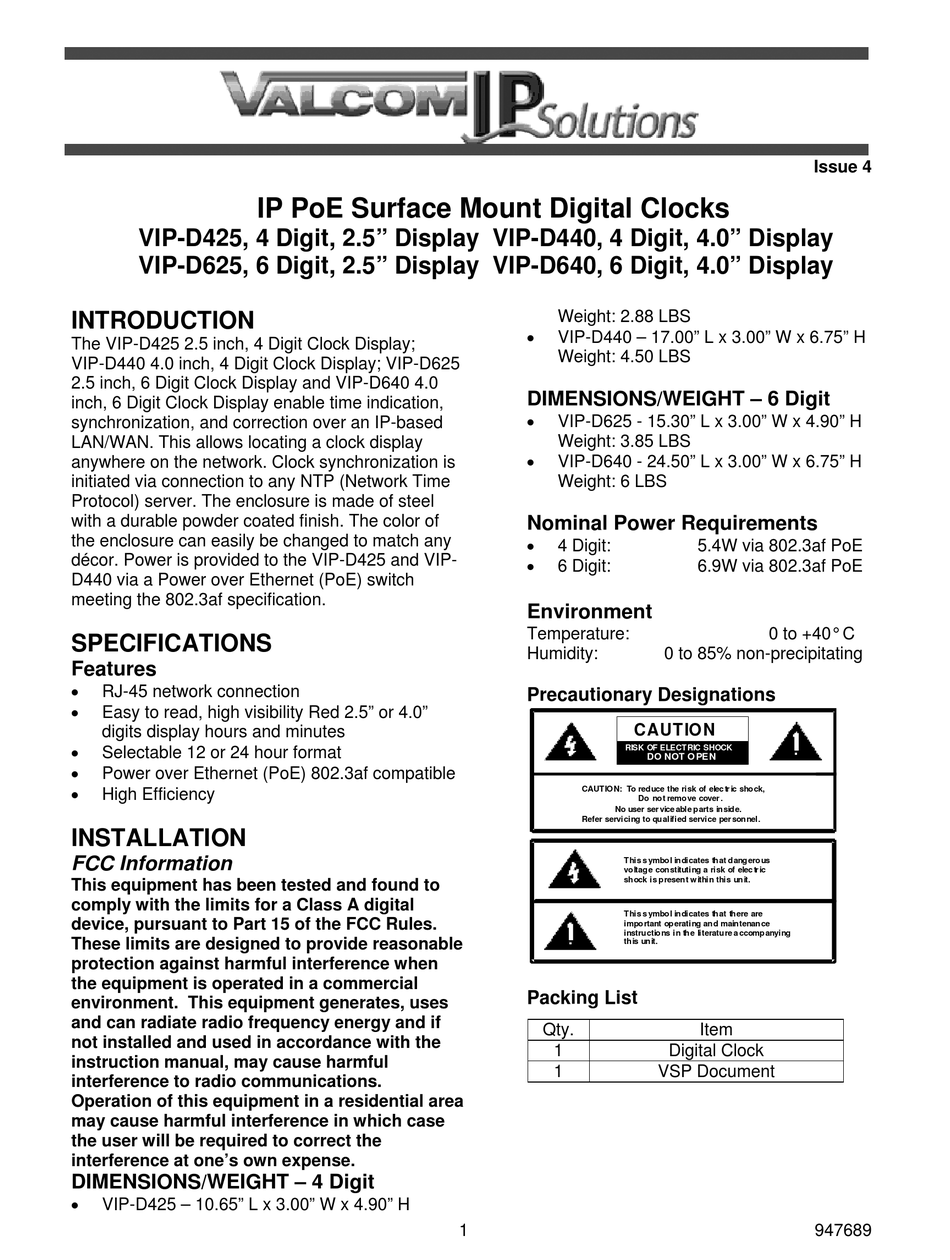

Valcom VIP-D425 User Manual

VIP-D425, 4 Digit, 2.5" Display VIP-D440, 4 Digit, 4.0" Display
VIP-D625, 6 Digit, 2.5" Display VIP-D640, 6 Digit, 4.0" Display

INTRODUCTION

The VIP-D425 2.5 inch, 4 Digit Clock Display;
VIP-D440 4.0 inch, 4 Digit Clock Display; VIP-D625
2.5 inch, 6 Digit Clock Display and VIP-D640 4.0
inch, 6 Digit Clock Display enable time indication,
synchronization, and correction over an IP-based
LAN/WAN. This allows locating a clock display
anywhere on the network. Clock synchronization is
initiated via connection to any NTP (Network Time
Protocol) server. The enclosure is made of steel
with a durable powder coated finish. The color of
the enclosure can easily be changed to match any
décor. Power is provided to the VIP-D425 and VIP-
D440 via a Power over Ethernet (PoE) switch
meeting the 802.3af specification.

SPECIFICATIONS

Features


RJ-45 network connection

Easy to read, high visibility Red 2.5" or 4.0"
digits display hours and minutes

Selectable 12 or 24 hour format

Power over Ethernet (PoE) 802.3af compatible

High Efficiency

INSTALLATION

FCC Information
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates, uses
and can radiate radio frequency energy and if
not installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case
the user will be required to correct the
interference at one's own expense.
DIMENSIONS/WEIGHT – 4 Digit

VIP-D425 – 10.65" L x 3.00" W x 4.90" H
IP PoE Surface Mount Digital Clocks
Weight: 2.88 LBS

VIP-D440 – 17.00" L x 3.00" W x 6.75" H
Weight: 4.50 LBS
DIMENSIONS/WEIGHT – 6 Digit

VIP-D625 - 15.30" L x 3.00" W x 4.90" H
Weight: 3.85 LBS

VIP-D640 - 24.50" L x 3.00" W x 6.75" H
Weight: 6 LBS

Nominal Power Requirements


4 Digit:

6 Digit:

Environment

Temperature:
Humidity:
Precautionary Designations
CAUTIO N
RISK OF ELECTRIC SHOCK
CAUTION: To reduce the risk of elec tr ic shock,
No user ser vice able parts inside.
Refer servicing to qualified service per sonnel.
This s ymbol indicates that dangerous
voltage constituting a risk of elec tr ic
shock is present w ithin this unit.
This s ymbol indicates that there are
important operating and maintenance
instructions in the literature a ccompanying
this unit.
Packing List
Qty.
1
1
1
Issue 4
5.4W via 802.3af PoE
6.9W via 802.3af PoE
0 to +40° C
0 to 85% non-precipitating
DO NOT O PEN
Do not remove cover .
Item
Digital Clock
VSP Document
947689
