Valcom V-AW12A Installation Manual page 73

Diagnostic Test #2 - Signal Quality
The purpose of Diagnostic #2 is to determine the quality
of the synchronization signal.
Diagnostic #2 may be enabled by pressing the diagnostic
button twice. If the wireless clock is performing this
diagnostic, then a green LED on the movement will flash
twice every three seconds. It will continue to flash twice
every three seconds until the diagnostic is complete.
During the diagnostic, the second hand will display the
signal quality by pointing to a number from 1 to 10. On
this scale, 10 indicates the best signal quality while 1
indicates poor signal quality.
While the second hand is indicating the signal quality,
the hour and minute hands will continue to display the
time. After three minutes, the Diagnostic will end and
the second hand will return to displaying the time.
Diagnostic Test #3 - Manufacturing Default
The purpose of Diagnostic #3 is to bring the clock back to 12:00:00 and reset any user-configured settings
to the manufacturer's default.
Diagnostic #3 may be enabled by pressing the diagnostic button three times. If the wireless clock is
performing this diagnostic, then a green LED on the back will flash three times with a five second break
between each flash. The LED will continue to flash green until the diagnostic is complete. The clock will
confirm that the diagnostic is complete when the LED shines a different color.
If the LED is flashing red:
NUMBER OF FLASHES
1,2
3,4,5
6,7,8
If the LED is a solid green, the test was completed successfully.
At the end of Diagnostic three, the clock hands will be set to 12:00:00. The clock will not resume normal
operation until the power has been recycled.
ERROR MESSAGE
Error detected in second hand. Confirm that hands are not hitting each other, then repeat the test.
Error detected in the minute or hour hand. Confirm that hands are not hitting each other,
then repeat the test.
Call tech support. (+1) 540-563-2000
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
USA

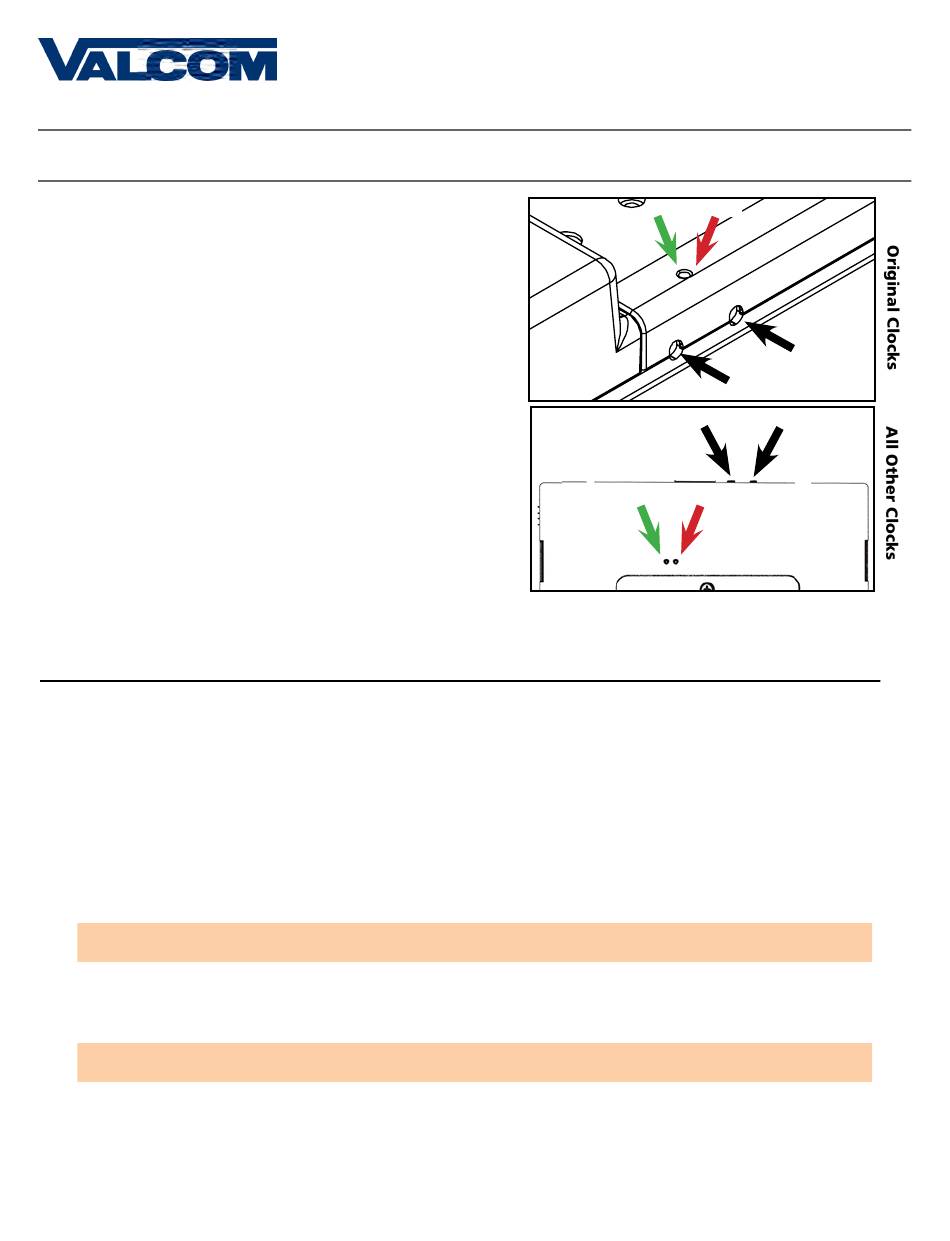

Red
Green
Transmit/Receive
Diagnostic
Transmit/Receive
Green Red
P. 540-563-2000
F. 540-362-9800
www.valcom.com
Diagnostic
73
