Flag Mount Installation - V-AW12B / V-AW16B

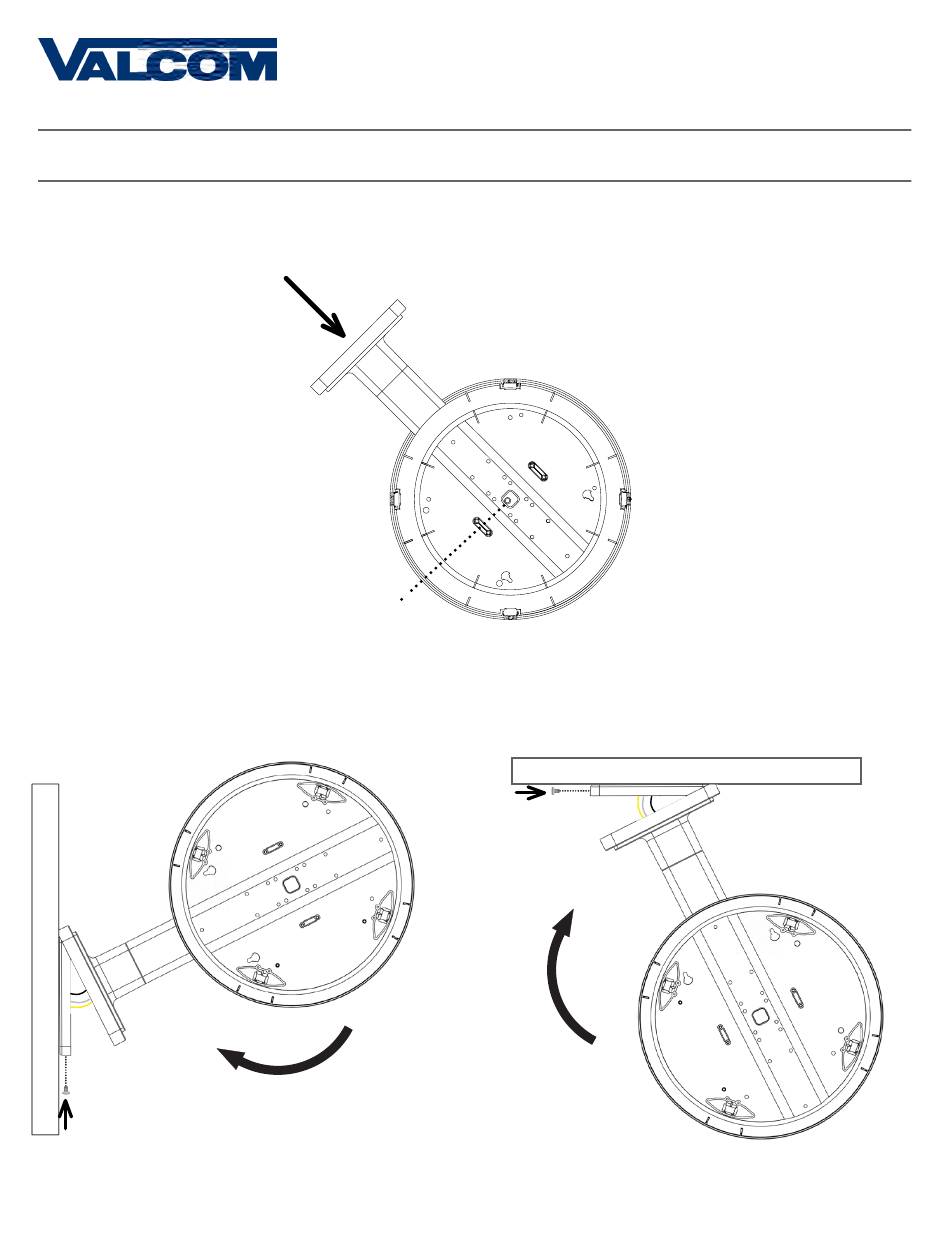

8) Thread at least fifteen inches (38.1cm) of wiring from the gang box through the bottom of the pole until
each wire exits through the hole in the adapter.
9) Attach the base of the pole to the mounting plate so that the lip is on the top of the base, and the
holes for the screws are on the bottom of the base. Hang the base on the mounting plate, attach the
wires from the bottom of the pole to the wires in the gang box, then screw the other side of the base
onto the mounting plate using the two black screws you set aside before.
2
2
WALL
Adapter hole
1
1
