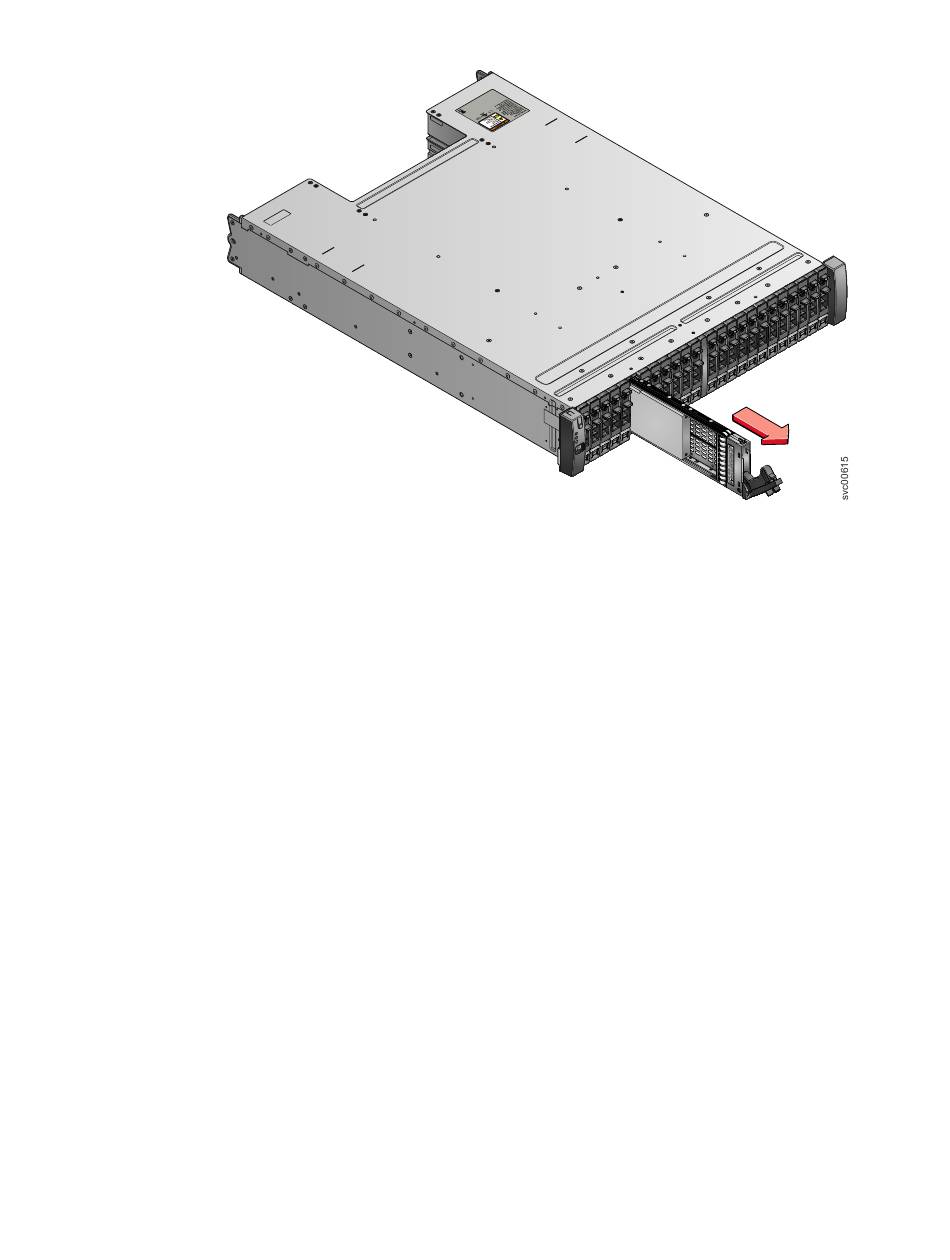

Figure 62. Removing the 2.5" drive
4. Pull out the drive.
5. Push the new drive back into the slot until the handle starts to move.
6. Finish inserting the drive by closing the handle until the locking catch clicks

Replacing enclosure end caps

To replace enclosure end caps, use this procedure.
About this task
To remove either the left or right end cap, complete the following steps:
Procedure
1. If the enclosure is on a table or other flat surface, elevate the enclosure front
2. Grasp the end cap by the blue touch point and pull it until the bottom edge of
3. Lift the end cap off the chassis flange.
To install either the left or right end cap, complete the following steps:
4. Fit the slot that is on the top of the end cap over the tab on the top of the
5. Rotate the end cap down until it snaps into place. Make sure that the inside
244
Storwize V7000 Unified: Problem Determination Guide Version
into place.
slightly or carefully extend the front over the table edge.
the end cap is clear of the bottom tab on the chassis flange.
chassis flange.
surface of the end cap is flush with the chassis.
