11.2 Maintenance of Suction
Lines

11.3 Maintenance of Reactor

15.710010-V5.0
The suction lines are equipped with foot valve and filter nut.
The reed contacts are integrated in the suction line body.
The floats with magnet core are located axially on the valve body and are
sliding.
The foot valve should be dismounted and cleaned occasionally, at the latest
when the suction performance drops.
The function symbol (NO contact) must be present on the top surface of the two
floats.
If this is not the case, disconnect the float and reverse the polarity.

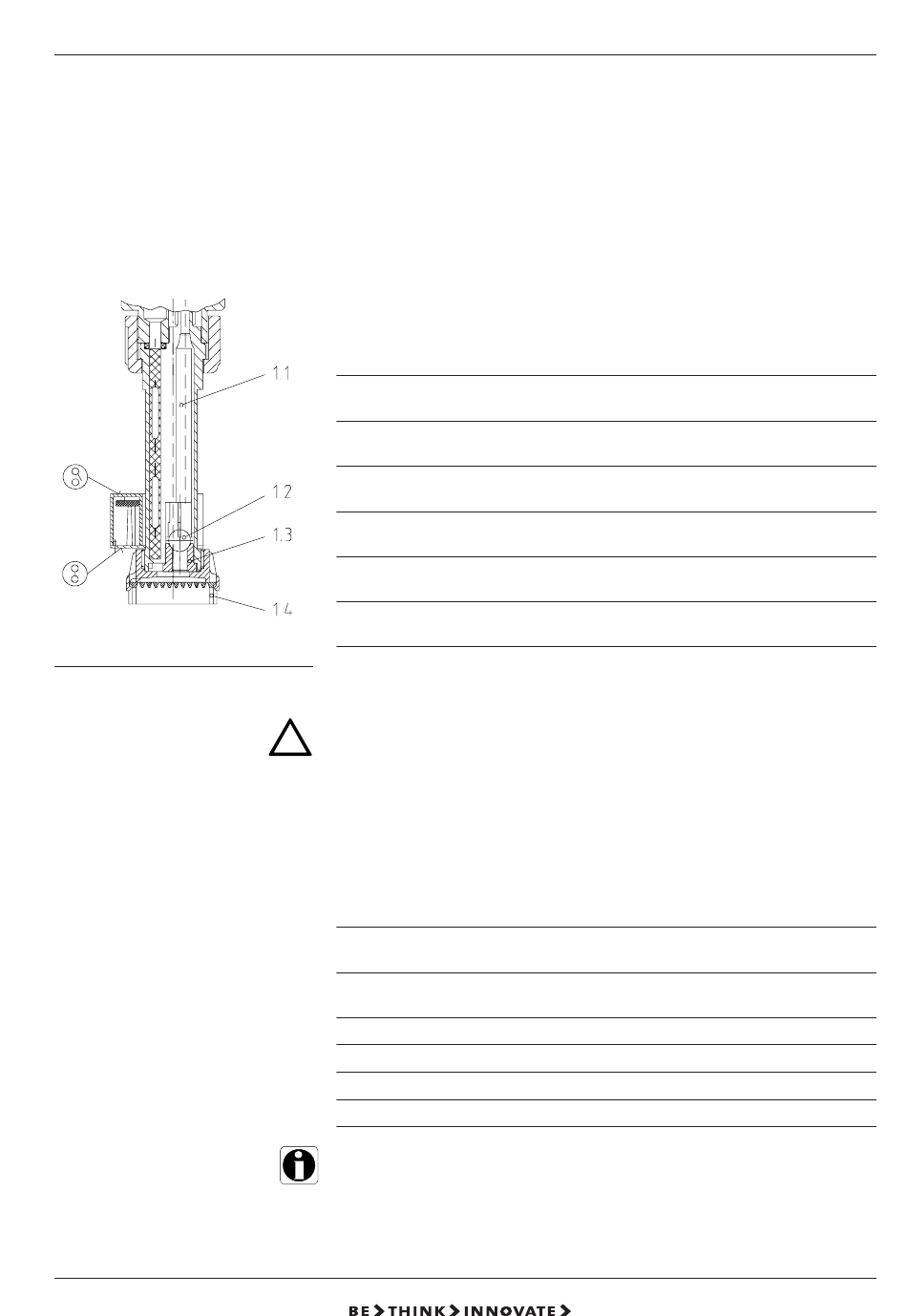

Spare parts for suction line
Item Part No.
1.1 10.7372-406
10.7371-406
1.2 10.139
10.139
1.3 10.7299-400
1.4 10.4559-401
WARNING!
!
Spare parts for the reactor (valves, 3x)
Part No. Designation
553-650 For system back-pressure less than 3 bar
553-651 For system back-pressure greater than 3 bar
553-652 For system back-pressure less than 3 bar
553-653 For system back-pressure greater than 3 bar
553-654 For system back-pressure less than 3 bar
553-655 For system back-pressure greater than 3 bar
NOTE
Designation
Float switch, PVC, DN4
Float switch, PVC, DN8
Ball, ceramic
Ball, glas
Valve seat, gray PVC
Filter nut, gray PVC
Prior to any maintenance work on the reactor, purge
the system with water until no more chemicals are
present.
Check the valves on the reactor for leaks each time
maintenance work is carried out on the chlorine dioxide
system. Replace valves if necessary.
The reactor valves are not identical to the valves of the
dosing pumps!
Do not interchange the valves!
System
164-030D to
164-120D
164-350D to
164-2000D
164-030D to
164-120D
164-350D to
164-2000D
164-030D to
164-2000D
164-350D to
164-2000D
System
164-150C to
164-750C
164-150C to
164-750C
164-1300C
164-1300C
164-2500C
164-2500C
