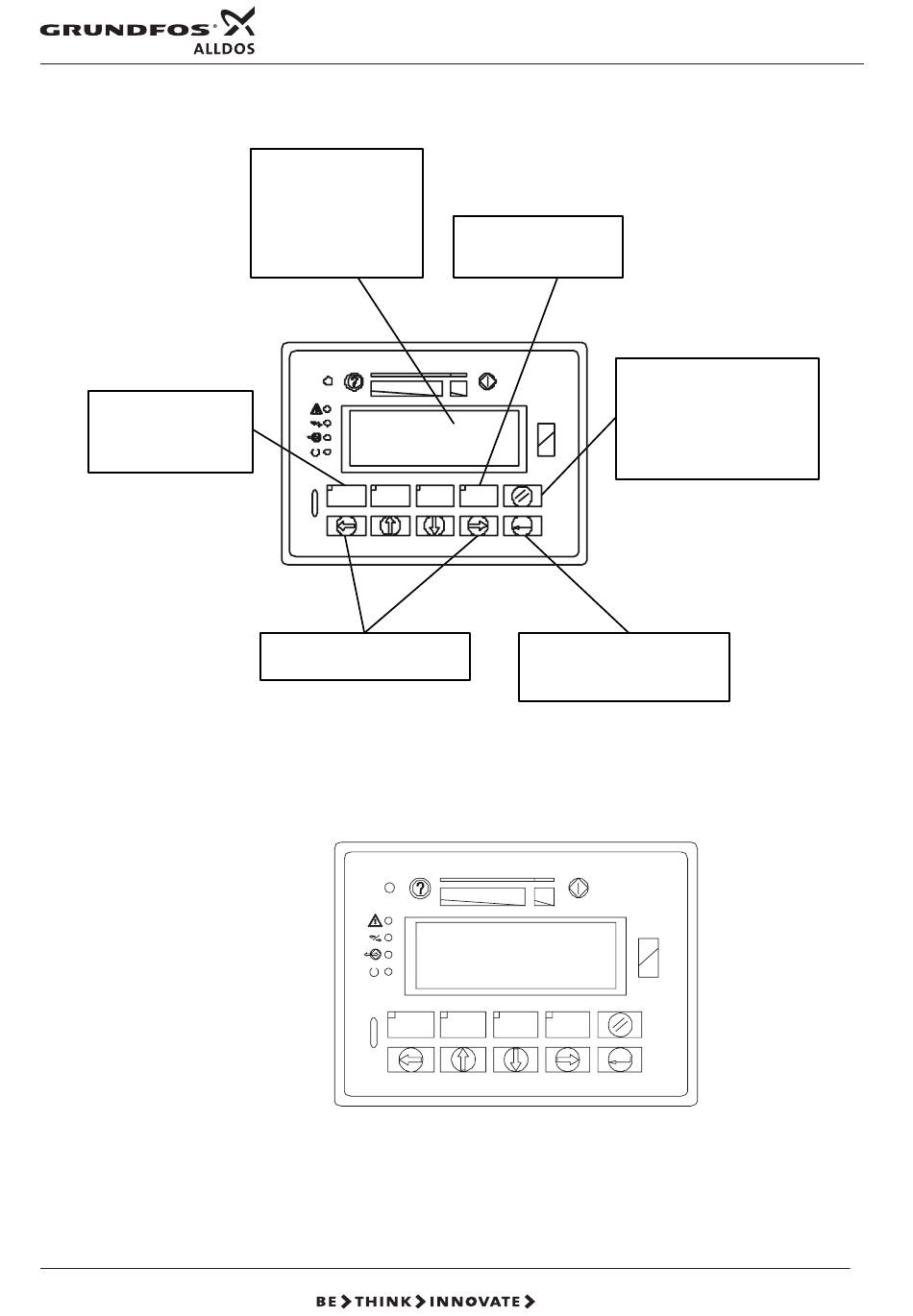

Short guide

Function keys
"F1", "F2", F3"
» Switch to the
respective submenu
Display
» 1 = Use "F1" to switch
over to the submenu
» 2 = Use "F2" to switch
over to the submenu
» 3 = Use "F3" to switch
over to the submenu
Main menu
1 Automatic mode
2 Manual mode
3 Logbook
F1 F2 F3
"Arrow" keys
» Scroll in the respective menu
Installation in operation (Example: automatic mode, current input signal)
F1
The display indicator while the installation is in operation (active) only contains the
most important information, such as dosing in% terms, amount of bypass water and
installation capacity in g/h. The user cannot switch to a submenu by pressing "F1",
"F2" and "F3" here.
"F4" key
» Acknowledgement of
alarm messages
F4
"ENTER" key
» Switch the system "on / off"
» Confirm inputs
auto: 20 mA activ
dosing: 100 %
bypass: 435 l/h
ClO2: 10 g/h
F2 F3 F4
Oxiperm 164 150-2500 g en
"ESCAPE" key
» Retur n to the preceding
menu
» Return to the main menu
(press key several times)
» Cancel inputs
