Oxiperm 164 150-2500 g en

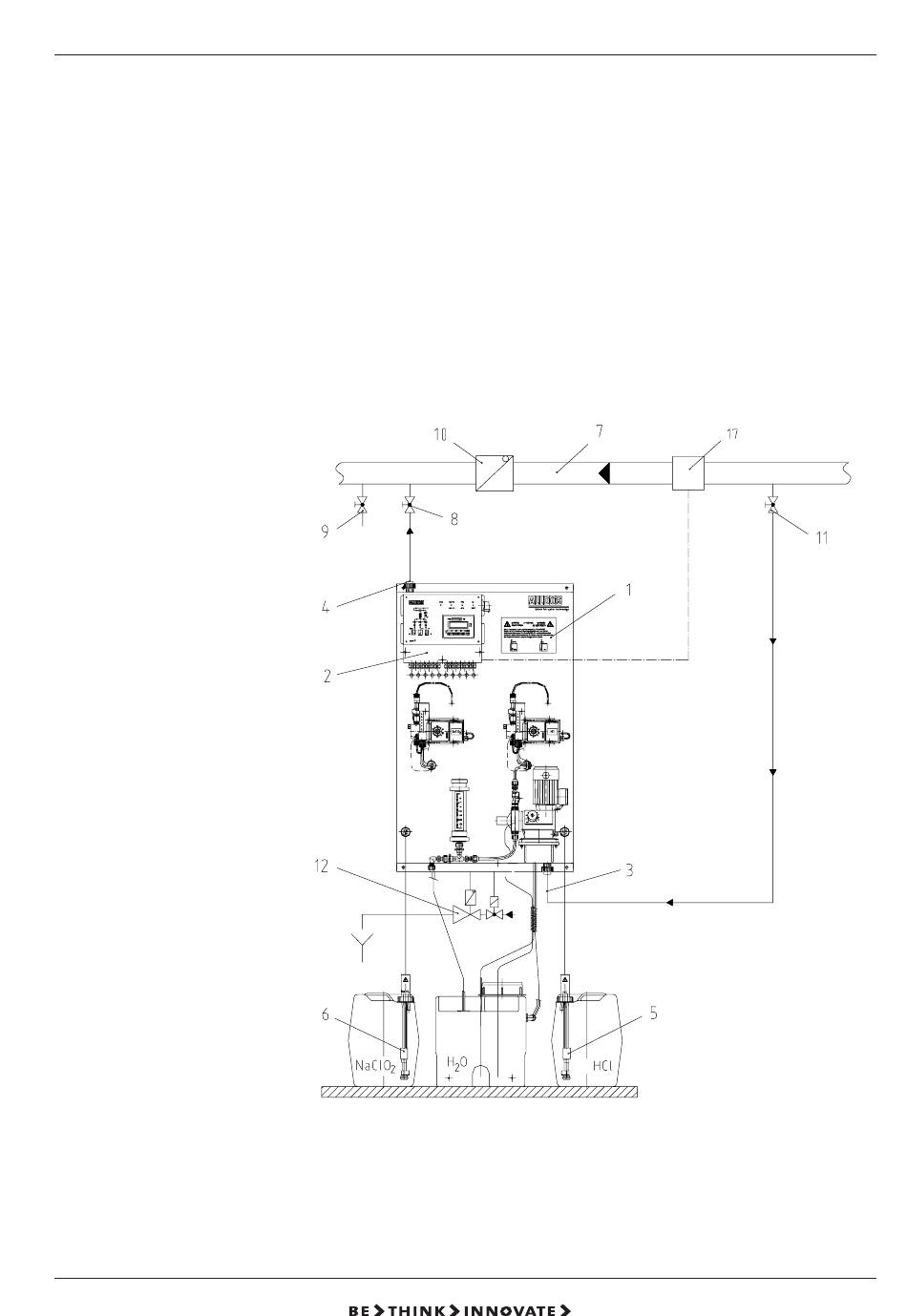

6.4.2 Installation Diagram of
Oxiperm 164 Chlorine
Dioxide System with Internal
Bypass Pump
15.710010-V5.0
Oxiperm 164 with internal bypass pump
As an option, the Oxiperm
instead of the solenoid valve. This version is required for treating closed water
circuits, i.e. the sampling of dilution water and the addition of chlorine dioxide
solution are present in the same water circuit.
The bypass pump is only designed for compensation of the internal friction losses
of the Oxiperm ® C164 and for counteracting the pressure losses of approx. 0.1 bar
(1 m water gauge) in the solution line to the injector.
The solution line to the injector should therefore be kept as short as possible. The
geodetic difference in height between the connection of the solution line and the
injector must therefore not exceed 1 m.
® C 164 can be delivered with an internal bypass pump
25
