6.4.4 Installation Diagram of
Oxiperm 164 Chlorine
Dioxide System with External
Booster Pump and Load Unit
15.710010-V5.0

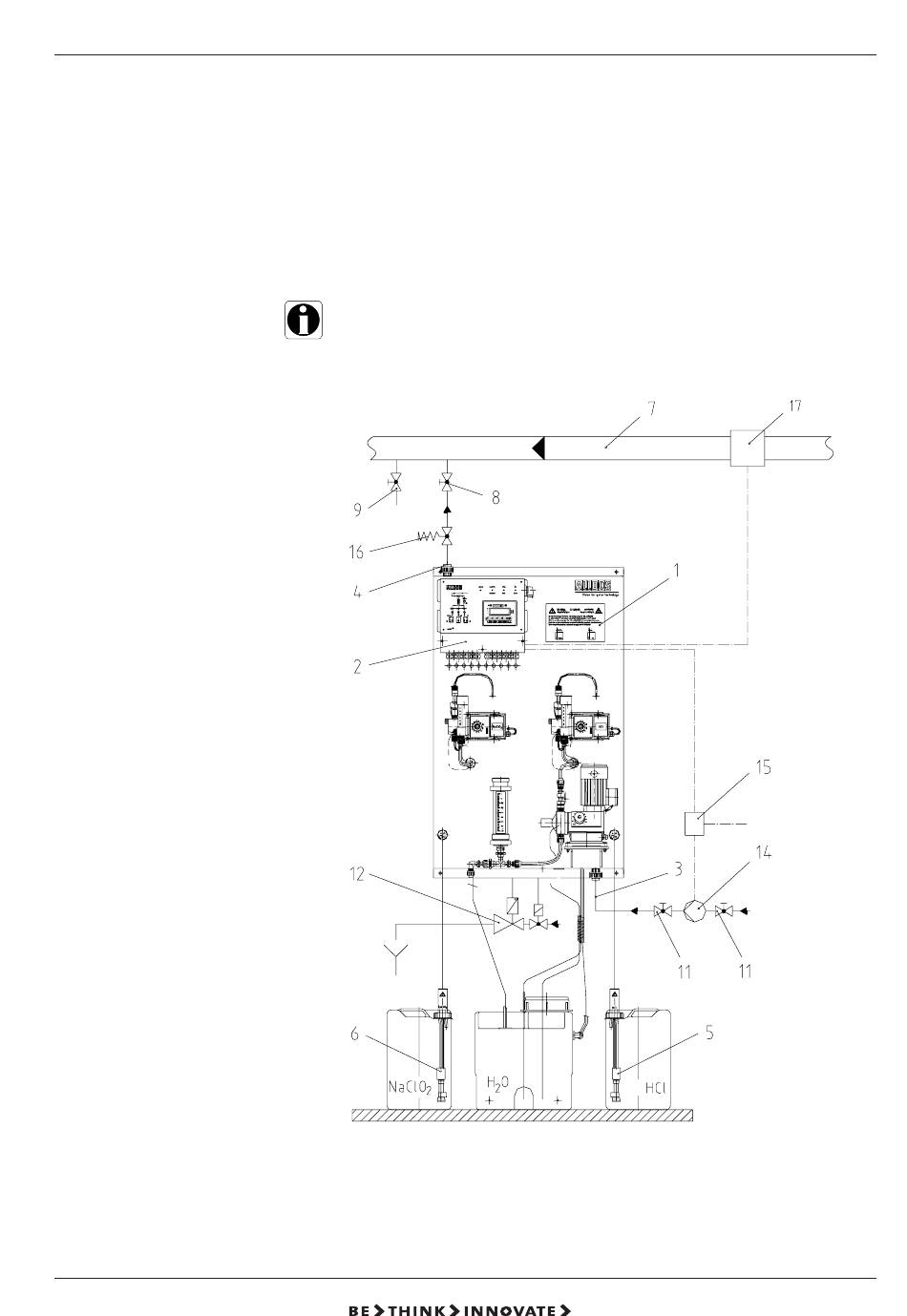

Oxiperm 164 with external booster pump
An external booster pump can also be connected to the dilution water line as a
further option. This version is required if sampling of the dilution water and addition
of the chlorine dioxide solution are not in the same water circuit, and the system
pressure at the injector is higher than the pressure of the dilution water supply line.
In this version, a load unit is required in addition, and is controlled directly by the
system electronics (see Section 14, Load Unit, for terminal connections).
NOTE Booster pump and load unit must be selected
separately (see Section 14).
