6.7.1 Profibus/Ethernet
(Option)
Profibus-DP module
Meaning of connections
Ethernet TCP / IP
15.710010-V5.0
The controller of the Oxiperm C164 can be optionally equipped with Profibus
or Ethernet.

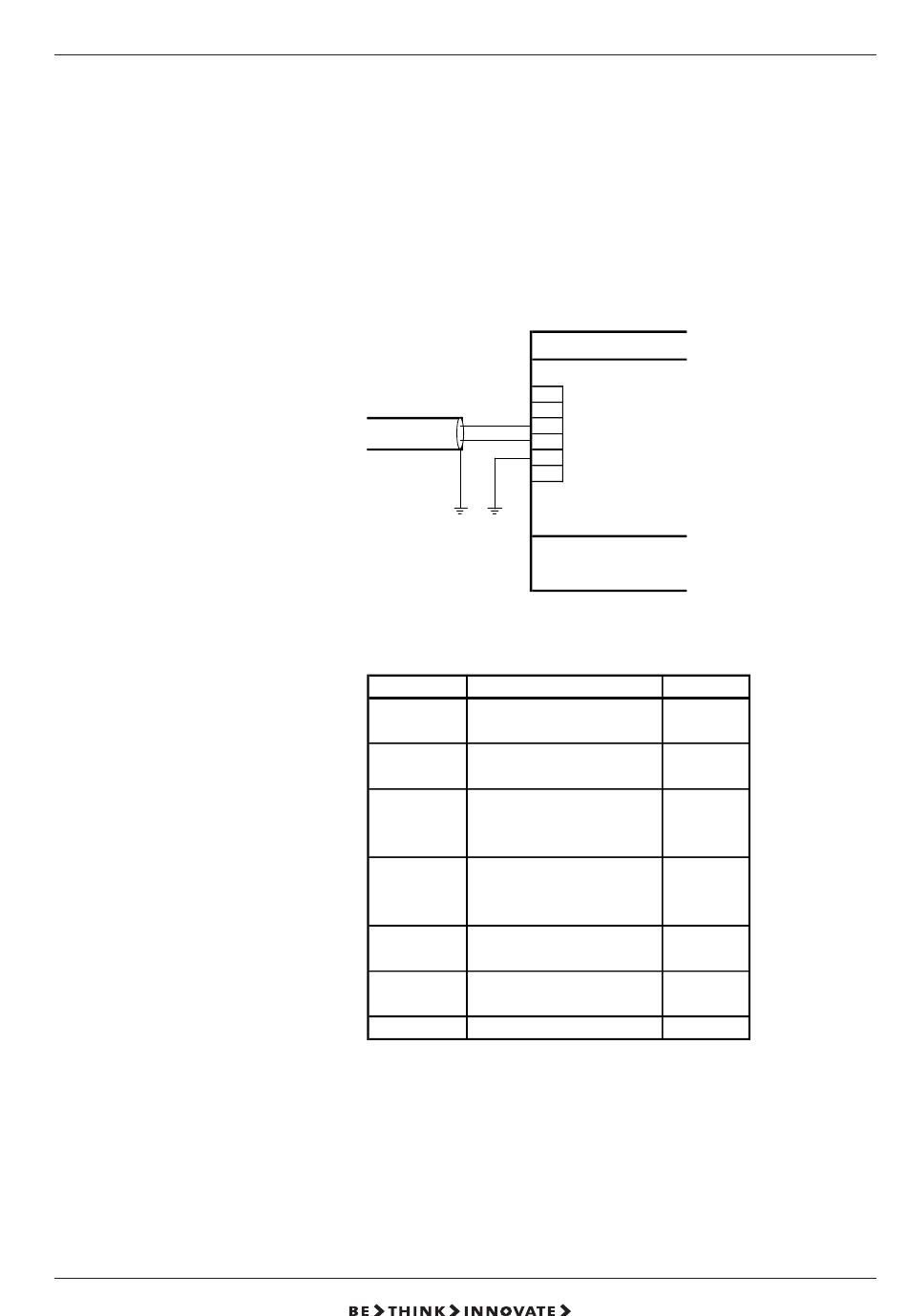

The Profibus-DP connection is made via a 6-pin plug (see Profibus connection
diagram).
Signal Meaning
CNTR-P / RTS Control signal
for repeater
PGND Shield /
protective earth
RxD/TxD-N Received data /
transmitted data
Negative
RxD/TxD-P Received data /
transmitted data
Positive
DP GND Ground to DP
+5 V
DP +5V 5 V supply
for terminating resistors
CNTR-N Control signal for repeater
Technical data
o Ethernet 10 Base-T / 100 Base-TX (10/100 Mbit/s)
o Transport protocol TCP or UDP connection
The connection is made using an RJ 45 plug of category 5.
5 DP +5V
4 DP GND
3 RxD/TxD-P
2 RxD/TxD-N
1 PGND
0 RTS
Plug
0
1
2
3
4
5
