Design and Function

5.1 System Design

15.710010-V5.0

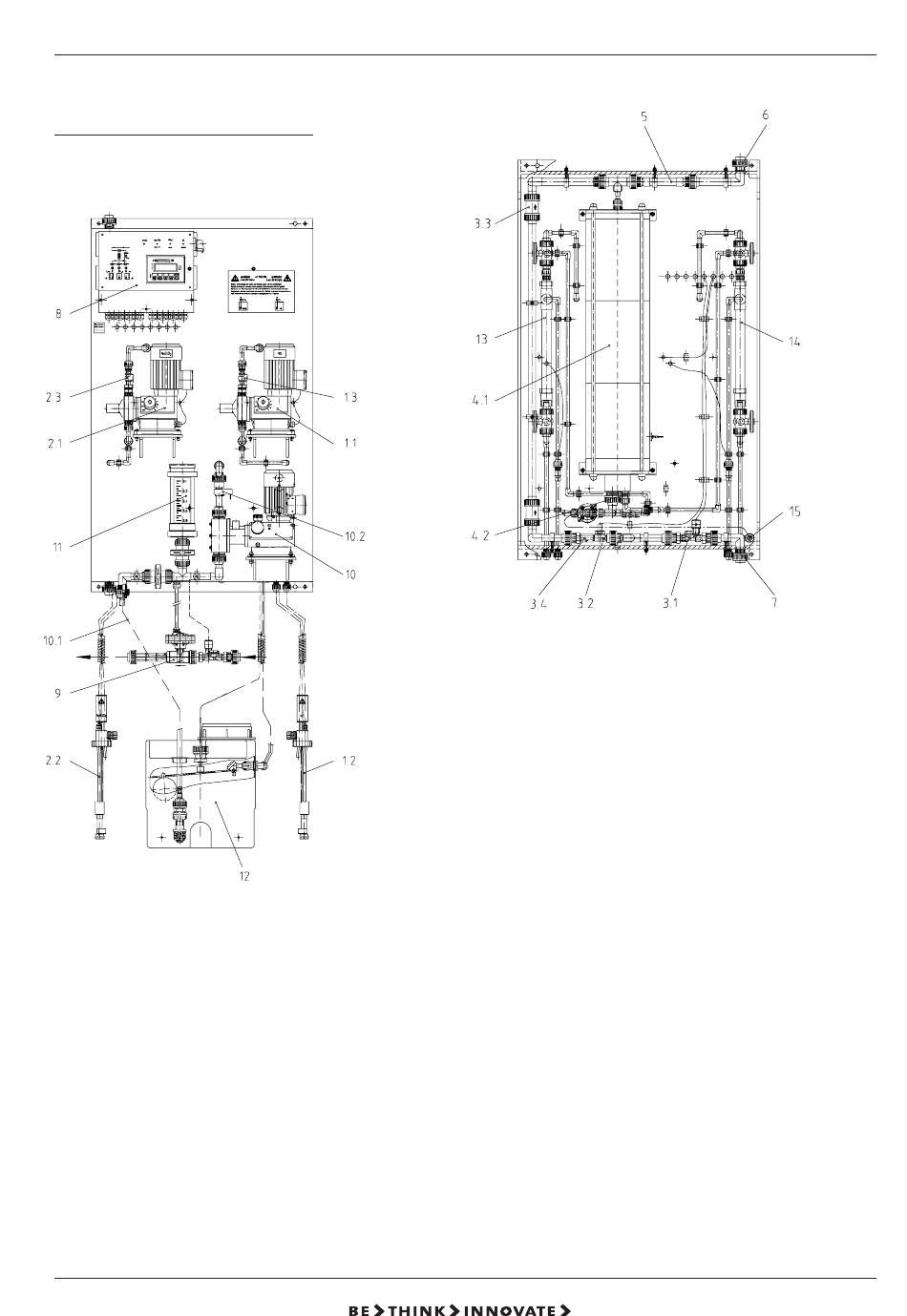

Legend:
1 Dosing system for hydrochloric acid (HCl)
Item 1.1 Dosing pump for hydrochloric acid
Item 1.2 Suction line with advanced and main empty alarm
for HCl (red)
Item 1.3 Dosing controller for HCl flow monitoring
2 Dosing system for sodium chlorite (NaClO
Item 2.1 Dosing pump for sodium chlorite
Item 2.2 Suction line with advanced and main empty alarm
for NaClO
Item 2.3 Dosing controller for NaClO
3 Bypass water line
Item 3.1 Solenoid valve (circulating pump as option)
Item 3.2 Flowmeter for bypass water
Item 3.3 Check valve
Item 3.4 Flow limiter
4 Reactor
Item 4.1 Reactor housing
Item 4.2 Reactor valves
Item 5 Post-mixer
Item 6 Connection for ClO
Item 7 Connection for bypass water
Item 8 Controller with display
Item 9 Injector for housing suction (option).
P P A A
)
2
(blue)
2
flow monitoring
2
solution line to injector
2
