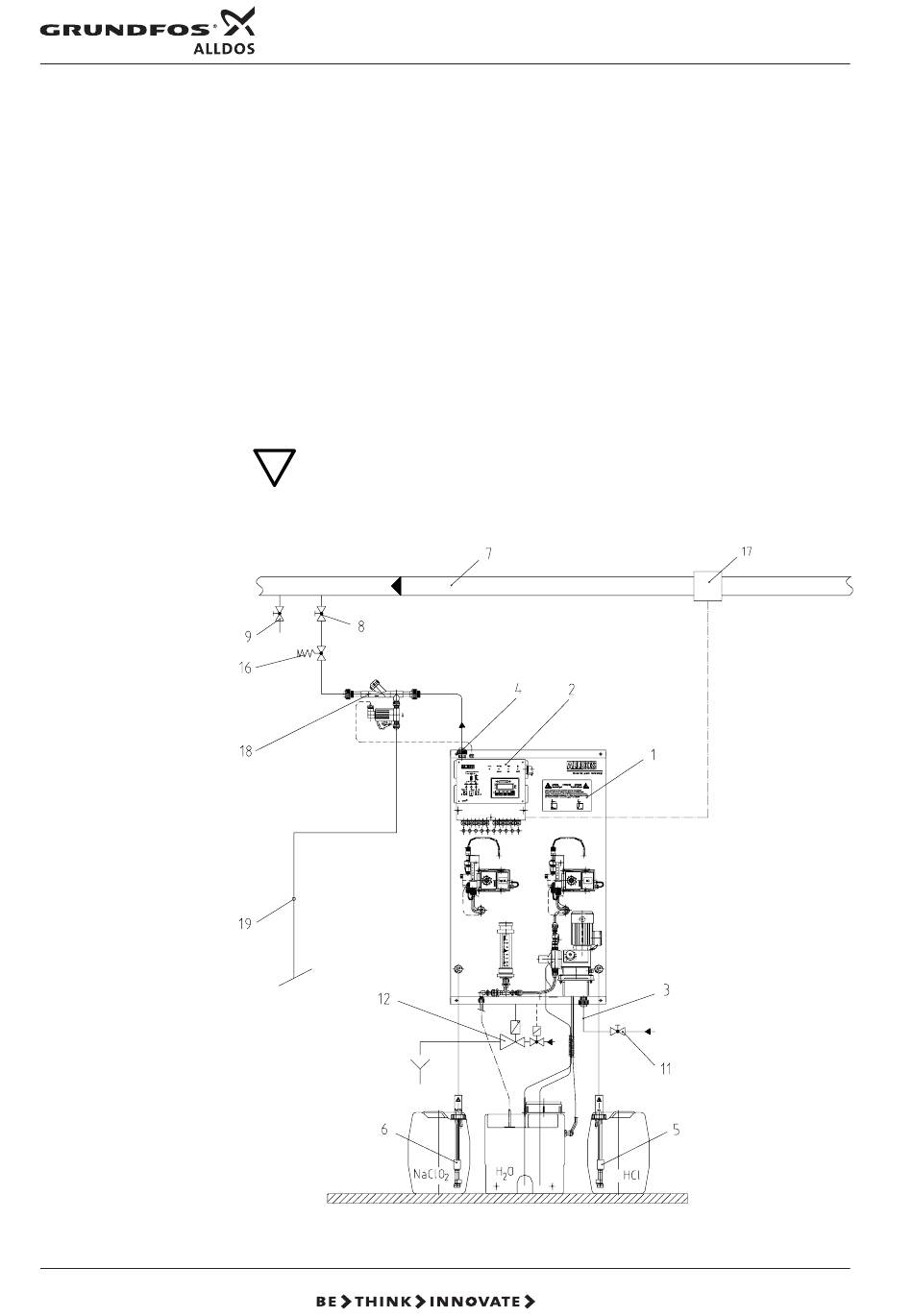

6.4.5 Installation Diagram of
Oxiperm 164 Chlorine Dioxide
System with Automatic
Purging and Drain Unit
28
Oxiperm 164 with purging and drain unit
Each system can be optionally equipped with a purging and drain solenoid valve
independent of the bypass version (bypass solenoid valve, bypass internal pump,
bypass solenoid valve/ball valve, bypass external pump).
The drain unit (item 17) is installed between the injector and the system. The drain
line (item 18) is directly connected to a neutralization plant (on site).
Application of this option:
● Purging of reactor prior to maintenance work
● Purging of reactor should the temperature rise because of a lack of dilution
water for HCl
See also Section 5.2.7 for mode of operation.
WARNING The installation model is only authorised for a
maximum system pressure of 6 bar!
