6.4 Installation Diagrams

15.710010-V5.0
General
NOTE Select or set a contact water meter in such a way that,
at max. installation output, the control pulses are not
< 5 pulses/sec. Calculation of the contacts, see Section
on "Mode/Contact input"
The control for the Oxiperm installation may process at
a max. rate of 50 pulses/sec. If a value greater than
50 pulses/sec. is calculated, use a different contact
water meter!
NOTE If the pressure at the injection unit is < 1 bar, a
pressure retention valve must be installed (pos. 16). A
pressure retention valve may not, however, be used in
system installations with an internal rotary pump, as
this pump only generates an increase in pressure of
approx. 5mWS.

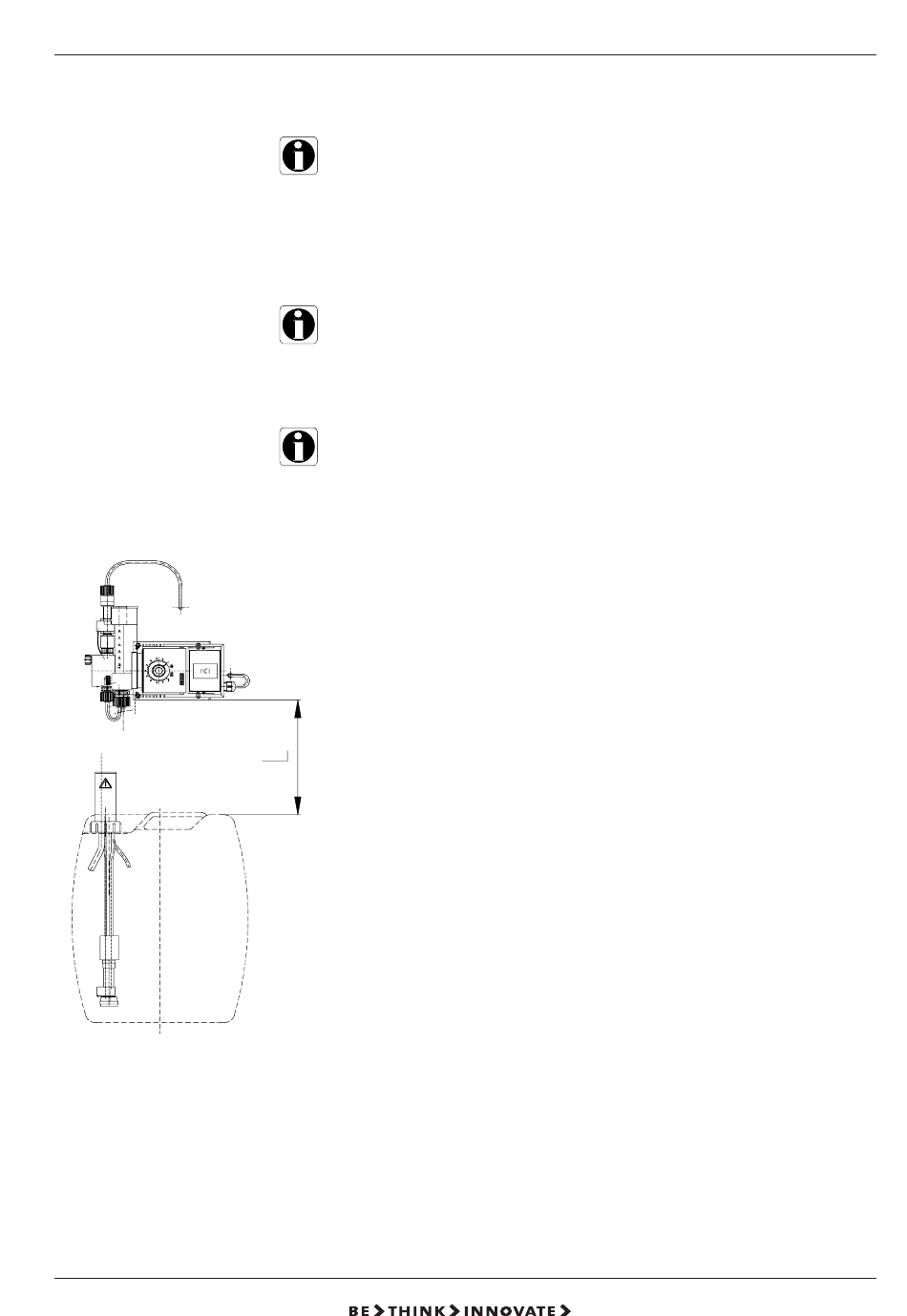

NOTE For the dosing pumps DMI with Plus3 system, ensure
that the container is always underneath the dosing
pump and the suction line is positioned in a downwards
direction, so that the chemicals can easily flow back via
the return pipe into the container (recommended L =
min. 200mm, see diagram).
Legend
Item 1 Oxiperm 164 system frame
Item 2 Oxiperm 164 electronics
Item 3 Connection for dilution water
Item 4 Connection for solution line to injector
Item 5 Suction line for HCl dosing pump
Item 6 Suction line for NaClO
Item 7 Main water line (on site)
Item 8 Shut-off valve of injector (on site)
Item 9 Sampling point (on site)
Item 10 Check valve (on site)
Item 11 Shut-off valve for dilution water sampling (on site)
Item 12 Suction unit for system frame (option)
Item 13 Tank with level monitoring (option)
Item 14 External booster pump
(see Section 14, accessories)
Item 15 Load unit for external booster pump
(see Section 14, accessories)
No. 16 Pressure loading valve (supplied by the customer) if the system
pressure is < 1 bar
No. 17 IDM (4-20 mA) or contact water meter for the proportional
control of the installation (note the pulses from the contact water
meter see "NOTES" above)
Item 18 Drain unit (option) combined with purging solenoid valve
(see also Section 5.1)
Item 19 Drain line (on site)
dosing pump
