14.2 Load Unit for Booster
Pump
15.710010-V5.0
The booster pump is connected to the controller of the Oxiperm C164 via a load
unit.

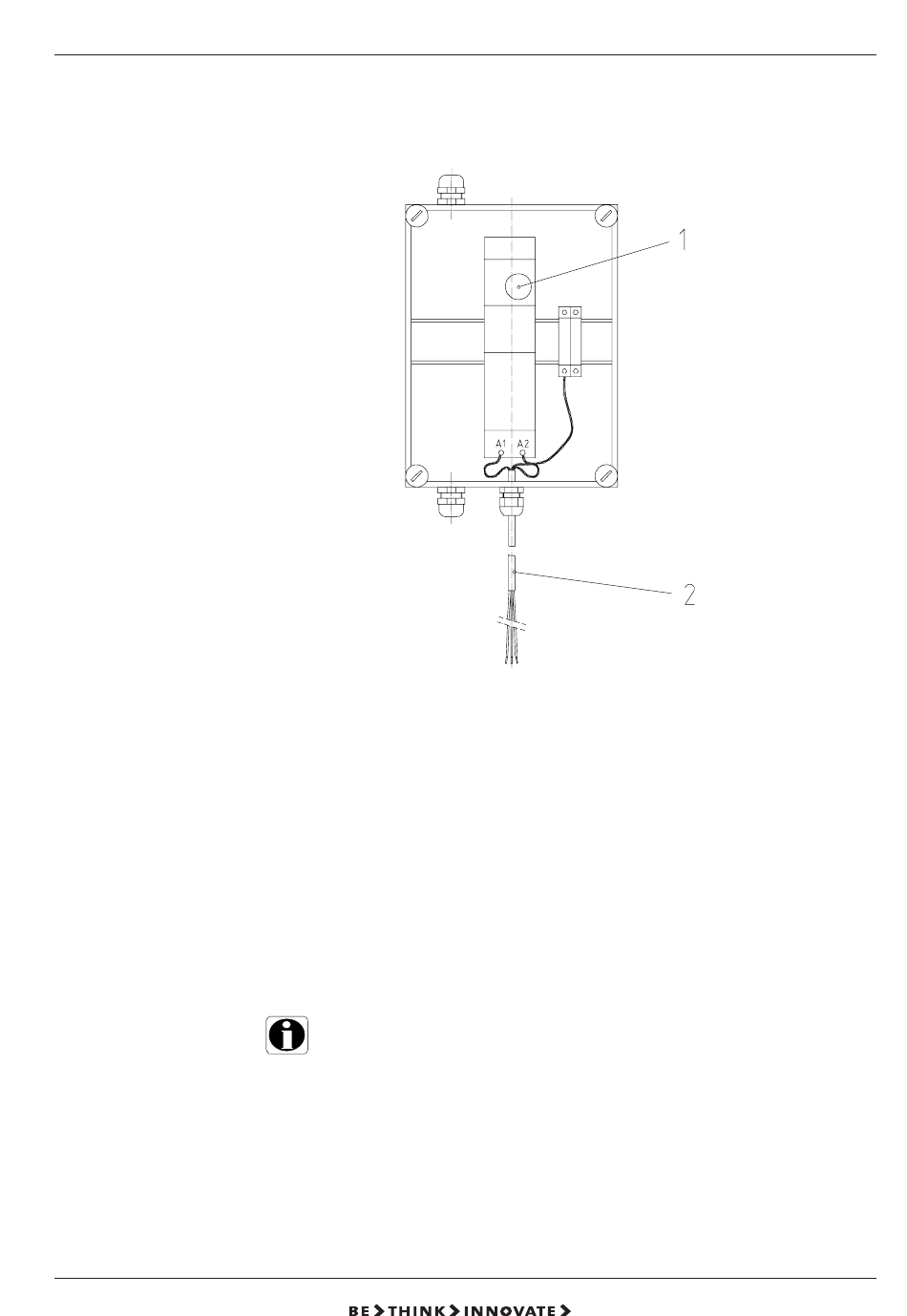

Item 1 Motor circuit-breaker
The respective rated current of the used pump must be set on the motor circuit-
breaker (see data sheet for booster pump).
Item 2 Cable
Connect the load unit to the controller of the Oxiperm C164 using the following
terminals:
Terminal 22 (L)
Terminal 23 (N)
Terminal 24 (PE)
NOTE If an Oxiperm system with bypass line for external
booster pump is selected, then the following allocation
table must be considered for the selection of the load
unit.
