28.3.1.4. Viewing Results

The Spectrum Analyzer results are plotted on the graph as well as displayed in the
Results table (to access the Results table simply click the Results tab). The
following measurements are displayed:
Average received signal strength (RSSI) per frequency (plotted white line on the
graph)
Maximum hold received signal strength (RSSI) per frequency (plotted yellow
line on the graph)
Distance (in spectrum RF) that the BSR/PPR can establish a viable communication
link with another transmitter. This is displayed in the TxRxOffset field.
Interference of
–70 dBm at
2,445 MHz

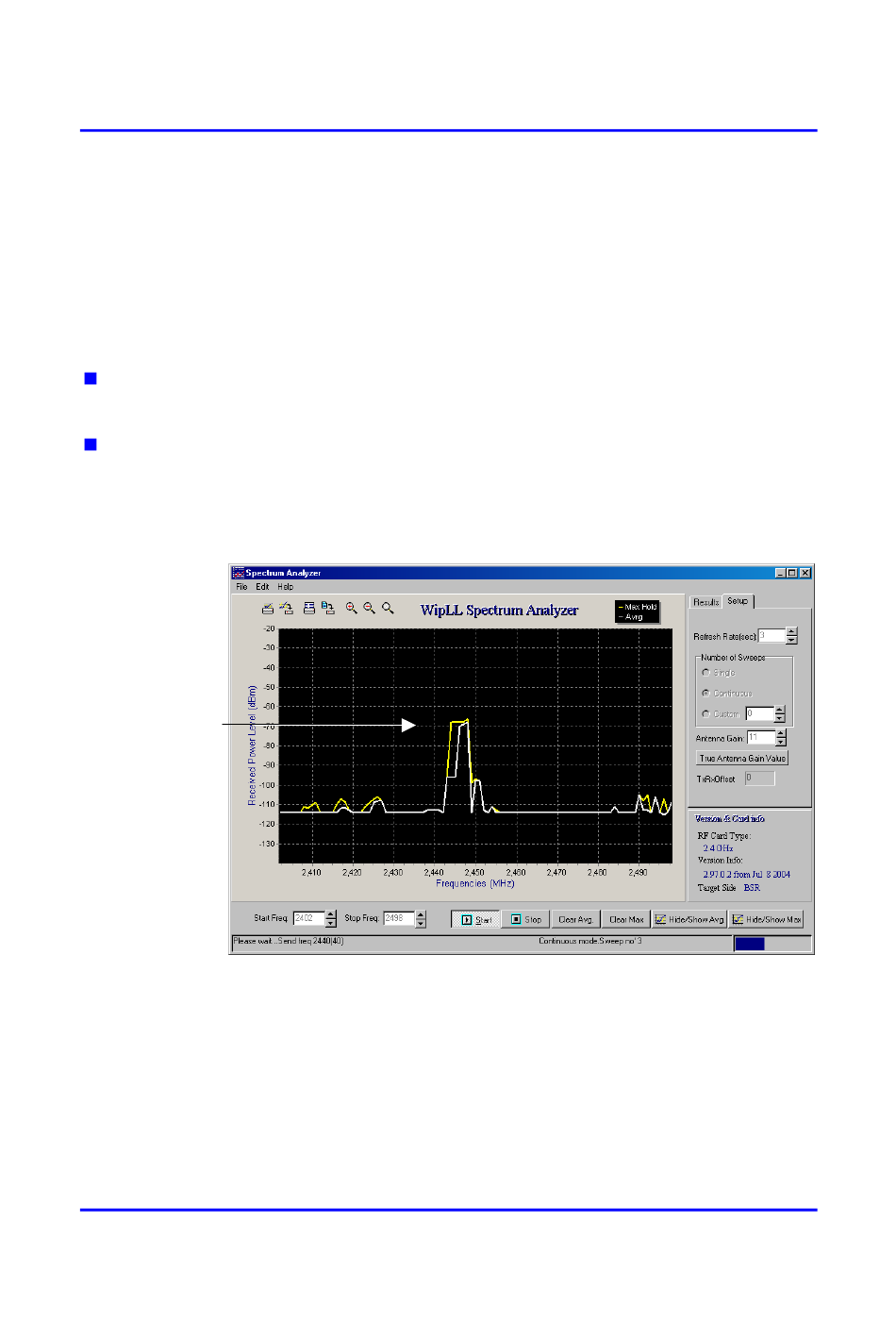

Figure 28-3: WipConfig's spectrum analyzer showing peak interference of -70 dBm
01040311-07
Airspan Networks Inc.
E va l u a t i n g L i n k Q u a l i t y
28-9
