C o m m i s s i o n i n g M a n u a l E s t a b l i s h i n g B S R - S P R L i n k w i t h Au t o C o n n e c t
When WipManage locates the SPR's Ethernet MAC address in the database, the
SPR device disconnects from BSR 10.0.0.10 (i.e. the AutoConnect SPR index 65
loses connection), and then the SPR device reconnects to the BSR (e.g. 10.0.0.10)
with the defined fixed SPR (i.e. SPR index 2) containing the SPR's Ethernet MAC
address. The figure below displays the fixed Redirection SPR index 2 icon to which
the redirected SPR device connects in the BSR.

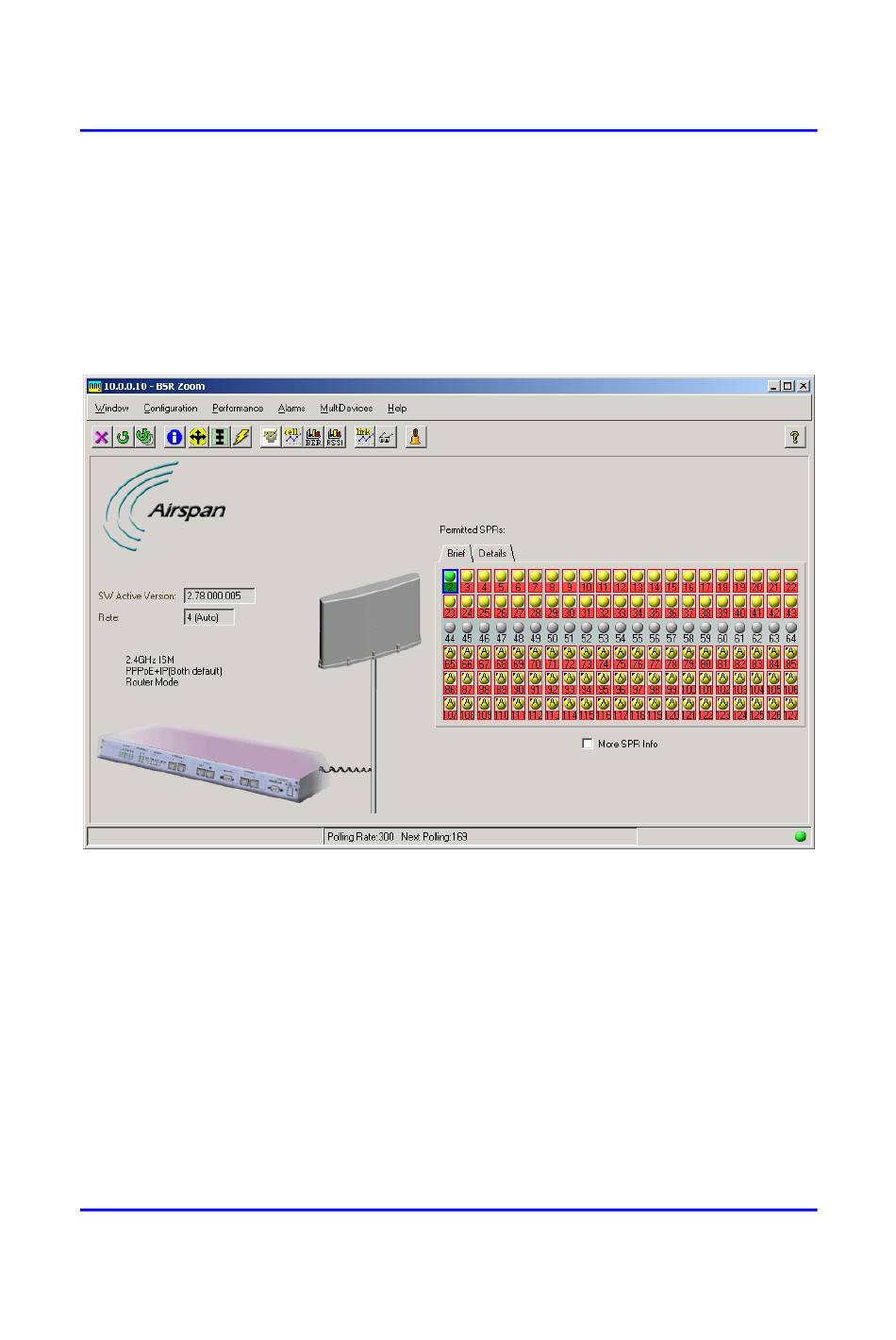

Figure 8-35: SPR redirected to BSR (fixed SPR index 2)
