C o n f i g u r i n g a R e p e a t e r S o l u t i o n
2. In the Static Routing Table, click Add. The Static Route Table – Add dialog box
appears.

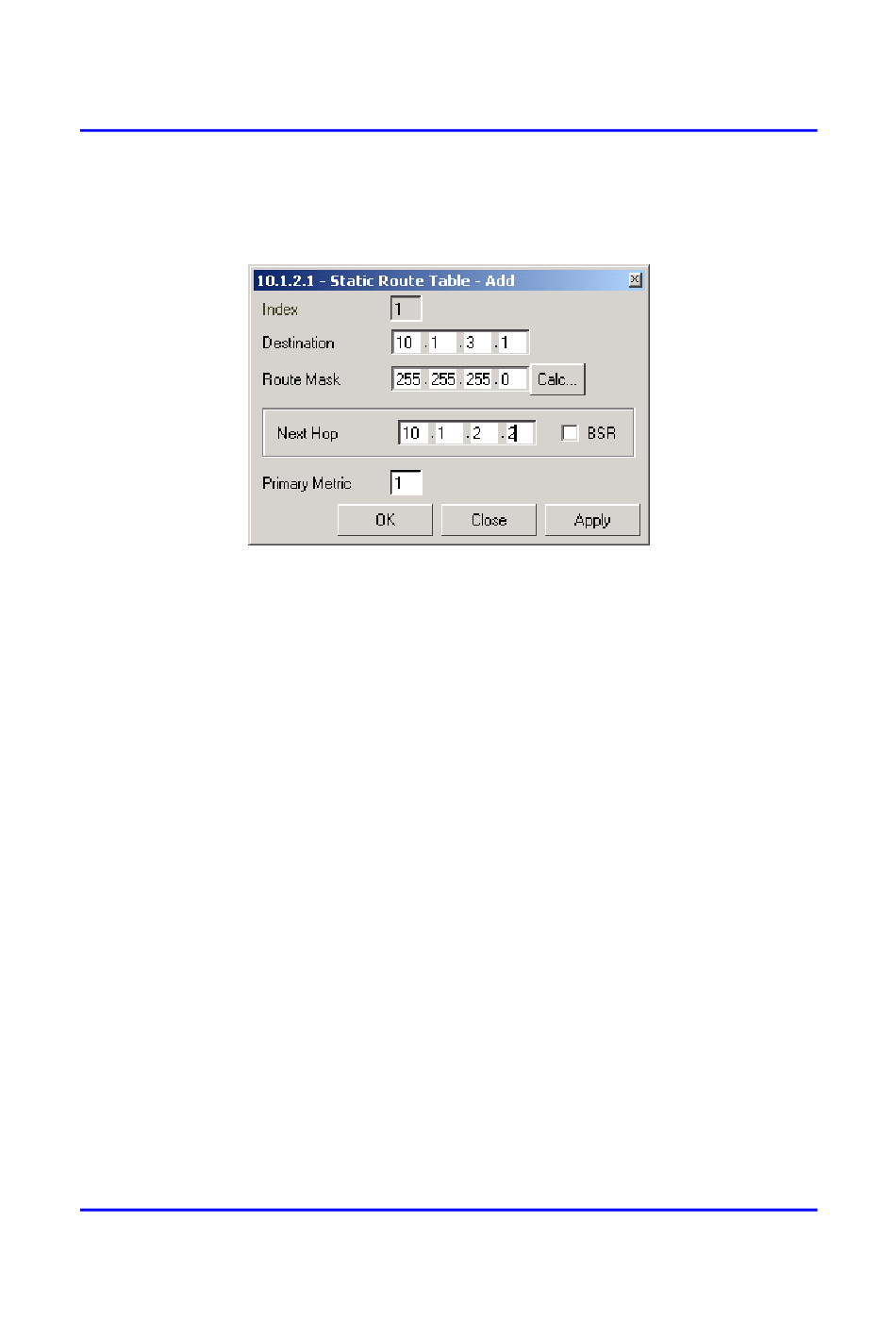

Figure 10-24: Adding routes for SPRs behind BSR-2 toward BSR-2
3. Add static routing entries:
a. In the Destination field, enter the IP address of SPR #2 (i.e. 10.1.3.1).
WipManage automatically calculates the correct destination route.
b. In the Route Mask field, enter the subnet mask of SPR #2.
c. For the Next Hop, enter the IP address of BSR-2 through which SPR-1 has
to route traffic in order to reach SPR-2.
