28.2.1. Measuring RSSI at SPR using WipConfig

RSSI measurements at the SPR are typically performed using WipConfig.
To measure RSSI at SPR using WipConfig:
1. Start WipConfig.
2. In the outlook bar, click the WipConfig tab.
3. Click the Statistics
RSSI graph

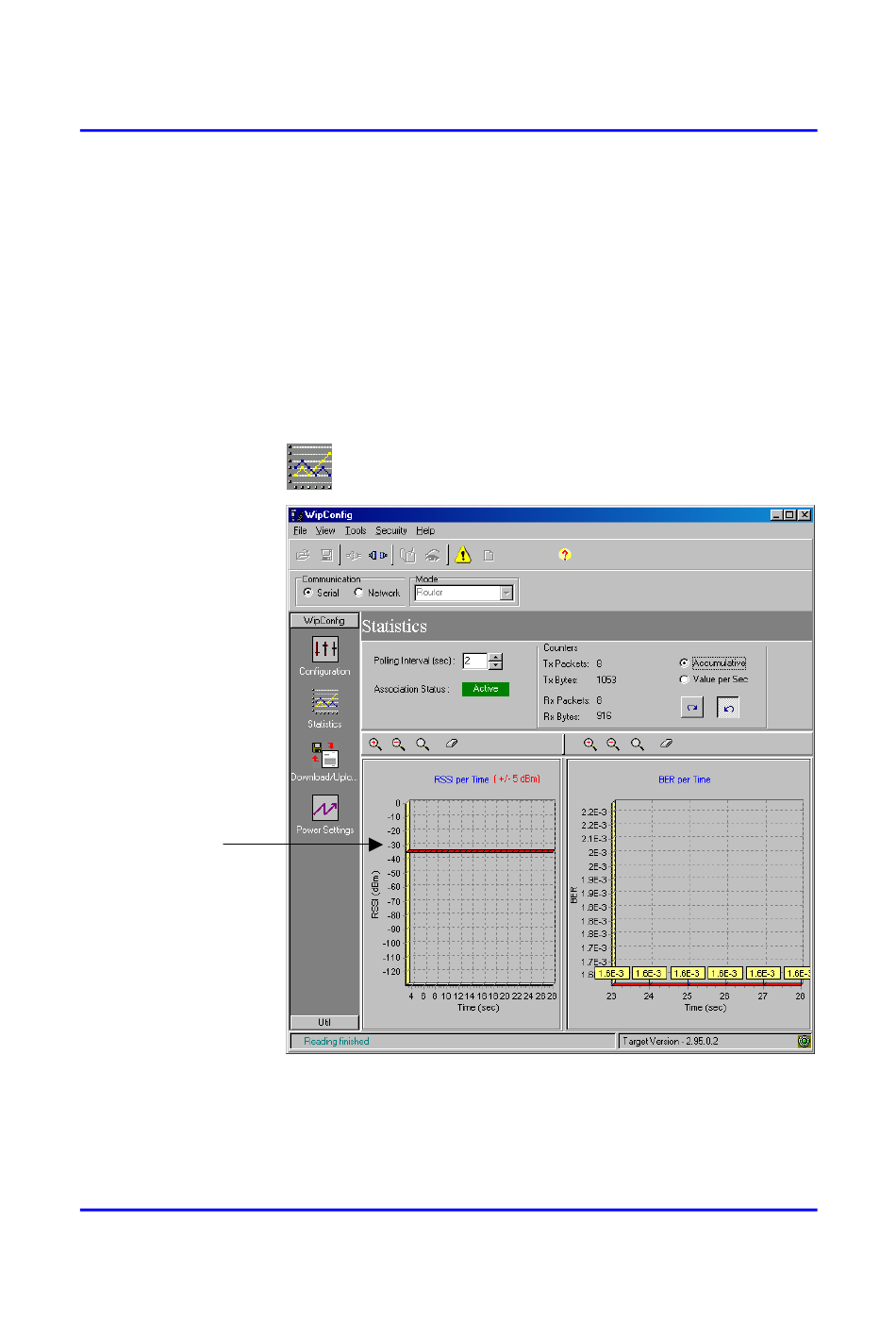

Figure 28-1: Statistics pane displaying RSSI graph
01040311-07
button. The Statistic pane appears, as displayed below.
