Note: The first IP address (i.e. Index #1) that appears in the Addresses
Table/802.1Q is defined in WipConfig when you define the BSR's IP address,
subnet mask, and default gateway. These can only be edited or deleted using
WipConfig (refer to the WipConfig User's Guide).

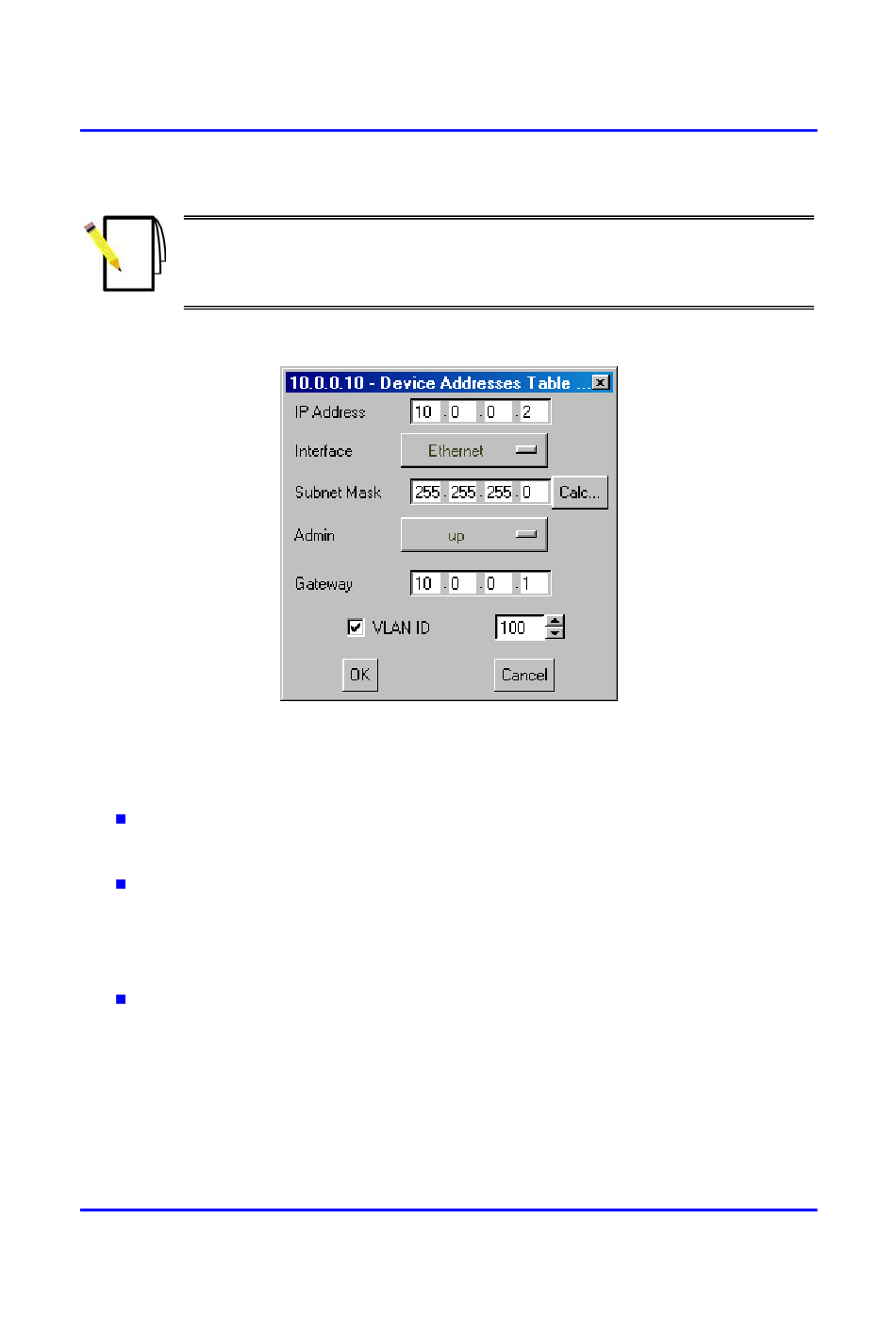

2. Click Add. The Device Addresses Table dialog box appears, as shown below.
3. Fill in the following fields, as shown in the figure above:
IP Address: IP address of the BSR's logical network interface (e.g.
10.0.0.2).
Interface: defines the type of connection (e.g. Ethernet) used for the
interface between the BSR and the other component. If there is only one
interface protocol, this selection remains grayed. Otherwise, from the drop-
down list, select an interface.
Subnet Mask: subnet address of the BSR's logical network interface (e.g.
255.255.255.0).
