Airspan ASWipLL Commissioning Manual page 549

C o m m i s s i o n i n g M a n u a l
5. Click Swap Banks to transfer the downloaded file from the SPR's Standby
software bank to the Active software bank.
The Reset dialog box appears, as displayed in Figure 27-13.
6. Select the Match Data check box, and then click Yes to swap banks and reset
the SPR.
The Device Reset message box appears, as displayed below.
01040311-07

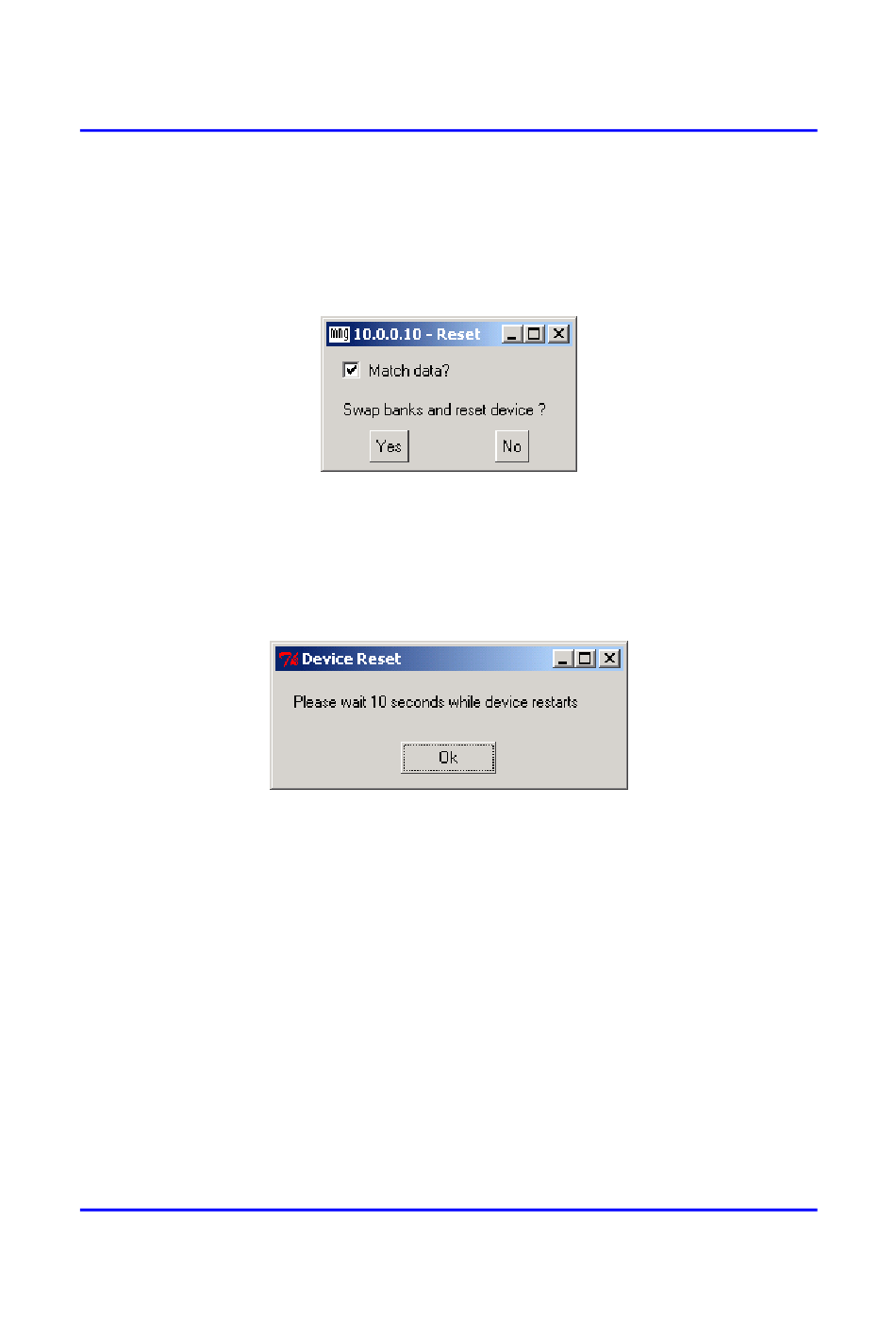

Figure 27-13: Reset dialog box
Figure 27-14: Device Reset message box
Airspan Networks Inc.
U p g r a d i n g AS W i p L L D e vi c e s
27-17
