Task 2: Reset The Bsr - Airspan ASWipLL Commissioning Manual

D e f i n i n g P P P o E
2. Select the PPPoE Enabled option.
3. Click OK.

17.2.3. Task 2: Reset the BSR

After you have selected the PPPoE Enabled option, you need to reset the BSR for
the PPPoE mode to take effect.
To reset the BSR:
1. In the BSR Zoom window, from the Configuration menu, choose Reset.
The Reset confirmation box appears, as displayed below.
2. Click Yes to confirm resetting the device.
The Device Reset message box appears, as displayed below.
3. Click OK to reset the device.
17-6

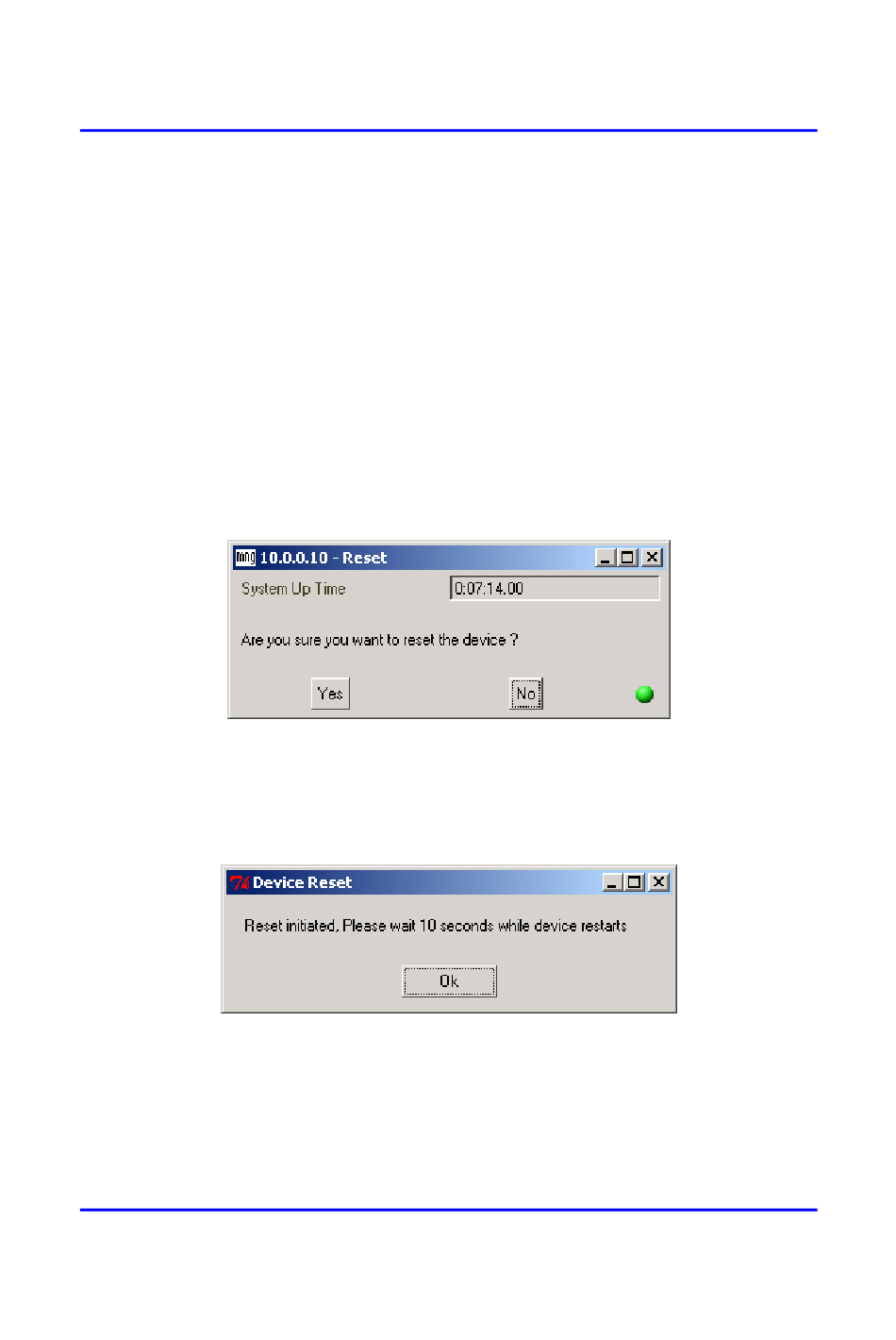

Figure 17-5: Reset confirmation box
Figure 17-6: Device Reset message box
Airspan Networks Inc.
C o m m i s s i o n i n g M a n u a l
01040311-07
