M a n a g i n g T r a p s
25.6. Enabling Pop-up Notifications and
Execution of Batch Files on Trap Receipt
WipManage allows you to enable displays of pop-up windows to notify you of
receipt of specific traps from specific ASWipLL devices. In addition, WipManage
allows you to select any batch or executable file (i.e. *.bat or *.exe files) that
automatically runs when a specific trap is received. This is useful, for example, if
you have a batch file that sounds an alarm on your PC when a trap is received.
To enable pop-up notifications and/or file executions on trap receipt:
1. In the WipManage main window, from the Tool menu, choose Alarm
Management. The Alarm Management Configuration dialog box appears.

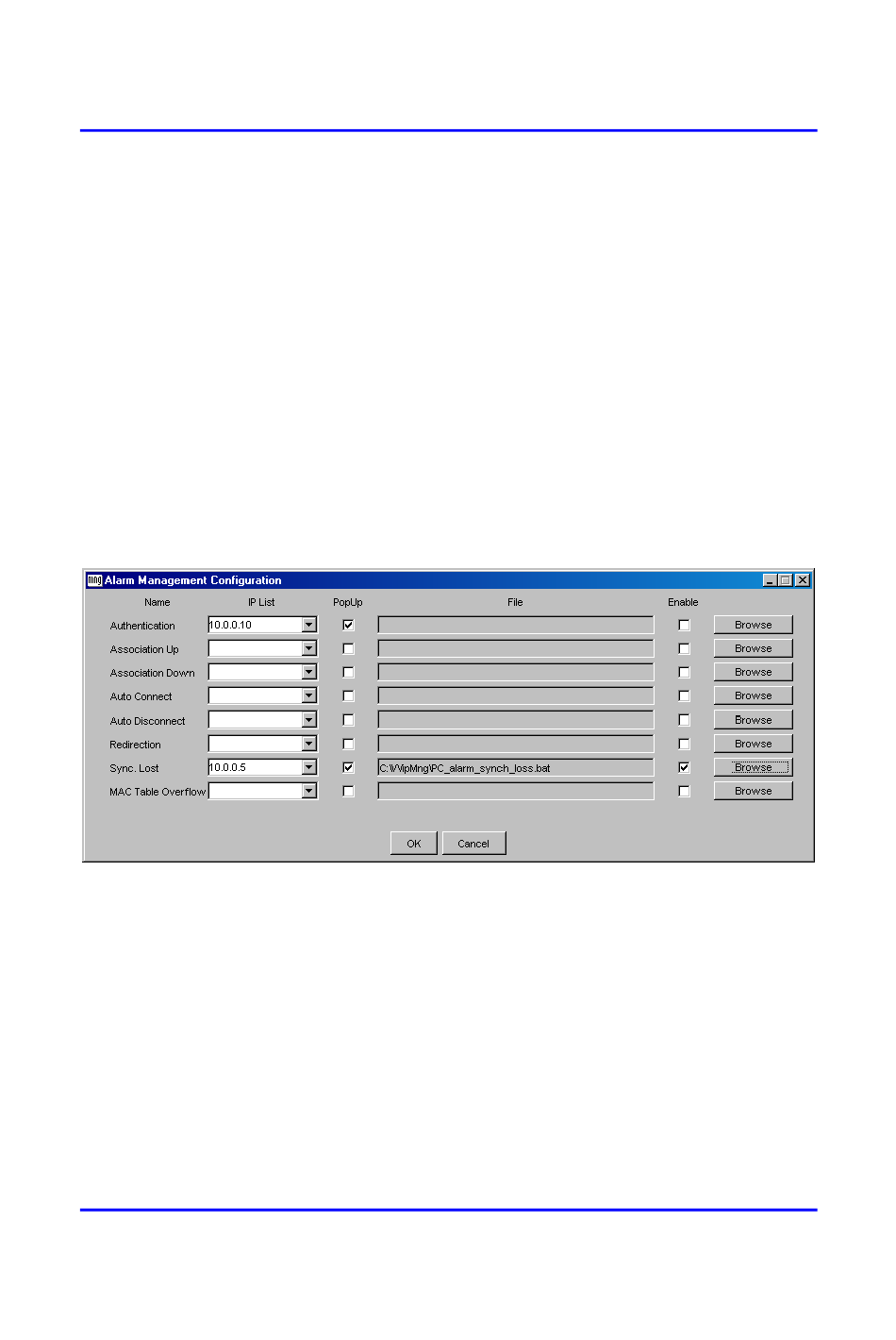

Figure 25-6: Alarm Management Configuration dialog box
2. In the IP List field corresponding to the desired trap name, enter the IP address
of the ASWipLL device, and then press the <Enter> key.
3. To enable a pop-up window to notify that the trap was generated by the
ASWipLL device, select the PopUp check box that corresponds to the trap
name.
