Airspan ASWipLL Commissioning Manual page 302

C o n f i g u r i n g a R e p e a t e r S o l u t i o n
2. In the Static Routing Table dialog box, click Add. The Static Route Table – Add
dialog box appears.
a. In the Destination field, enter the IP address of SPR #2 (i.e. 10.1.3.1).
WipManage automatically calculates the correct destination route.
b. In the Route Mask field, enter the subnet mask of the SPR #2.
c. For the Next Hop, select the SPR check box, and then select the SPR index
number (i.e. 2) for which SPR #1 is defined. This indicates that for BSR #1
to reach SPR #2, it must route through SPR #1.
10-20

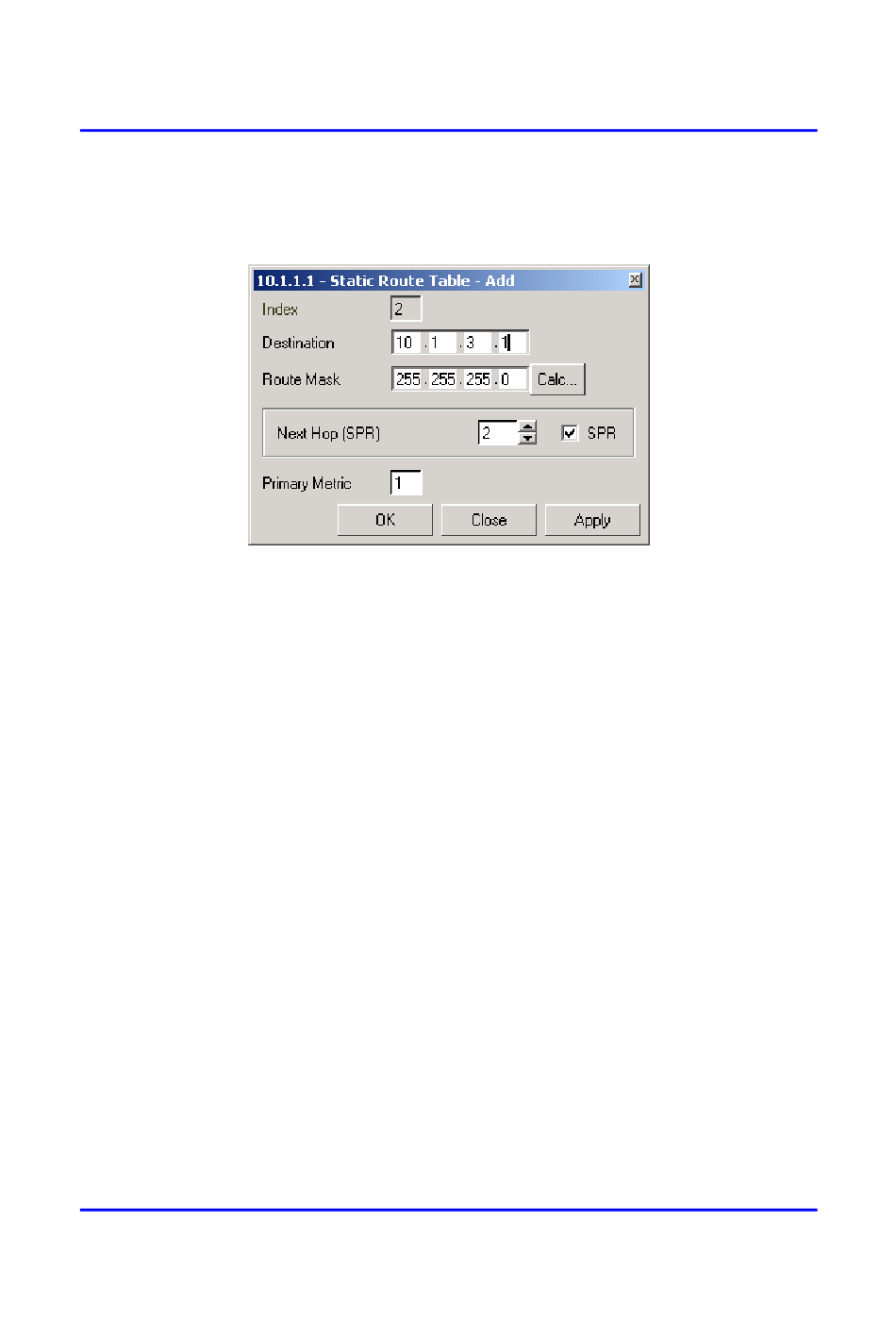

Figure 10-20: Defining routing entry
Airspan Networks Inc.
C o m m i s s i o n i n g M a n u a l
01040311-07
