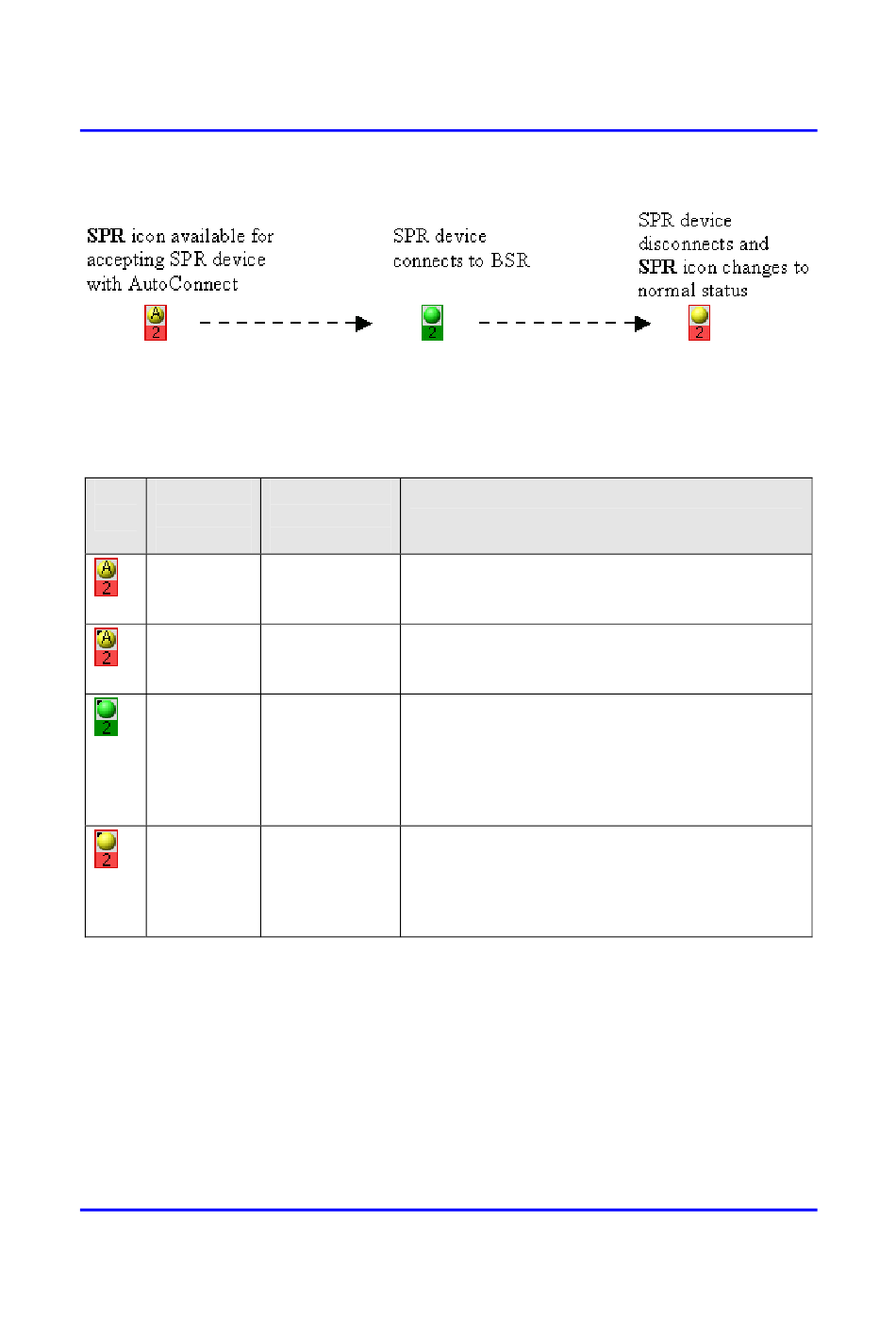

Figure 8-54: Connected and disconnected SPR icon configured for AutoConnect
Table 8-1 provides a summary of the color-coding of the AutoConnect SPR icons.
Table 8-1: Description of status of AutoConnect SPR icons
SPR Air link
icon (color of
circle)
Yellow with
"A"
Yellow with
"A" and
triangle
Green with
triangle
Yellow with
triangle
01040311-07
E s t a b l i s h i n g B S R - S P R L i n k w i t h Au t o C o n n e c t
Network link
(color of
rectangle)
Red SPR icon defined for AutoConnect (without
Disconnect) and available for accepting an SPR
device connecting to BSR via AutoConnect.
SPR icon defined for AutoConnect with
Red
AutoDisconnect is available for accepting an SPR by
AutoConnect.
Green SPR icon defined for AutoConnect with
AutoDisconnect, has an SPR device connected to it
with air link with BSR, and IP routing link with PC
running WipManage. The SPR that is connected to
this icon may be connected by AutoConnect or
regular means.
Red SPR icon defined for AutoConnect with
AutoDisconnect in the BSR has lost connection with
SPR device and is undergoing AutoDisconnect (see
Section 8.3.5, "Task 4: Define AutoDisconnect
Interval").
